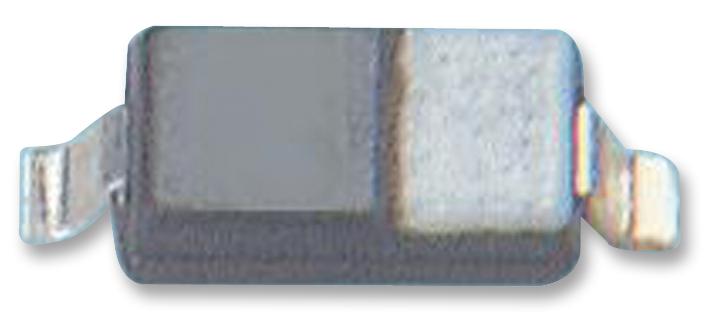

ONSEMI SBAS16HT1G Switching Diode
The SBAS16H is a low-forward voltage, high-speed switching diode designed for automotive and industrial applications. It features a maximum reverse voltage of 100 V and a peak forward surge current of 500 mAdc. This Pb-Free, halogen-free device offers fast recovery time, low leakage current, and excellent thermal performance. Packaged in SOD-323, it’s suitable for compact circuit designs, providing reliable, high-efficiency switching performance in various electronic systems, including automotive control units and power management modules.
ONSEMI SBAS16HT1G Switching Diode Specifications:
- Maximum Reverse Voltage: 100 V
- Peak Forward Surge Current: 500 mAdc
- Repetitive Peak Forward Current: 1.0 A
- Total Device Dissipation: 200 mW
- Thermal Resistance Junction to Ambient: 635 °C/W
- Storage Temperature Range: -55°C to 150°C
- Forward Voltage: 718 to 1250 mV at 1.0-150 mAdc
- Reverse Leakage Current: 1.0 to 50 µA at 100 V
- Diode Capacitance: 2.0 pF
- Recovery Time: 6.0 ns
- Package: SOD-323
Buy the ON Semiconductor SBAS16HT1G – Reliable Switching Diode for Industrial Applications
Purchase the SBAS16HT1G switching diode online, a high-quality component ideal for automotive, power management, and industrial electronic systems. This diode ensures efficient switching with a maximum reverse voltage of 100 V and a peak surge current of 500 mAdc, providing reliable performance under demanding conditions. Its Pb-Free, halogen-free construction supports eco-friendly designs. Packaged in compact SOD-323, it’s perfect for space-constrained applications, delivering fast recovery times, low leakage current, and excellent thermal management for enhanced system durability and efficiency.
Get ON Semiconductor SBAS16HT1G today—built for high-speed switching and long-lasting reliability in automotive and industrial systems.
