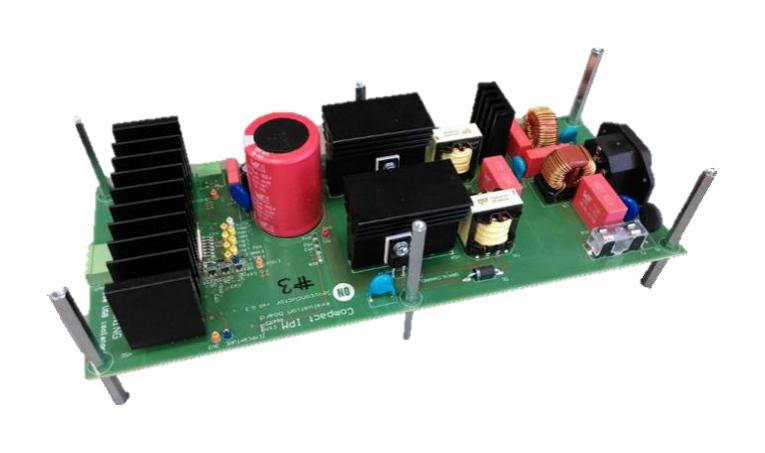

ONSEMI SECO1KWMDKGEVK Motor Control Kit
This compact motor control development kit features an interleaved power factor correction stage, a 3-phase inverter, and a high-performance IPM for evaluating high-end motor drive applications. Compatible with FPGA-based controllers based on Xilinx Zynq-7000 SoC, it supports various motor types such as AC induction, PMSM, and BLDC. The kit includes an auxiliary power supply, over-current protection, and interfaces for rapid testing of control strategies like V/F and FOC. Designed for laboratory functional testing by trained personnel, it provides a reliable platform for advanced motor control development.
ONSEMI SECO1KWMDKGEVK Motor Control Kit Specifications:
- Power output: 850 W
- Input Voltage: 230 Vrms ±15%
- Power Stage: 3-phase inverter with IPM module
- Supports various motors: AC induction, PMSM, BLDC
- Power Supply: 15 V auxiliary output, max 4.6 W
- Control: FPGA-based Xilinx Zynq-7000, supports V/F and FOC
- Protection: Over-current, fault pin, and fault feedback
- Dimensions: 280 x 112 mm, 4-layer PCB
- High voltage: AC mains powered, designed for laboratory testing
- Interfaces: USB, control headers, isolated communication
- Features: EMI filter, capacitor protection, thermistor
Buy the ON Semiconductor F7800K – Reliable Motor Control Kit for Industrial Applications
Upgrade your motor drive testing capabilities with this professional motor control development kit featuring advanced power stage, FPGA control, and protective features. Perfect for engineers and researchers focusing on high-end motor applications, the kit offers rapid evaluation of control algorithms like FOC and V/F, ensuring precise motor management. With its comprehensive interfaces, safety protections, and compatibility with industry-standard controllers, this kit is your ideal solution for laboratory development, optimization, and validation of electric motor drives.
Buy ON Semiconductor F7800K now and experience unmatched reliability and performance in motor control testing and development.
Frequently Asked Questions
Where can I buy ONSEMI SECO1KWMDKGEVK?
You can click on the BUY or RFQ button to purchase SECO1KWMDKGEVK from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part SECO1KWMDKGEVK?
You can download the SECO1KWMDKGEVK datasheet or visit the ONSEMI website for support.
Who is the manufacturer of SECO1KWMDKGEVK?
ONSEMI
