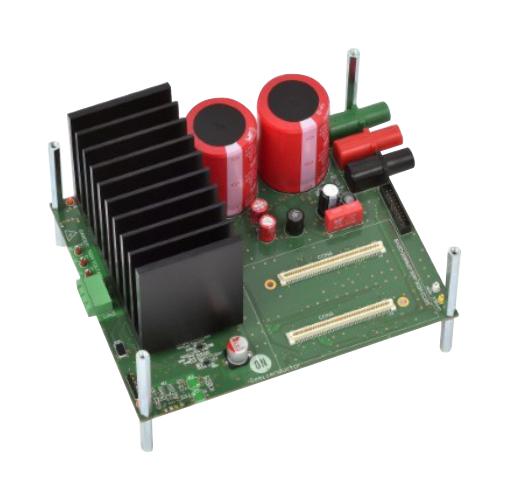

ONSEMI SECOMDK4KW65SPM31GEVB Industrial Motor Drive Board
The SECO-MDK-4KW-65SP M31-GEVB is a sophisticated three-phase motor development board designed for industrial applications. It features the NFAM5065L4B Intelligent Power Module rated for 650 V and 50 A, enabling continuous power exceeding 1 kW and short-term peaks up to 4 kW. The system supports a variety of motor technologies like AC induction, PMSM, and BLDC, and integrates with a high-performance Xilinx Zynq-7000 SoC FPGA and dual Arm Cortex-A9 processors. It includes comprehensive sensing, protection, and interface options for precise motor control, ideal for automation, industrial fans, and semiconductor equipment.
ONSEMI SECOMDK4KW65SPM31GEVB Industrial Motor Drive Board Specifications:
- Power Module: NFAM5065L4B 650 V/50 A
- Input Voltage: 400 Vdc, up to 410 Vdc
- Power Output: Continuous over 1 kW, short-term up to 4 kW
- Controller: Xilinx Zynq-7000 SoC FPGA with dual ARM Cortex-A9 cores
- Motor Compatibility: AC induction, PMSM, BLDC
- Protection: Over-current protection, fault and thermal sensing
- Current Measurement: 3 x NCS20166 operational amplifiers with 10 mΩ shunt resistors
- Voltage Measurement: Resistive voltage divider for inverter and DC-link voltage
- Connectivity: Encoder interface for 3-HALL sensors or quadrature encoder, digital I/O, PWM, ADC
- Interfaces: USB isolation, high-power dc input, three-phase high-voltage output connectors
- Integrated Components: EEPROM CAT24C512, thermistor, voltage regulators for auxiliary power supplies
- Design Features: Spacious layout for measurement and probing, user-friendly GUI for control
- Applications: Industrial motor control, automation, semiconductor manufacturing, industrial fans
Buy the Buy ON Semiconductor Motor Development Kit Part Number SECOMDK4KW65SPM31GEVB Online
Enhance your industrial motor control projects with the ON Semiconductor Motor Development Kit, featuring a robust 650V 50A IGBT power module and FPGA-based control system. This versatile development board supports various motor types like AC induction, PMSM, and BLDC, making it suitable for automation, manufacturing, and high-performance applications. With integrated sensing, protection, and user-friendly GUI, it simplifies rapid testing and evaluation. Purchase this advanced, high-power motor driver online today for efficient, reliable industrial control solutions.
Get ON Semiconductor Motor Development Kit SECOMDK4KW65SPM31GEVB today—engineered for high-power industrial applications with reliable control and protection.
Frequently Asked Questions
Where can I buy ONSEMI SECOMDK4KW65SPM31GEVB?
You can click on the BUY or RFQ button to purchase SECOMDK4KW65SPM31GEVB from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part SECOMDK4KW65SPM31GEVB?
You can download the SECOMDK4KW65SPM31GEVB datasheet or visit the ONSEMI website for support.
Who is the manufacturer of SECOMDK4KW65SPM31GEVB?
ONSEMI
