ONSEMI SESD7L50DT5G ESD protection diode
The SESD7L series is designed to protect sensitive electronic components from electrostatic discharge (ESD) events, offering ultra-low capacitance of 0.5 pF suitable for high-speed and RF signal lines. Its small SOT-723 package features a low profile and compact footprint, making it ideal for board space-constrained applications like USB2.0 high-speed interfaces and antenna connections. With excellent clamping capability, fast response time under 1 ns, and compliance with IEC61000-4-2 Level 4 ESD protection standards, the SESD7L series ensures reliable circuit protection in automotive and consumer electronics.
ONSEMI SESD7L50DT5G ESD protection diode Specifications:
- Capacitance: 0.5 pF typical
- Peak Reverse Voltage: 5 V
- Response Time: < 1.0 ns
- Body Dimensions: 0.047” x 0.047” (1.20 mm x 1.20 mm)
- Body Height: 0.020” (0.5 mm)
- Stand-off Voltage: 5 V
- Leakage Current: Low
- Maximum Peak Pulse Current: 10 A
- Clamping Voltage: Max 5.4 V at Ipp=1A
- Temperature Range: -85°C to +150°C
- Maximum Power Dissipation: 150 mW
- IEC61000-4-2 Level 4 ESD Protection (8 kV contact)
- Reflow Temperature: 260°C maximum
- Package: SOT-723 case 631AA
- Lead Finish: 100% Matte Sn
- Device Meets MSL 1 requirements

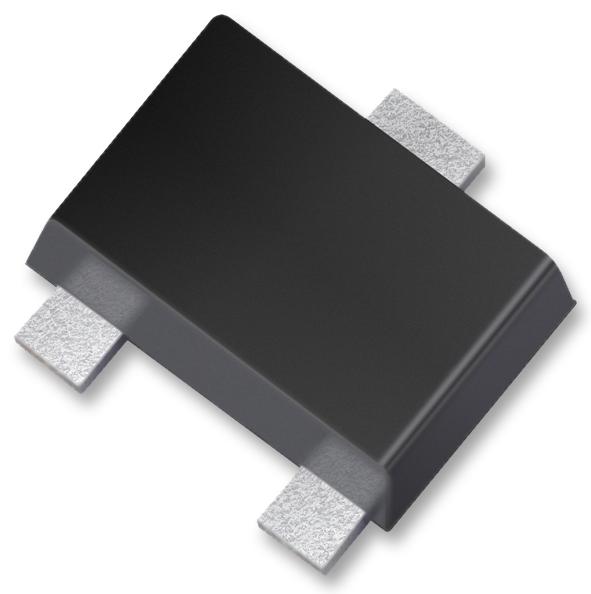

Buy the ON Semiconductor Series SESD Protective Diode: SESD7L50DT5G
Secure your sensitive circuits with the ultra-low capacitance SESD7L series diode from ON Semiconductor. Its compact SOT-723 package offers fast response, excellent clamping, and complies with IEC61000-4-2 Level 4 standards. Perfect for high-speed data lines like USB2.0 and RF applications, this device ensures robust ESD protection. Easy to integrate into space-constrained designs, it guarantees signal integrity and long-term reliability while withstanding harsh static discharges. Purchase online today for dependable circuit protection and peace of mind.
Buy ON Semiconductor SESD7L50DT5G now and experience unmatched reliability and performance for high-speed ESD protection.
Frequently Asked Questions
Where can I buy ONSEMI SESD7L50DT5G?
You can click on the BUY or RFQ button to purchase SESD7L50DT5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part SESD7L50DT5G?
You can download the SESD7L50DT5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of SESD7L50DT5G?
ONSEMI
