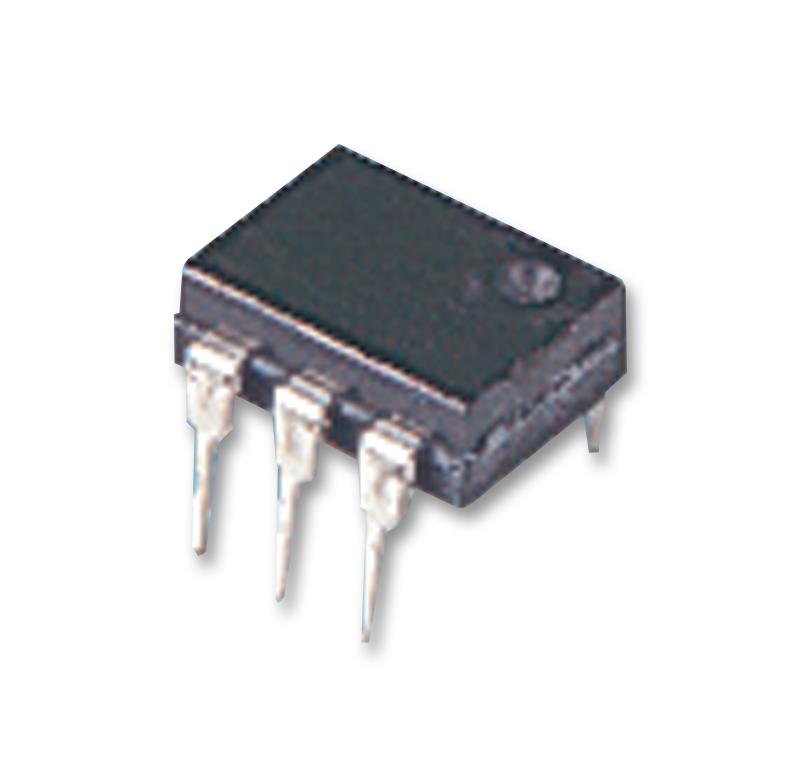

ONSEMI TIL117M Optocoupler
The TIL117M is a single-channel, 6-pin optocoupler consisting of a gallium arsenide infrared LED and a silicon phototransistor. It is used for digital logic input interfaces, microprocessor inputs, and industrial control applications. The device features a maximum working insulation voltage of 850V, a high allowable overvoltage of 6000V, and operates within a temperature range of -40°C to +100°C. Suitable for power management, sensing, instrumentation, and industrial applications.
ONSEMI TIL117M Optocoupler Specifications:
- Maximum working insulation voltage: 850 Vpeak
- Maximum overvoltage: 6000 Vpeak
- Insulation resistance at 500 V: 10^9 Ω
- Insulation thickness: 0.5 mm
- External creepage and clearance: 7 mm
- Operating temperature range: -40°C to +100°C
- Storage temperature: -40°C to +150°C
- Lead solder temperature: 260°C for 10 sec
- Total device power dissipation at 25°C: 250 mW
- Collector-Emitter Voltage: 30 V
- Collector-Base Voltage: 70 V
- Emitter-Collector Voltage: 7 V
- Emitter-Base Voltage: 7 V
- DC forward input current: 60 mA
- LED forward voltage (at 16 mA): 1.2 to 1.4 V
- Collector-Emitter saturation voltage: approximately 0.4 V at 1 mA
- Turn-on time: approximately 20 μs
- Turn-off time: approximately 20 μs
- Isolation voltage: 7500 V (input-output)
- Capacitance between input and output: 0.2 pF
