ONSEMI UESD60DT5G ESD Protection Diode
The UESD60DT5G series features ultra-small ESD protection diodes in a compact SOT-723 package, designed to shield sensitive components from electrostatic discharge. With a stand-off voltage of 6.0 V, these devices offer excellent clamping, low leakage, and fast response times typically under 1 nanosecond. They are IEC61000-4-2 Level 4 rated for ESD protection, high immunity to EFT, and are qualified under AEC-Q101, making them suitable for portable, cellular, and digital applications requiring space-saving solutions.
ONSEMI UESD60DT5G ESD Protection Diode Specifications:
- Package: SOT-723 (CASE 631AA)
- Body Dimensions: 0.047” x 0.032” (1.20 mm x 0.80 mm)
- Body Height: 0.020” (0.5 mm)
- Stand-off Voltage: 6.0 V
- Maximum ESD Rating: > 16 kV (Human Body Model)
- IEC61000-4-2 Level 4 ESD Protection
- IEC61000-4-4 Level 4 EFT Protection
- Leakage Current: Low
- Response Time: < 1 ns
- Maximum Total Power Dissipation: 240 mW
- Operating Temperature Range: -55°C to +150°C
- Device Meets MSL 1
- Lead Finish: Matte Sn (tin)
- Reflow Temperature: 260°C

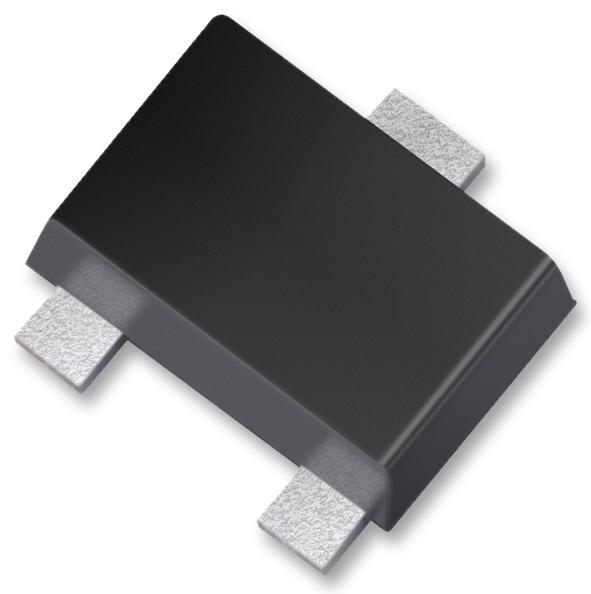

Buy the Buy ON Semiconductor ESD Protection Diode Part Number UESD60DT5G Online
Secure your sensitive circuits with the compact UESD60DT5G ESD protection diode, designed for space-constrained applications. These reliable, ultra-fast diodes feature low leakage, high ESD immunity at over 16 kV, and IEC Level 4 protection. Suitable for portable devices, cellular phones, and digital cameras, they ensure your products are protected against electrostatic discharge and electromagnetic interference. Easy to mount in any position, meeting industry standards, they are ideal for modern electronic designs demanding high performance and durability in minimal space.
Buy ON Semiconductor UESD60DT5G now and experience unmatched reliability and space-saving ESD protection for your portable electronics.
Frequently Asked Questions
Where can I buy ONSEMI UESD60DT5G?
You can click on the BUY or RFQ button to purchase UESD60DT5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part UESD60DT5G?
You can download the UESD60DT5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of UESD60DT5G?
ONSEMI
