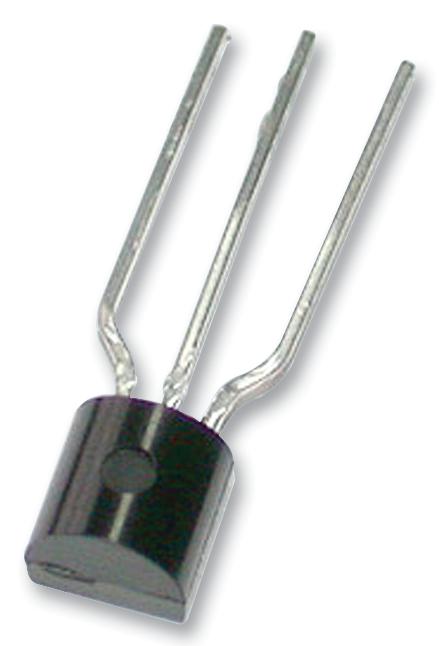

ONSEMI TL431AILPRAG Adjustable Voltage Reference
The TL431A series is a three-terminal adjustable shunt regulator IC with low temperature coefficient, widely used as a precise voltage reference in power supplies, digital voltmeters, and op amp circuits. Operating from Vref to 36 V with external resistors, it features low dynamic impedance, a temperature coefficient of 50 ppm/°C, and low output noise. Available in multiple packages such as TO-92, SOIC-8, and PDIP-8, these devices are Pb-Free, RoHS compliant, and suitable for automotive and industrial applications requiring reliable voltage regulation.
ONSEMI TL431AILPRAG Adjustable Voltage Reference Specifications:
- Operating Voltage: Vref to 36 V
- Reference Voltage: 2.495 V (Typ at 25°C)
- Temperature Coefficient: 50 ppm/°C (Typ)
- Dynamic Impedance: 0.22 Ω (Typ)
- Sink Current Range: 1.0 mA to 100 mA
- Operating Current: 1.0 mA to 100 mA
- Package Options: TO-92, SOIC-8, PDIP-8
- Operating Temperature Range: -40°C to +125°C (varies by model)
- Device Tolerance: ±0.4% (Typ)
- Power Dissipation: 0.70 W (D-TO-92), 1.10 W (P-TO-92), 0.52 W (DM-TO-226)
- Compliance: RoHS, Pb-Free, Halogen Free, AEC-Q100 qualified
- Applications: Power supplies, voltage monitor, feedback control, constant current sources
- Storage Temperature Range: -65°C to +150°C
Buy the ON Semiconductor Series TL431 Adjustable Voltage Reference: TL431AILPRAG
Purchase the ON Semiconductor TL431AILPRAG today for high-accuracy voltage regulation in power supplies, instrumentation, and control systems. This versatile adjustable shunt regulator operates from Vref up to 36 V, providing low dynamic impedance, excellent temperature stability, and low noise. Its compact packages like TO-92, SOIC-8, and PDIP-8 ensure easy integration into various electronic designs. Ideal for automotive, industrial, and consumer electronic applications requiring reliable voltage reference solutions, the TL431A delivers consistent performance and long-term stability when ordered online.
Buy ON Semiconductor TL431AILPRAG now and experience unmatched reliability and performance in precise voltage regulation.
Frequently Asked Questions
Where can I buy ONSEMI TL431AILPRAG?
You can click on the BUY or RFQ button to purchase TL431AILPRAG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part TL431AILPRAG?
You can download the TL431AILPRAG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of TL431AILPRAG?
ONSEMI
