ONSEMI TL431BVDR2G Programmable Voltage Reference
The TL431BVDR2G is a high-performance programmable shunt voltage reference with a wide output voltage range up to 36 V. Designed for precise voltage regulation, it features low dynamic impedance of 0.22 Ω, low noise, and excellent temperature stability, making it ideal for power supplies, digital voltmeters, and op-amp circuitry. The device is fully compliant with RoHS, halogen-free, and qualified for automotive applications with AEC-Q100 certification. Its compact packages include SOIC-8, PDIP-8, and TO-92, suitable for various circuit board designs and industrial environments.
ONSEMI TL431BVDR2G Programmable Voltage Reference Specifications:
- Maximum Cathode to Anode Voltage: 37 V
- Reference Voltage Range: 2.5 V to 36 V
- Operating Current: 1.0 mA to 100 mA
- Dynamic Impedance: 0.22 Ω (typical)
- Temperature Range: -40°C to +125°C
- Package Options: SOIC-8, PDIP-8, TO-92
- Thermal Resistance, Junction-to-Ambient: 178 °C/W
- Thermal Resistance, Junction-to-Case: 83 °C/W
- Power Dissipation: 0.70 W (D, LP), 1.10 W (P), 0.52 W (DM)
- Qualification: AEC-Q100, RoHS, Halogen and BFR free

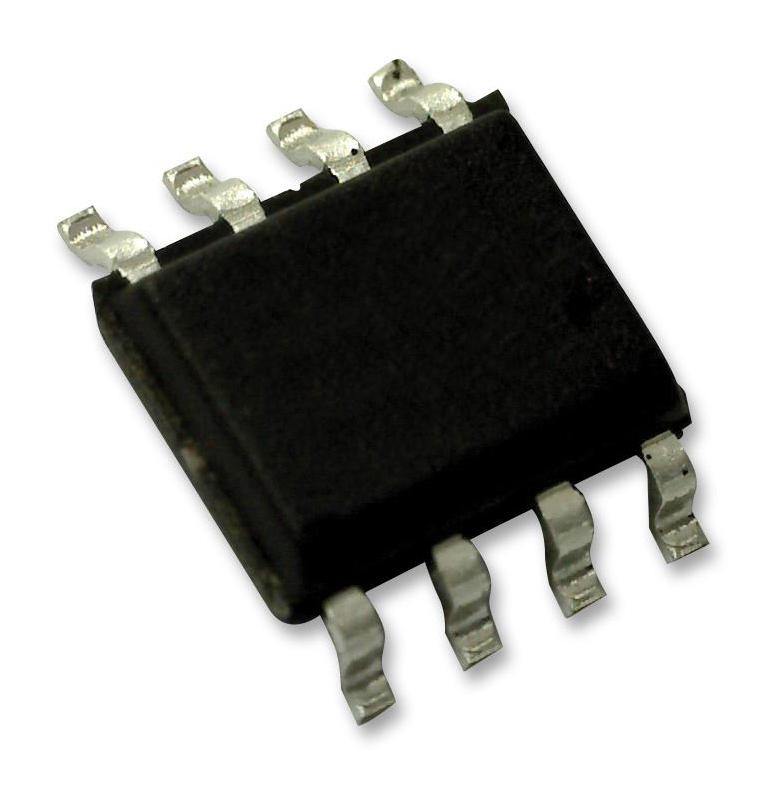

Buy the ON Semiconductor Series B TL431BVDR2G Programmable Precision References: TL431BVDR2G
Experience the superior stability and low noise performance of the ON Semiconductor TL431BVDR2G programmable voltage reference. Perfect for power supplies, digital voltmeters, and control circuits, its broad operating current range and wide temperature tolerance ensure reliable operation in industrial environments. With RoHS compliance and automotive qualification, this device offers flexibility in diverse applications. Available in compact packages like SOIC-8, PDIP-8, and TO-92, it ensures easy installation and excellent thermal performance for your precision voltage regulation needs.
Buy ON Semiconductor TL431BVDR2G now and experience unmatched accuracy and durability in voltage regulation for your industrial and electronics projects.
Frequently Asked Questions
Where can I buy ONSEMI TL431BVDR2G?
You can click on the BUY or RFQ button to purchase TL431BVDR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part TL431BVDR2G?
You can download the TL431BVDR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of TL431BVDR2G?
ONSEMI
