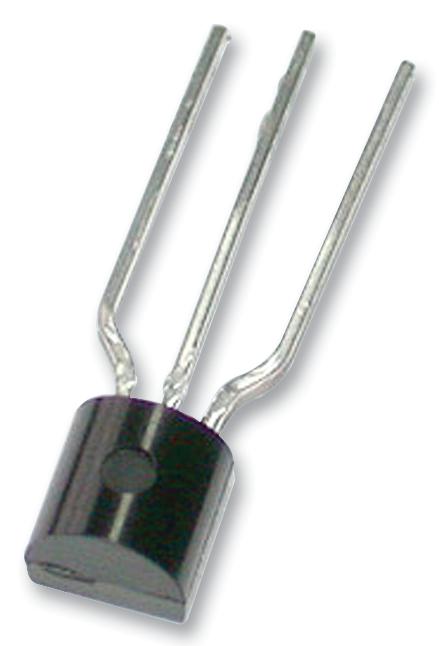

ONSEMI TLV431ALPRAG Precision Shunt Regulator
This precision low voltage adjustable shunt regulator series offers programmable output voltages from 1.24V to 16V, with high reference accuracy from 0.2% to 1.0%. Suitable for linear, switching power supplies, voltage monitoring, and replacing Zener diodes, these devices exhibit sharp turn-on characteristics, low dynamic impedance, and operate over a wide current range. Available in compact packages like TO-92, TSOP-5, and SOT-23, they are ideal for automotive, industrial, and digital circuits requiring precise voltage regulation and low voltage references.
ONSEMI TLV431ALPRAG Precision Shunt Regulator Specifications:
- Output Voltage Range: 1.24 V to 16 V
- Reference Accuracy: 0.2% (C Series), 0.5% (B Series), 1.0% (A Series)
- Dynamic Impedance: 0.20 Ω from 100 μA to 20 mA
- Operating Current Range: 50 μA to 20 mA
- Maximum Cathode to Anode Voltage: 18 V
- Reference Voltage at 25°C: 1.240 V (typical)
- Operating Temperature: -40°C to 85°C (standard), up to 125°C for automotive variants
- Packages: TO-92-3, TSOP-5, SOT-23-3
- AEC-Q100 Qualified, PPAP Capable
- Pb-Free and Halide-Free Device
Buy the ON Semiconductor TLV431ALPRAG – Reliable Precision Shunt Regulator for Industrial Applications
Order the ON Semiconductor TLV431ALPRAG today—designed for high accuracy and flexible voltage regulation in industrial and automotive applications. This low voltage adjustable shunt regulator provides reliable performance with excellent thermal stability, sharp turn-on characteristics, and low dynamic impedance. Available in compact packages like TO-92, TSOP-5, and SOT-23, it’s ideal for voltage monitoring, supply regulation, and replacement of Zener diodes. Enjoy fast delivery and secure online purchase options for your professional engineering needs.
Get ON Semiconductor TLV431ALPRAG today—built for precision, low voltage regulation, and long-lasting durability in industrial circuits.
Frequently Asked Questions
Where can I buy ONSEMI TLV431ALPRAG?
You can click on the BUY or RFQ button to purchase TLV431ALPRAG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part TLV431ALPRAG?
You can download the TLV431ALPRAG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of TLV431ALPRAG?
ONSEMI
