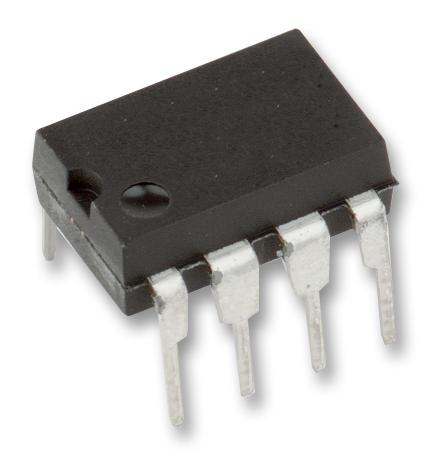

ONSEMI UC2842BNG PWM Controller
The UC2842BNG is a high-performance, fixed-frequency, current-mode pulse width modulation (PWM) controller designed for off-line and DC-DC converter applications. It offers a cost-effective solution with minimal external components and includes features such as a trimmed oscillator for precise duty cycle control, a temperature-compensated reference, a high-gain error amplifier, a current sensing comparator, and a high-current totem-pole output suitable for driving power MOSFETs. Additional protective features include input and reference undervoltage lockouts with hysteresis, cycle-by-cycle current limiting, programmable output deadtime, and a latch for single pulse metering, making it well-suited for power management and industrial applications.
ONSEMI UC2842BNG PWM Controller Specifications:
- Oscillator frequency: 250 kHz
- Maximum output duty cycle: 94-96%
- Reference output voltage: 5.0 V ±1%
- Undervoltage lockout thresholds: 16 V (on), 10 V (off)
- Operating junction temperature range: -25°C to +105°C
- Output drive current: up to 1.0 A
- Error amplifier gain: 90 dB
- Power dissipation (SOIC-14 package): 862 mW
- Thermal resistance junction-to-air (SOIC-14): 145°C/W
- Package type: SOIC-14
- Input voltage: 12 V to 25 V
- Cycle-by-cycle current limit with latch for single pulse
- Built-in hysteresis in undervoltage lockouts
- Soft-start circuitry with adjustable ramp
- Designed for power management and industrial applications
