ONSEMI LM833DR2G Dual Operational Amplifier
The LM833 is a low-noise, dual operational amplifier designed for audio and general-purpose applications. Featuring 4.5 nV/Hz voltage noise, a 15 MHz gain bandwidth, and a 7.0 V/μs slew rate, it provides excellent frequency stability and low distortion (0.002%). Its high output voltage swing and no crossover distortion make it ideal for high-fidelity audio systems. The device supports dual supply operation, is available in Pb-Free packages, and offers robust maximum ratings including up to ±36 V supply voltage and operational temperature range from -40°C to +85°C, making it versatile and reliable for precision applications.
ONSEMI LM833DR2G Dual Operational Amplifier Specifications:
- Voltage Noise: 4.5 nV/Hz
- Gain Bandwidth: 15 MHz
- Slew Rate: 7.0 V/μs
- Input Offset Voltage: 0.3 mV
- Temperature Coefficient of Input Offset Voltage: 2.0 μV/°C
- Total Harmonic Distortion: 0.002%
- Supply Voltage Range: ±36 V
- Operating Temperature Range: -40°C to +85°C
- Output Voltage Swing: Large with no crossover distortion
- Support for dual supply operation (+15 V to -15 V)
- Package Options: PDIP-8, SOIC-8 (Pb-Free options available)
- Maximum Power Dissipation: 500 mW
- Input Voltage Range: ±12 V to ±14 V
- Input Bias Current: 300 to 1000 nA
- Common Mode Rejection: 80 to 100 dB

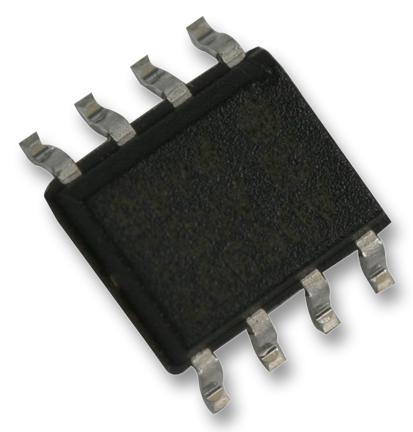

Buy the ON Semiconductor Series LM833 Audio Dual Operational Amplifier: LM833DR2G
Experience exceptional audio performance with the ON Semiconductor LM833 dual operational amplifier. Crafted for low noise, high bandwidth, and swift response, it ensures clarity and stability in high-fidelity sound systems. Its robust design supports dual supply operation and handles high output voltages without distortion. Perfect for audio and precision circuitry, the LM833 offers reliable operation across a wide temperature range. Easy to install in various formats, this amplifier is ideal for manufacturers and engineers seeking superior quality and durability from their electronic designs. Order online today and enhance your audio projects with confidence.
Get ON Semiconductor LM833DR2G today—built for audio precision and long-lasting durability.
