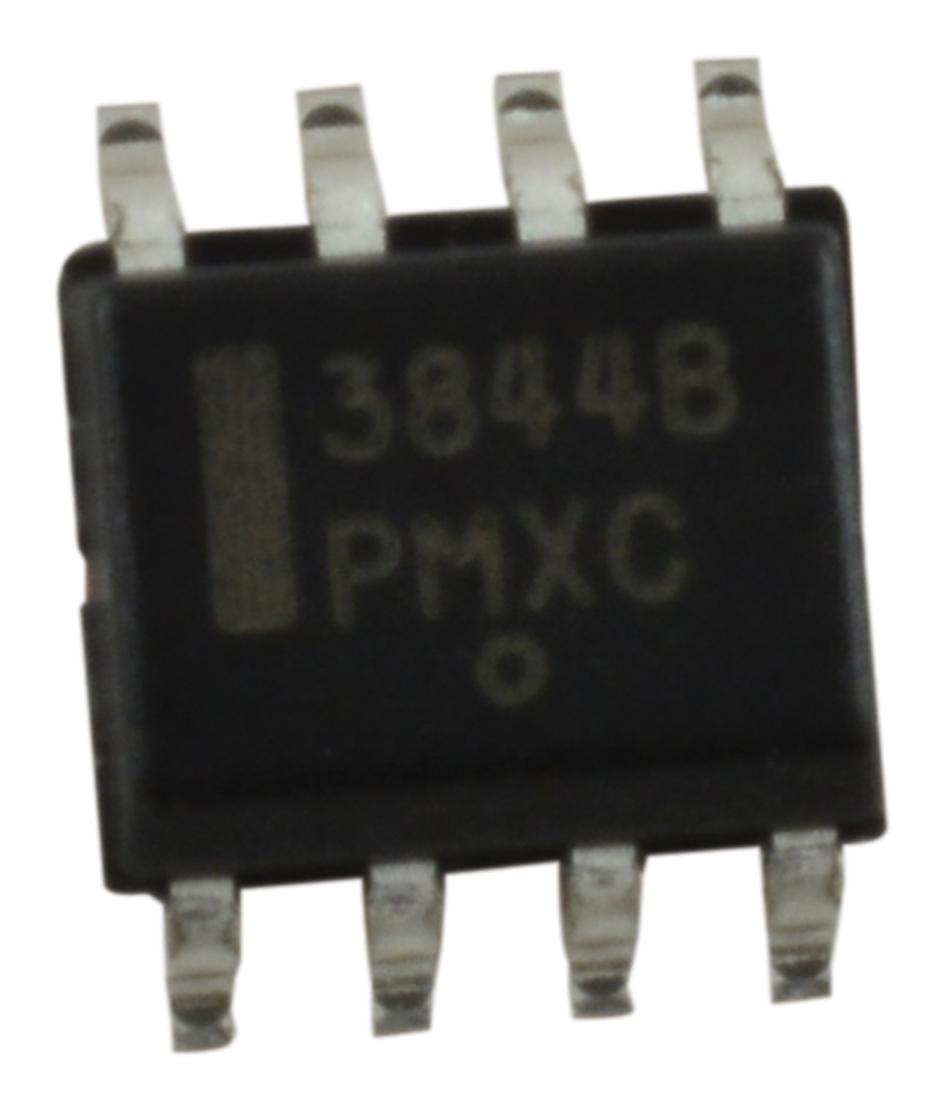

ONSEMI UC3844BD1G High-Performance PWM Controller
The UC3844BD1G is a high-performance fixed-frequency current-mode PWM controller designed for off-line and DC-DC converter applications. It offers a cost-effective solution with minimal external components, featuring an oscillator, temperature-compensated reference, high-gain error amplifier, current sensing comparator, and a high-current totem pole output suitable for driving power MOSFETs. The device includes protective features such as input and reference undervoltage lockouts with hysteresis, cycle-by-cycle current limiting, a latch for single pulse metering, and a flip-flop that blanks the output on alternating oscillator cycles to set output deadtimes between 50% and 70%. Additional features include a precisely trimmed oscillator for frequency control, automatic feedforward compensation, internally trimmed reference, low startup and operating current, and integrated undervoltage lockout with hysteresis. It is commonly used in power management and industrial applications.
ONSEMI UC3844BD1G High-Performance PWM Controller Specifications:
- Oscillator Frequency: Guaranteed at 250 kHz
- Output Deadtime: Programmable from 50% to 70%
- Reference Voltage: 5.0 V thermostable, ±1% trimming
- UVLO Thresholds: 16V on, 10V off (UC3844B), 8.5V on, 7.6V off (UC3845B)
- Input Voltage Range: Up to 36V (UC3844B), appropriate for off-line applications
- Peak Output Drive Current: Up to 1.0 A with totem pole stage
- Device Package: SOIC-14 plastic surface-mount, with separate power and ground pins
- Thermal Rating: Max junction temperature +150°C; Power Dissipation: 862 mW (SOIC-14)
- Power Supply Range: 10V to 36V, RoHS compliant, Pb-Free
- Features include cycle-by-cycle current limiting, internal references, error amplifier with 90 dB gain, hysteresis in UVLO, and externally programmable deadtime
- Designed for power regulation, industrial automation, and power supply systems
