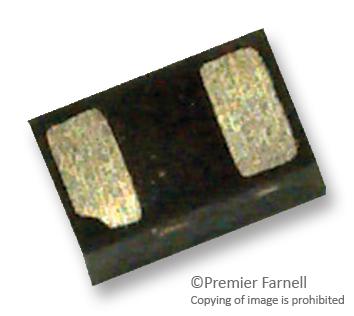

ONSEMI ESDM3551N2T5G ESD Protection Diode
The ESDM3551 is a low-capacitance, micro-packaged bi-directional TVS diode designed for robust ESD and transient voltage protection in sensitive electronic circuits. Featuring excellent clamping, low leakage, and fast response time, it is suitable for applications like USB, SD card, and audio line protection. Compliant with IEC 61000-4-2 Level 4, AEC-Q101, and RoHS standards, the device provides reliable board-level protection where space is limited, ensuring safe operation in automotive, industrial, and consumer electronics environments.
ONSEMI ESDM3551N2T5G ESD Protection Diode Specifications:
- Stand-off Voltage: 5.5 V
- Package Types: 0201 (0.62 mm x 0.32 mm), 0402 (1.00 mm x 0.60 mm)
- Maximum Reverse Peak Pulse Current: 99 A (8/20 us)
- Clamping Voltage: 6.0 V at Ipp=1A, 8.2 V at Ipp=8A
- IEC 61000-4-2 Contact ESD Resistance: 430 kV
- Leakage Current: 0.4 μA at Vwm=5.5 V
- Junction Capacitance: 21 pF (f=1 MHz)
- Maximum Power Dissipation: 250 mW at 25°C
- Operating Temperature Range: -55°C to +150°C
- RoHS, Halogen Free, BFR Free, Pb-Free, and AEC-Q101 Qualified
Buy the ON Semiconductor ESDM3551 – Reliable ESD Protection Diode for Industrial Applications
Secure your electronic devices with the ON Semiconductor ESDM3551, a high-reliability ESD protection solution featuring low capacitance and fast response. Designed for compact spaces, it effectively safeguards sensitive components against ESD events and transient voltage surge. Its advanced features include 5.5V stand-off voltage, high ESD resistance, and compliance with IEC 61000-4-2 Level 4 standard, making it suitable for consumer, automotive, and industrial applications. Ensure superior circuit protection by ordering online today for quick delivery and optimal device safety.
Buy ON Semiconductor ESDM3551 now and experience unmatched reliability and performance in sensitive electronic protection where space is limited.
Frequently Asked Questions
Where can I buy ONSEMI ESDM3551N2T5G?
You can click on the BUY or RFQ button to purchase ESDM3551N2T5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part ESDM3551N2T5G?
You can download the ESDM3551N2T5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of ESDM3551N2T5G?
ONSEMI
