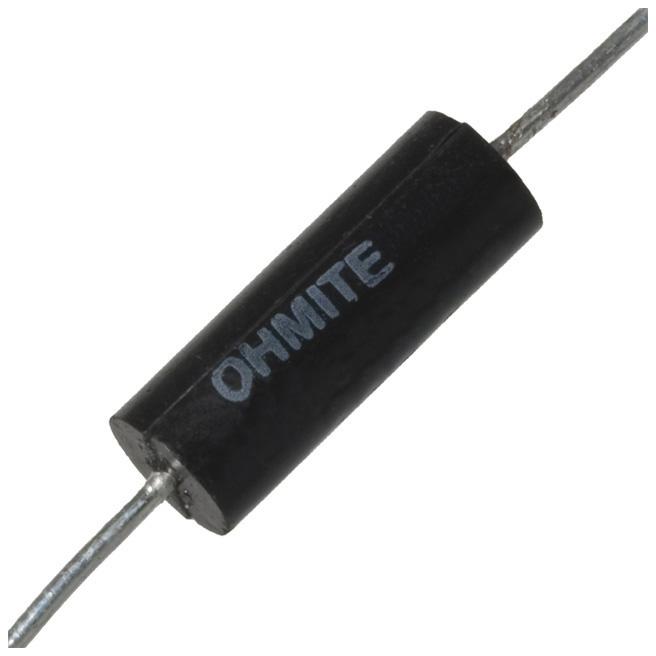

Ohmite 13FPR100E Axial Wire Element Resistor
The OHMITE 13FPR100E is a precision axial wire element resistor specifically engineered for current sensing applications. This resistor offers a 1% tolerance, ensuring accurate measurements, and exhibits low inductance, minimizing unwanted effects in sensitive circuits. Constructed with solder-plated copper terminals and encapsulated in a silicone molding compound, the 13FPR100E provides excellent durability and performance across a wide temperature range (-55°C to 275°C). Its RoHS compliance makes it suitable for environmentally conscious designs. Ideal for applications requiring precise current monitoring and control, the OHMITE 13FPR100E delivers reliable and consistent results.
Ohmite 13FPR100E Axial Wire Element Resistor Specifications:
- Series: 10 Series
- Wattage: 3
- Ohms: 0.005-0.20
- Tolerance: ±1% standard
- Resistance Measuring Point: M
- Inductance: Low (non-inductive below 0.25Ω)
- RoHS Compliant: Yes
- Terminals: Solder-plated copper terminals or copper clad steel
- Encapsulation: Silicone molding compound
- Derating: Linearly from 100% @ +25°C to 0% @ +275°C
- Power Rating: Based on 25°C free air rating
- Overload: 5 times rated wattage for 5 seconds
- Dielectric Withstanding Voltage: 1000 VRMS (for 3 and 5 watt), 500 VRMS (for 2 watt)
- Insulation Resistance: Not less than 1000MΩ
- Thermal EMF: Less than ±2µV/°C
- Temperature Range: -55°C to 275°C
