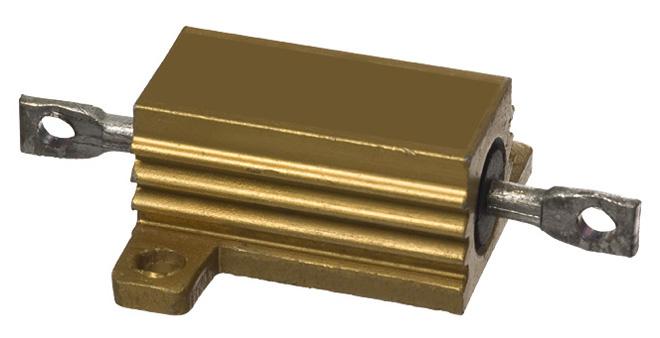

Ohmite 825F500E Aluminum Housed Axial Resistor
The OHMITE 89 Series Metal-Mite® resistors are aluminum-housed axial terminal wirewound resistors designed for high-performance applications. These resistors are constructed with a molded design and housed in aluminum to maintain stability during operation and permit secure mounting to chassis surfaces. They provide excellent heat-sinking capabilities and are well-suited for withstanding vibration, shock, and harsh environmental conditions. Common applications include industrial equipment, power supplies, and any application requiring robust and reliable resistance.
Ohmite 825F500E Aluminum Housed Axial Resistor Specifications:
- Series: 89 Series
- Wattage: 25W
- Ohms: 0.010-75K
- Voltage: 520V
- Housing: Metal, anodized aluminum
- Internal Coating: Silicone
- Core: Ceramic
- Terminals: Solder-coated axial
- Derating: Linearly from 100% @ +25°C to 0% @ +275°C
- Tolerance: ±1% and ±5%
- Power Rating: Based on chassis mounting area and temperature stability
- Maximum Ohmic Values: See chart
- Overload: 5 times rated wattage for 5 seconds
- Temperature Coefficient: Under 1Ω: ±90 ppm/°C; 1 to 9.99Ω: ±50 ppm/°C; 10Ω and over: ±20 ppm/°C
- Dielectric Withstanding Voltage: 5W & 10W: 1000 VAC; 25 & 50W: 2250 VAC
Buy the 825F500E OHMITE Aluminum Housed Axial Resistor | myMectronic
Purchase the OHMITE 825F500E resistor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite 825F500E?
You can click on the BUY or RFQ button to purchase 825F500E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part 825F500E?
You can download the 825F500E datasheet or visit the Ohmite website for support.
Who is the manufacturer of 825F500E?
Ohmite
