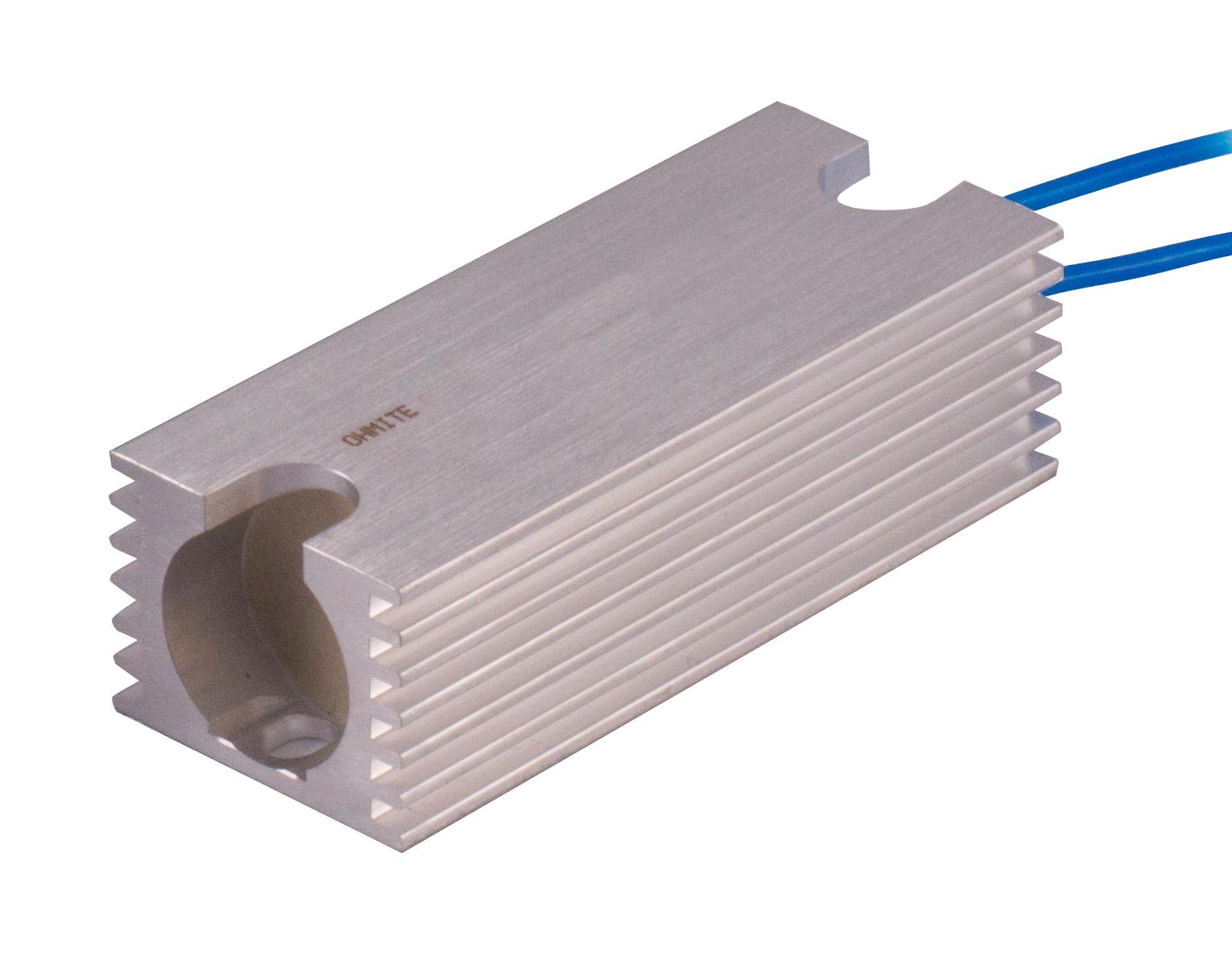

Ohmite ARG160C12RJ Power Resistor
The ARG series features wirewound power resistors housed in aluminum cases, designed for high power dissipation with thermal efficiencies enhanced by finned extrusion profiles. Suitable for electronic circuits like motor control, braking, and frequency converters, these resistors are equipped with insulated connectors and can be heatsinked. They handle nominal loads from 45W to 100W depending on size, with maximum overload voltages up to 2,300VAC. The resistors offer high stability, low tolerance of ±5%, and excellent thermal and electrical insulation properties, making them ideal for demanding industrial applications.
Ohmite ARG160C12RJ Power Resistor Specifications:
- Nominal load at 25°C: 45W to 100W depending on size
- Max. overload voltage: 1,000VAC to 2,300VAC
- Resistance range: 1.6Ω to 910Ω
- Maximum surface temperature: 250°C
- Tolerance: +5%
- TCR (10°C/°K): < +150ppm
- Isolation resistance: >10GΩ at 50V AC
- Isolation test voltage: 4000VAC
- Climatic category: 50 / 200/56
- Pulse overload capacity: 10x Pnom for 5 seconds
- Derating: 100% at 25°C, with heatsink up to 200W
- Dimensions vary by model, with L1 ranging from 90mm to 260mm
- Weight varies from 180g to 515g
- Material: Aluminum case with wire connections and insulated connectors
Buy the Ohmite ARG160C12RJ – Reliable Power Resistor for Motor Control and Frequency Converters
Purchase the Ohmite ARG Series power resistors online today for your industrial applications. These aluminum housed, wirewound resistors provide high power capacity, thermal efficiency, and excellent stability. Suitable for motor control, braking, and frequency converters, they feature insulated connectors and can be heatsinked for enhanced performance. With resistance values from 1.6Ω to 910Ω and overload voltages up to 2,300VAC, they ensure reliable operation in demanding environments. Quick online ordering ensures fast delivery for your essential electronic components.
Order your Ohmite ARG Series power resistors today and ensure your industrial projects benefit from high stability, thermal efficiency, and robust power handling.
Frequently Asked Questions
Where can I buy Ohmite ARG160C12RJ?
You can click on the BUY or RFQ button to purchase ARG160C12RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part ARG160C12RJ?
You can download the ARG160C12RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of ARG160C12RJ?
Ohmite
