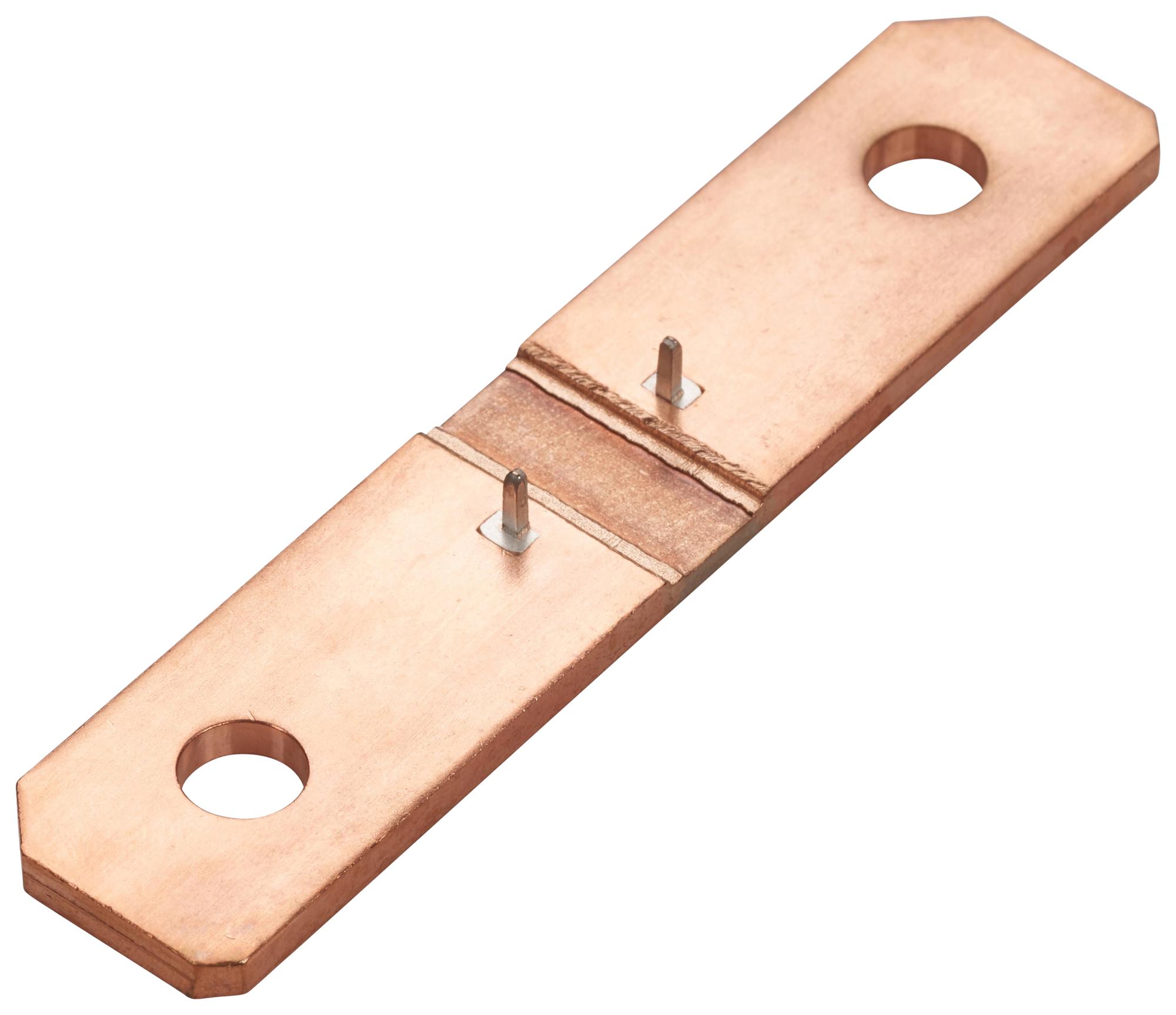

Ohmite SH6918F500BPEP Current Shunt
The Ohmite SHA Series precision manganin copper alloy shunt offers high stability, supporting up to 1KA rated current with negligible voltage effect. Its low inductance below 3nH and four-terminal Kelvin connection make it ideal for high-frequency applications like motor control, electronic power, and UPS systems. Designed with a special heat treatment process, it ensures minimal resistance shift, excellent long-term stability, and robustness against pulse currents. Suitable for demanding electronic and power management systems, it combines compact size with reliable thermal and electrical characteristics.
Ohmite SH6918F500BPEP Current Shunt Specifications:
- Rated power: 25W, 36W, 50W
- Resistance: 50Ω, 100Ω, 125Ω, 250Ω, 500Ω, 1kΩ
- Tolerance: ±0.5%, ±1%, ±5%
- Resistance temperature coefficient: 175ppm (-60°C - 175°C), 100ppm (20°C - 60°C)
- Rated current: 500A, 600A, 700A, 800A, 1000A
- Thermal shock resilience: -55°C to 150°C, 1000 cycles
- Overload capacity: 5 times rated power for 5 seconds
- Storage temperature: down to -55°C, high temp exposure up to 170°C for 1000 hours
- Vibration: 10Hz to 2000Hz, 12 hours
- Weight: 35g, 40g, 80g
- Pin type: Tin-plated interference fit
- Size: 60x18mm, 85x36mm, 85x85mm options
Buy the Buy Ohmite SHA Series Precision Copper Alloy Shunt Part Number SH6918F500BPEP Online
Purchase the Ohmite SHA Series current shunt online today for reliable high-current measurements in power management, electronic control, and high-frequency applications. With its excellent stability, minimal inductance, and resistance shift, this shunt supports up to 1KA rated current, making it ideal for demanding environments like motor control, UPS, and electronic load systems. Its compact design, robust construction, and precise electrical characteristics ensure optimal performance and longevity. Experience seamless integration and dependable operation by ordering your high-performance current shunt now, enabled for your advanced electrical projects.
Order your Ohmite SHA Series SH6918F500BPEP high-current shunt today and ensure your electronic systems operate with precision and stability under demanding conditions.
