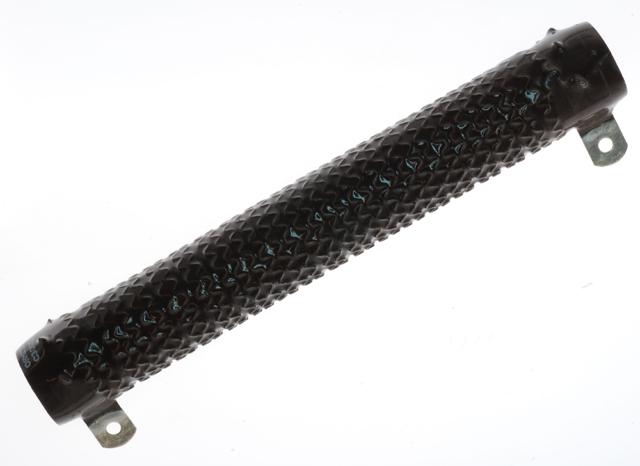

Ohmite E300KR80E Vitreous Enamel Power Resistor
OHMITE's 280 Series Corrib[®] resistors are specifically engineered for applications requiring high currents at very low resistance values. These heavy-duty resistors are built to withstand frequent start-stop cycles commonly found in motor starting, dynamic braking, and similar industrial processes. The corrugated resistive wire is securely fused to a ceramic core with a protective vitreous enamel coating, enhancing durability and promoting rapid cooling. Available in various configurations and with optional silicone coating for higher wattage applications, the E300KR80E offers a reliable solution for demanding power management needs.
Ohmite E300KR80E Vitreous Enamel Power Resistor Specifications:
- Coating: Lead-free vitreous enamel (except for low resistance and high wattage models, which are silicone ceramic)
- Core: Tubular Ceramic
- Terminals: Tinned lug with hole (RoHS solder composition: 96% Sn, 3.5% Ag, 0.5% Cu)
- Adjustable Lug: Supplied with adjustable 300W models (Part No. 1974-A or 1974-B)
- Resistance: Max. 63Ω for 300W version
- Tolerance: ±10% (K)
- Power Rating: Based on 25°C free air rating
- Derating: Linearly from 100% @ +25°C to 0% @ +400°C
- Overload: 10 times rated wattage for 5 seconds
- Temperature Coefficient: ±400 ppm/°C
- Dielectric Withstanding Voltage: 1000 VAC (terminal to mounting bracket)
Buy the E300KR80E OHMITE Vitreous Enamel Power Resistor | myMectronic
Purchase the OHMITE E300KR80E securely and efficiently to meet your industrial component needs.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite E300KR80E?
You can click on the BUY or RFQ button to purchase E300KR80E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part E300KR80E?
You can download the E300KR80E datasheet or visit the Ohmite website for support.
Who is the manufacturer of E300KR80E?
Ohmite
