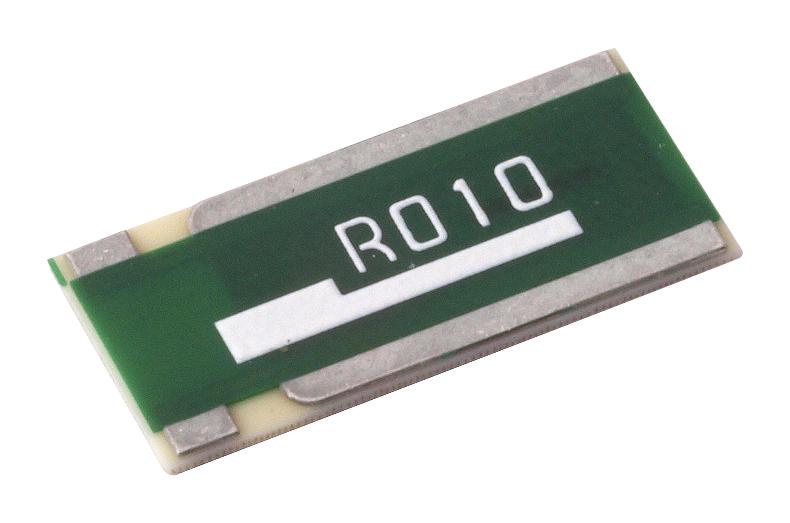

Ohmite FC4L76R005FER Current Sense Resistor
The FC4L series features four-terminal current sense resistors with metal foil construction designed for high stability and reliability in industrial applications. These resistors employ Ni-Cu-Mn elements and offer various power ratings from 0.25W to 5W, with resistance ranges from 0.25 mΩ to 100 mΩ. They are suitable for precise current measurement, incorporating Kelvin four-terminal configurations for enhanced accuracy. Designed to withstand high temperatures, they are ideal for equipment requiring low heat electromotive use, with excellent solderability, moisture resistance, and overload capacity, making them essential components in industrial electronic systems.
Ohmite FC4L76R005FER Current Sense Resistor Specifications:
- Power Ratings: 0.25W, 1W, 2W, 3W, 5W
- Resistance Range: 0.25mΩ to 100mΩ
- Construction: Metal foil
- Temperature Coefficient of Resistance: approximately 41-45% ppm/°C
- Operating Temperature Range: -40°C to +125°C
- Maximum Temperature for Rated Power: 70°C
- Overload Voltage: rated power x resistance value
- In-rush Current: varies by series, up to 950A in 5W series
- Rated Voltage: proportional to power and resistance
- Solderability: withstands lead-free soldering temperatures up to 260°C
- Moisture Resistance: 1000 hours at 85°C/45% RH
- Endurance: 1000 cycles at 155°C
- Packaging: Reel with specified dimensions for each series
- Certifications: RoHS compliant
Buy the Ohmite FC4L Series – Reliable Current Sense Resistors for Industrial Applications
Experience precise current measurement with Ohmite FC4L series resistors. Designed for industrial electronics, these high-stability, metal foil resistors support high temperatures, low heat electromotive performance, and reliable soldering. They are perfect for accurate current sensing, equipped with four-terminal Kelvin configuration, and designed to withstand rigorous conditions. Available in various power and resistance options, these resistors ensure durability, precision, and ease of assembly for engineers and technical professionals seeking dependable electronic components for demanding industrial environments.
Get Ohmite FC4L series resistors today—built for precision, stability, and long-lasting durability in industrial electronic systems.
Frequently Asked Questions
Where can I buy Ohmite FC4L76R005FER?
You can click on the BUY or RFQ button to purchase FC4L76R005FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4L76R005FER?
You can download the FC4L76R005FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4L76R005FER?
Ohmite
