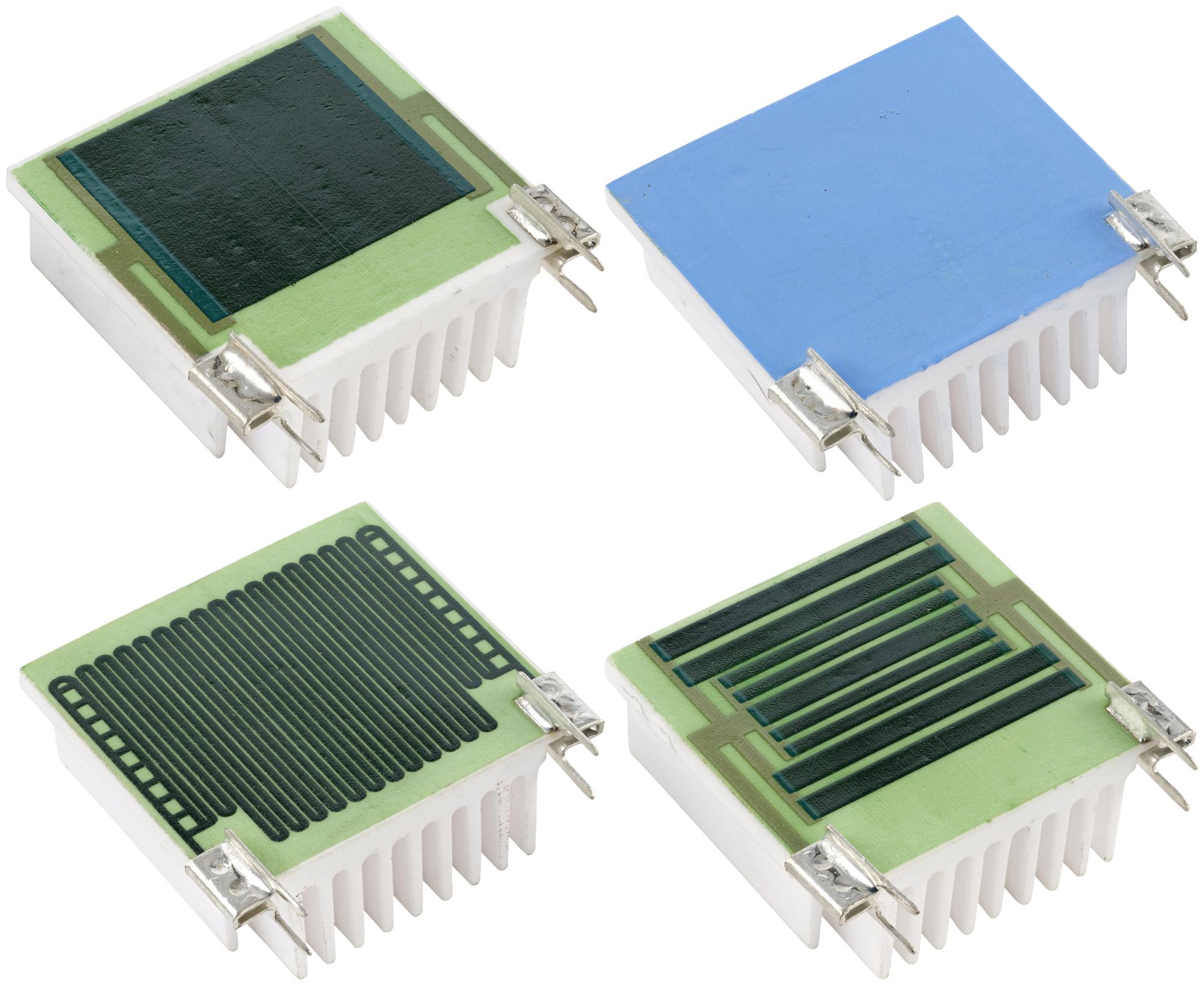

Ohmite TRHP01A5001F2E Thick Film Resistor
The TRH series combines resistance elements on ceramic heatsinks, offering high thermal efficiency for board-mounted applications. Designed for continuous power, high voltage, and surge conditions, these thick film resistors feature advanced printing processes, low inductance, and high-temperature terminal construction. They meet industry standards including Mil-Std-202 and IEC 61000-4-5, providing reliable performance across a wide resistance range from 52 ohms to 10 megaohms. Ideal for demanding electronic and industrial applications requiring robust, high-power, and surge-resistant resistor solutions.
Ohmite TRHP01A5001F2E Thick Film Resistor Specifications:
- Resistance Range: 52Ω to 10MΩ
- Power Rating: 30W at 25°C
- Resistance Tolerance: 1%, 5%, 10%
- Temperature Coefficient: <5ppm
- Max Operating Voltage: 15kV
- Temperature Range: -55°C to +180°C
- Dielectric Strength: >10,000MΩ or greater
- Material: Thick film on 95% alumina substrate
- Solderability: >95% coverage
- Shock & Vibration Resistance: Meets Mil-Std-202
- Surge Immunity: IEC61000-4-5 waveform tested
- Soldering: Solder plated bronze terminals, max 350°C for 3 sec
Buy the OHMITE Series TRH Thick Film Resistor: TRHP01A5001F2E
Purchase the OHMITE TRHP01A5001F2E online today for a reliable, high-power thick film resistor with ceramic heatsink, designed for demanding industrial applications. Featuring advanced thick film technology, it offers excellent thermal performance, high surge immunity, and compliance with industry standards. Ideal for high voltage and continuous power environments, ensuring durability and consistent performance in electronic circuits. Buy now to ensure your projects benefit from industry-leading quality, robustness, and long-term reliability at competitive prices.
Get OHMITE TRHP01A5001F2E today—built for high power, surge resistance, and long-lasting durability.
Frequently Asked Questions
Where can I buy Ohmite TRHP01A5001F2E?
You can click on the BUY or RFQ button to purchase TRHP01A5001F2E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part TRHP01A5001F2E?
You can download the TRHP01A5001F2E datasheet or visit the Ohmite website for support.
Who is the manufacturer of TRHP01A5001F2E?
Ohmite
