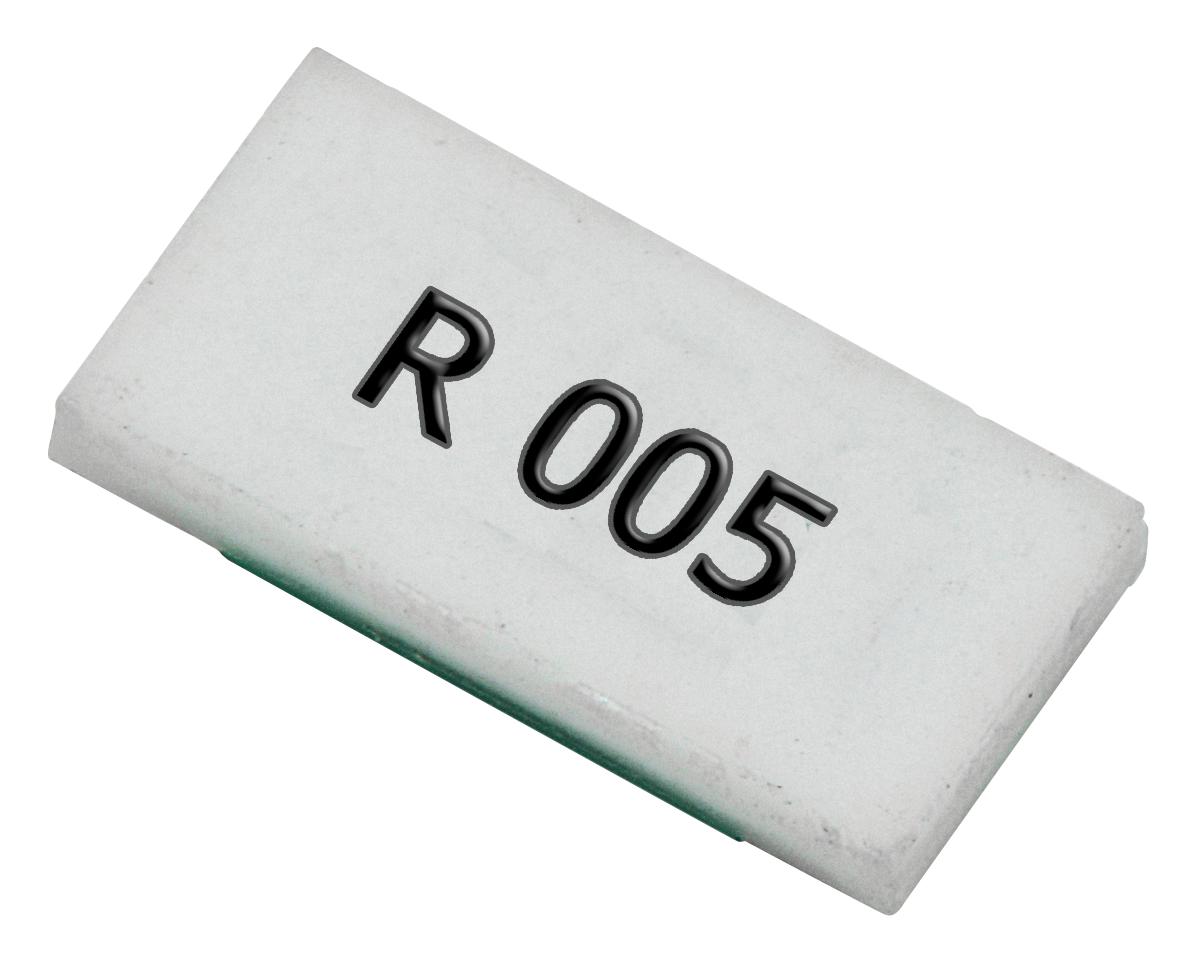

Ohmite FC4TR050DER Low Resistance Chip
The FC4T chip features a four-terminal Kelvin configuration, enabling precise current measurement by applying current through two terminals and sensing voltage across the other two, eliminating terminal resistance and temperature effects. Made with Ohmite's proprietary Metal Foil technology, it provides an excellent temperature coefficient of resistance (TCR), even at very low resistance values down to 50 ppm. Designed for high accuracy in low-resistance applications, it operates within a temperature range of -55°C to +155°C, rated at 0.5W power and available in 0.5% and 1% tolerance with epoxy resin protection and copper alloy terminals.
Ohmite FC4TR050DER Low Resistance Chip Specifications:
- Series: FC4T
- Size: 1206
- Power Rating: 0.5W at 70°C
- Resistance Range: 0.005-0.100Ω
- Tolerance: 0.5%, 1%
- Temperature Coefficient of Resistance: 50ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Max. Current: 27.55A (power dependent on resistance value)
- Construction: Epoxy resin coating, Cu/Ni/Sn terminals, alumina substrate
- Res. of Electrodes: <5mΩ
- Certifications: Not specified in provided data
Buy the Buy Ohmite FC4T Part Number FC4TR050DER Online
Order the Ohmite FC4T low resistance chip online today to benefit from high accuracy, four-terminal Kelvin configuration, and Metal Foil technology. This product ensures precise current measurement by eliminating terminal and temperature effects, with a wide operating temperature range from -55°C to +155°C and a power rating of 0.5W. Available in 0.5% and 1% resistance tolerance, it features epoxy resin protection, copper alloy terminals, and a resistance range of 0.005 to 0.100 ohms. Ideal for instrumentation, precision measurement, and low-resistance applications, purchase now for reliable performance.
Buy Ohmite FC4TR050DER now and experience unmatched precision and reliability in low resistance measurements with metal foil technology.
Frequently Asked Questions
Where can I buy Ohmite FC4TR050DER?
You can click on the BUY or RFQ button to purchase FC4TR050DER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4TR050DER?
You can download the FC4TR050DER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4TR050DER?
Ohmite
