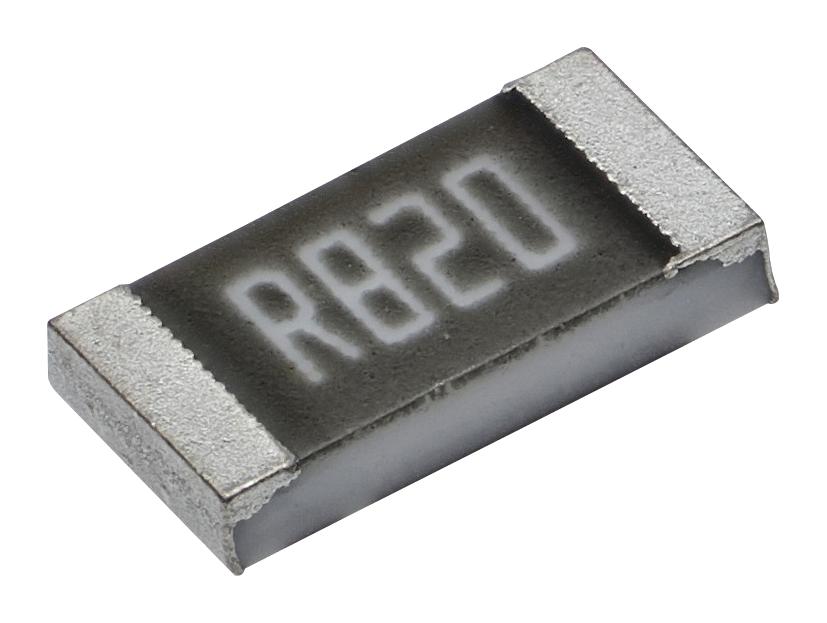

Ohmite KDV06FR560ET Low-Resistance Chip Resistor
The KDV series includes high-precision metal film low-resistance chip resistors designed for accurate current sensing and long-term stability in electronic circuits. These resistors feature low resistance values, high power capability, and exceptional stability over wide temperature ranges from -55°C to +155°C. Compliant with RoHS standards, they are ideal for consumer electronics, telecommunications, measuring instruments, industrial power supplies, and battery management systems. Various sizes such as 0603, 0805, and 1206 offer power ratings up to 1/2W, making them versatile for diverse electronic applications.
Ohmite KDV06FR560ET Low-Resistance Chip Resistor Specifications:
- Series Sizes: 0603, 0805, 1206
- Power Ratings: 1/5W (0603), 1/4W (0805), 1/2W (1206)
- Maximum Continuous Current: 2.00A (0603), 2.244A (0805), 3.16A (1206)
- Overload Current: 4.47A (0603), 5.00A (0805), 7.07A (1206)
- Temperature Range: -55°C to +155°C
- TCR: +100 ppm/°C (0603), +50 ppm/°C (0805 and 1206)
- Resistance Range: 50mΩ to 100mΩ (0603), 100mΩ to 1000mΩ (0805), 50mΩ to 150mΩ (1206)
- Storage environment: 25°C, 60-220% humidity, valid for one year, with environmental resilience
- Soldering Method: Reflow soldering recommended, peak temp 260°C, profile precautions outlined
- Insulation Resistance: ≥10 GΩ at 100V for 1 minute
- Solderability & Resistance to heat, humidity, and solvents tested per JIS standards
Buy the Ohmite Series KDV Low-Resistance Chip Resistor: KDV06FR560ET
Purchase the Ohmite Series KDV low-resistance chip resistor online today to ensure precise current measurement and long-term stability in your electronic designs. These resistors are ideal for consumer electronics, telecommunications, industrial power supplies, and measurement instruments, providing excellent thermal stability and high power handling capabilities. Featuring RoHS compliance, they meet environmental standards and are suitable for professional manufacturing and repair tasks. Shop now and enhance your projects with top-quality, reliable resistors designed for high performance and durability in demanding applications.
Order your Ohmite Series KDV56FR560ET low-resistance chip resistor today and ensure reliable current sensing for your advanced electronics projects.
Frequently Asked Questions
Where can I buy Ohmite KDV06FR560ET?
You can click on the BUY or RFQ button to purchase KDV06FR560ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part KDV06FR560ET?
You can download the KDV06FR560ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of KDV06FR560ET?
Ohmite
