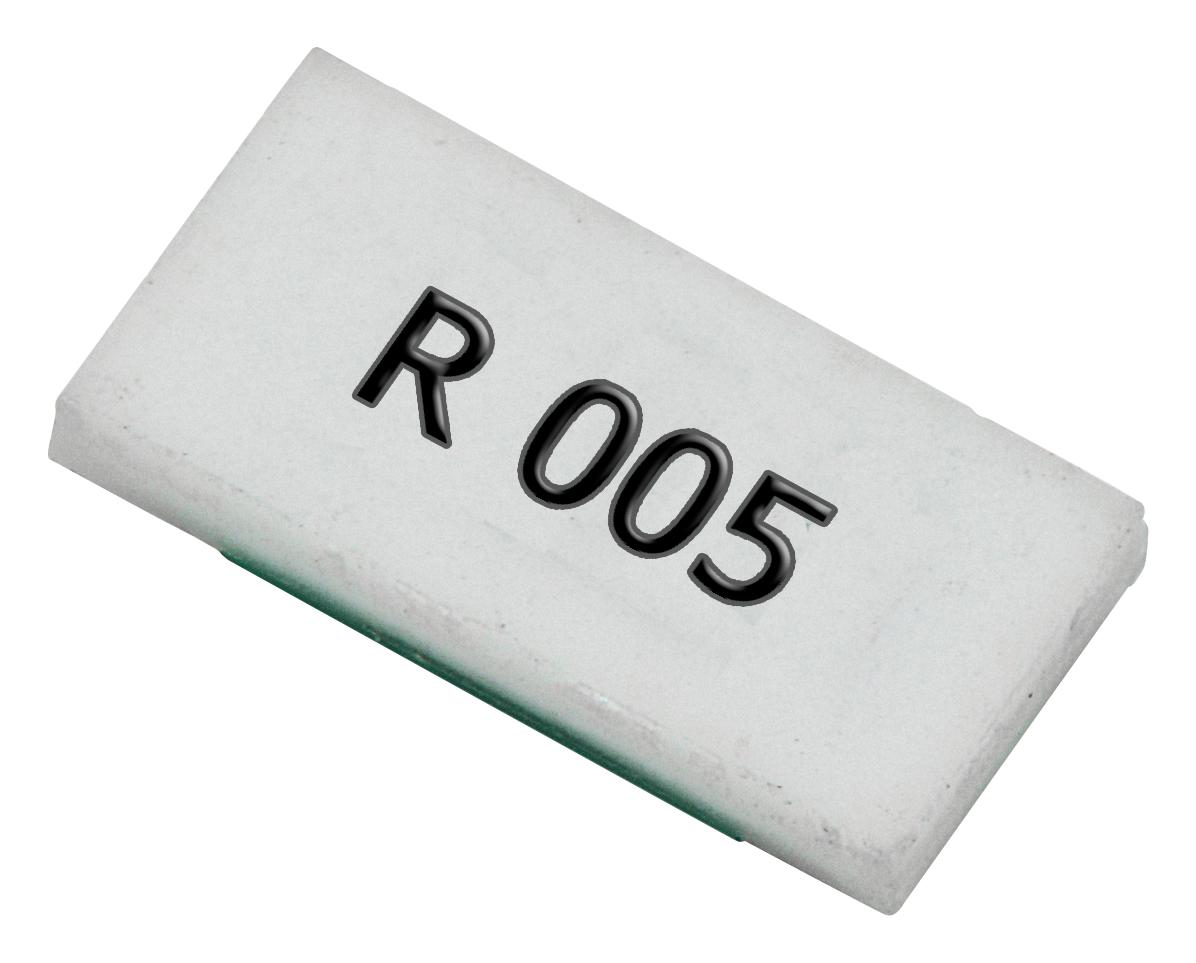

Ohmite FC4TR100DER Low Resistance Chip
The FC4T chip features four terminals arranged in a Kelvin configuration. This design allows current to be applied through two terminals while measuring the voltage across the other two, ensuring precise current measurement by eliminating the influence of terminal resistance and temperature effects. Manufactured with Ohmite's proprietary Metal Foil technology, it offers an excellent Temperature Coefficient of Resistance (TCR), even for very low resistance values down to 50 ppm. It is ideal for accuracy-critical electronic measurement applications requiring stable, low-resistance components.
Ohmite FC4TR100DER Low Resistance Chip Specifications:
- Power Resistance: 0.5W @70°C
- Range: 0.005-0.100 Ω
- Resistance Tolerance: 0.5%, 1%
- Temperature Coefficient of Resistance: 50 ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Resistance of Electrodes: <5mΩ
- Coating Material: Epoxy resin
- Terminal Material: Cu/Ni/Sn
- Max. Current: 27-55A depending on resistance value
- Construction: Cu-alloy resistor with alumina substrate and epoxy protection
- Compliance: IEC60115 standards for overload, temperature, moisture, solderability, and mechanical shock testing
Buy the Ohmite Series FC4T Low Resistance Chip: FC4TR100DER
Purchase the Ohmite Series FC4T low resistance chip online today and benefit from high accuracy and stability in your electronic measurement systems. Featuring four terminals in a Kelvin configuration, it provides precise current sensing by eliminating terminal resistance effects. Manufactured with advanced Metal Foil technology, it offers an excellent temperature coefficient of resistance down to 50 ppm, ensuring consistent performance over a wide temperature range from -55°C to +155°C. Ideal for precision instrumentation, test equipment, and control systems requiring low resistance and stable operation.
Order your Ohmite Series FC4T low resistance chip today and ensure precise current measurements with reliable Metal Foil technology for your electronic projects.
Frequently Asked Questions
Where can I buy Ohmite FC4TR100DER?
You can click on the BUY or RFQ button to purchase FC4TR100DER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4TR100DER?
You can download the FC4TR100DER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4TR100DER?
Ohmite
