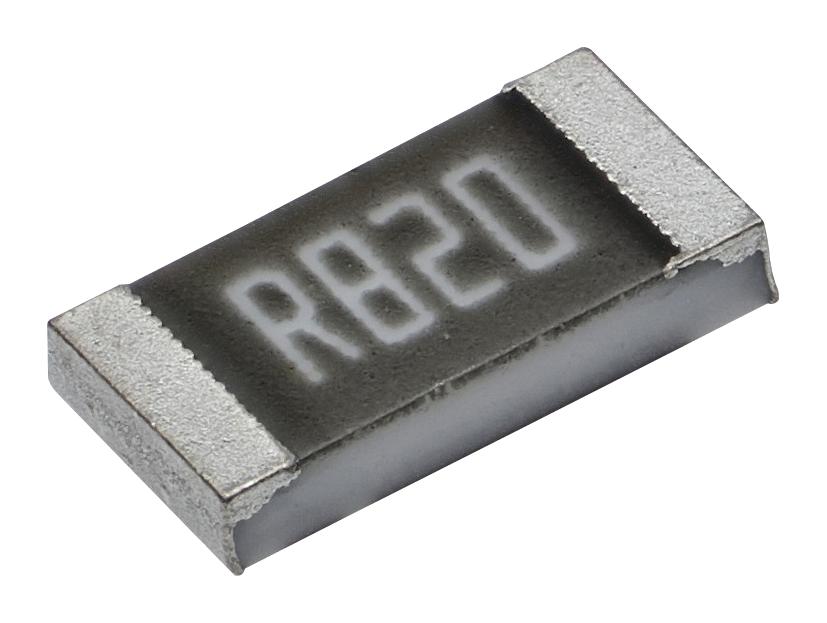

Ohmite KDV12DR068ET Low Resistance Chip Resistor
The KDV series consists of high-precision, low-resistance chip resistors designed for applications requiring excellent long-term stability, high power capacity, and low inductance. These metal film resistors are halogen-free, lead-free, RoHS compliant, and suitable for consumer electronics, telecom, measuring instruments, industrial systems, power supply, and battery management. Available in various sizes including 0603, 0805, and 1206, they feature resistance ranges from 50mΩ to 1000mΩ, with operating temperatures from -55°C to +155°C and power ratings up to 1/2W, ensuring reliable current sensing and thermal performance.
Ohmite KDV12DR068ET Low Resistance Chip Resistor Specifications:
- Series Sizes: 0603, 0805, 1206
- Power Ratings: 1/5W (0603), 1/4W (0805), 1/2W (1206)
- Maximum Operating Temp: -55°C to +155°C
- Resistance Range: 50mΩ to 1000mΩ
- TCR: +125°C, 25°C reference
- Overload Current: 4.47A (0603), 5.00A (0805), 7.07A (1206)
- Temperature Coefficient of Resistance: +100 ppm/°C (0603), +50 ppm/°C (0805)
- Resistance Tolerance: 1% or 0.5%
- Storage Conditions: 25°C ±5°C, 60-220% humidity, valid for 1 year
- Solderability: 95% coverage, no visible damage at 245°C for 3-5 seconds
- Insulation Resistance: ≥10GΩ at 100V for 1 minute
- Durability: withstands 260°C for 10 seconds with no visible damage
- Load Life: 1000 hours at rated power at 70°C with ±1% resistance change
- Wave Soldering Compatibility: Peak temp 260°C, reflow profile recommended
- Reel Packaging: Paper tape, sizes: 11.5mm, 16mm, 25.2mm, 40mm
Buy the Buy Ohmite Metal Film Low-Resistance Chip Resistors Part Number KDV12DR068ET Online
Purchase the Ohmite Low Resistance Chip Resistor KDV12DR068ET online today to ensure high accuracy, excellent long-term stability, and reliable power handling. Designed for a wide range of applications, these resistors provide exceptional TCR performance, are RoHS compliant, and feature easy reel packaging for automated assembly. Whether you need it for industrial control, telecom, or measuring instruments, buying online guarantees quick delivery, verified quality, and competitive pricing, enabling your projects to achieve optimal electrical performance effortlessly.
Order your Ohmite SeriesKDV12 resistor today and enhance your electronic projects with high-precision, stable current sensing performance.
Frequently Asked Questions
Where can I buy Ohmite KDV12DR068ET?
You can click on the BUY or RFQ button to purchase KDV12DR068ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part KDV12DR068ET?
You can download the KDV12DR068ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of KDV12DR068ET?
Ohmite
