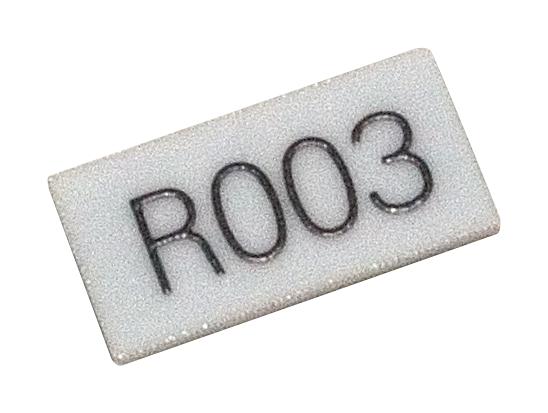

Ohmite FCSL64R020DER Metal Foil Current Sense Resistor
The OHMITE FCSL series metal foil current sense resistors utilize proven metal foil technology to deliver exceptional stability and accuracy. These resistors are designed for automatic insertion, feature industry-standard sizes, and offer a wide selection of low ohmic values. With power ratings up to 10 Watts and low TCR, the FCSL series is an ideal choice for demanding current sensing applications across various industrial sectors. They are available with different power ratings and tolerances to meet specific design requirements.
Ohmite FCSL64R020DER Metal Foil Current Sense Resistor Specifications:
- Power Resistance: 2.0W, 3.0W, 4.0W, 5.0W, 10.0W
- TCR: ±5%, ±2%, ±1%, ±0.5%
- Weight: 0.036g, 0.050g, 0.071g, 0.096g, 0.316g
- Rating Range (mΩ): 3m ~ 100m
- Tol.(ppm/°C): ±150, ±100, ±50
- In-rush Current (1mΩ~10mΩ): 125A, 150A, 180A, 210A, 240A
- In-rush Current (12mΩ~100mΩ): 70A, 80A, 100A, 120A, 140A
- Operating Temperature Range: -55°C ~ +155°C
- Recommended Reflow Temperature Profile: Preheating: 130° ~ 180° 60s ~ 90s, Heating: Over 220° 30s ~ 90s
Buy the FCSL64R020DER OHMITE Metal Foil Current Sense Resistor | myMectronic
Purchase the OHMITE FCSL64R020DER Metal Foil Current Sense Resistor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite FCSL64R020DER?
You can click on the BUY or RFQ button to purchase FCSL64R020DER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FCSL64R020DER?
You can download the FCSL64R020DER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FCSL64R020DER?
Ohmite
