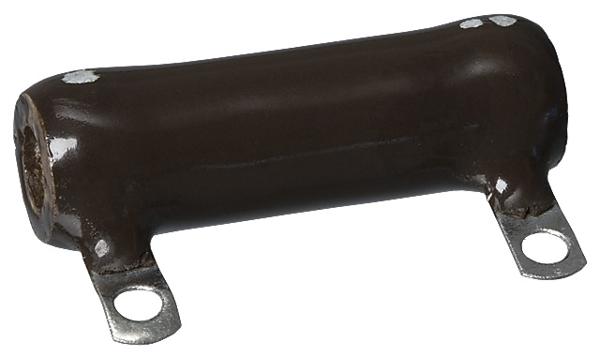

Ohmite L50J4R0 Vitreous Enamel Power Resistor
OHMITE's 270 Series Vitreous Enamel Power Resistors are robust components engineered for demanding applications requiring high wattage dissipation. These resistors feature lug terminals suitable for soldering or bolt connections, and their hollow core allows for secure mounting using various brackets. Constructed with all-welded components and a durable, lead-free vitreous enamel coating, they provide exceptional longevity and performance in harsh environments. Available in a wide range of resistance values and wattage ratings, these resistors are ideal for power control, motor starting, and other high-power applications.
Ohmite L50J4R0 Vitreous Enamel Power Resistor Specifications:
- Wattage: 50W
- Ohms: 0.38-260K
- Core Code: K
- Voltage: 1625
- Std. Terminal: 40
- Coating: Lead free vitreous enamel
- Core: Tubular ceramic
- Terminals: Solder coated radial lug
- Tolerance: ±5% (1Ω and over)
- Power rating: Based on 25°C free air rating
- Overload: 10 times rated wattage for 5 seconds
- Temperature coefficient: ±260 ppm/°C (Above 20Ω)
Buy the L50J4R0 OHMITE Vitreous Enamel Power Resistor | myMectronic
Securely purchase the OHMITE L50J4R0 resistor and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite L50J4R0?
You can click on the BUY or RFQ button to purchase L50J4R0 from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part L50J4R0?
You can download the L50J4R0 datasheet or visit the Ohmite website for support.
Who is the manufacturer of L50J4R0?
Ohmite
