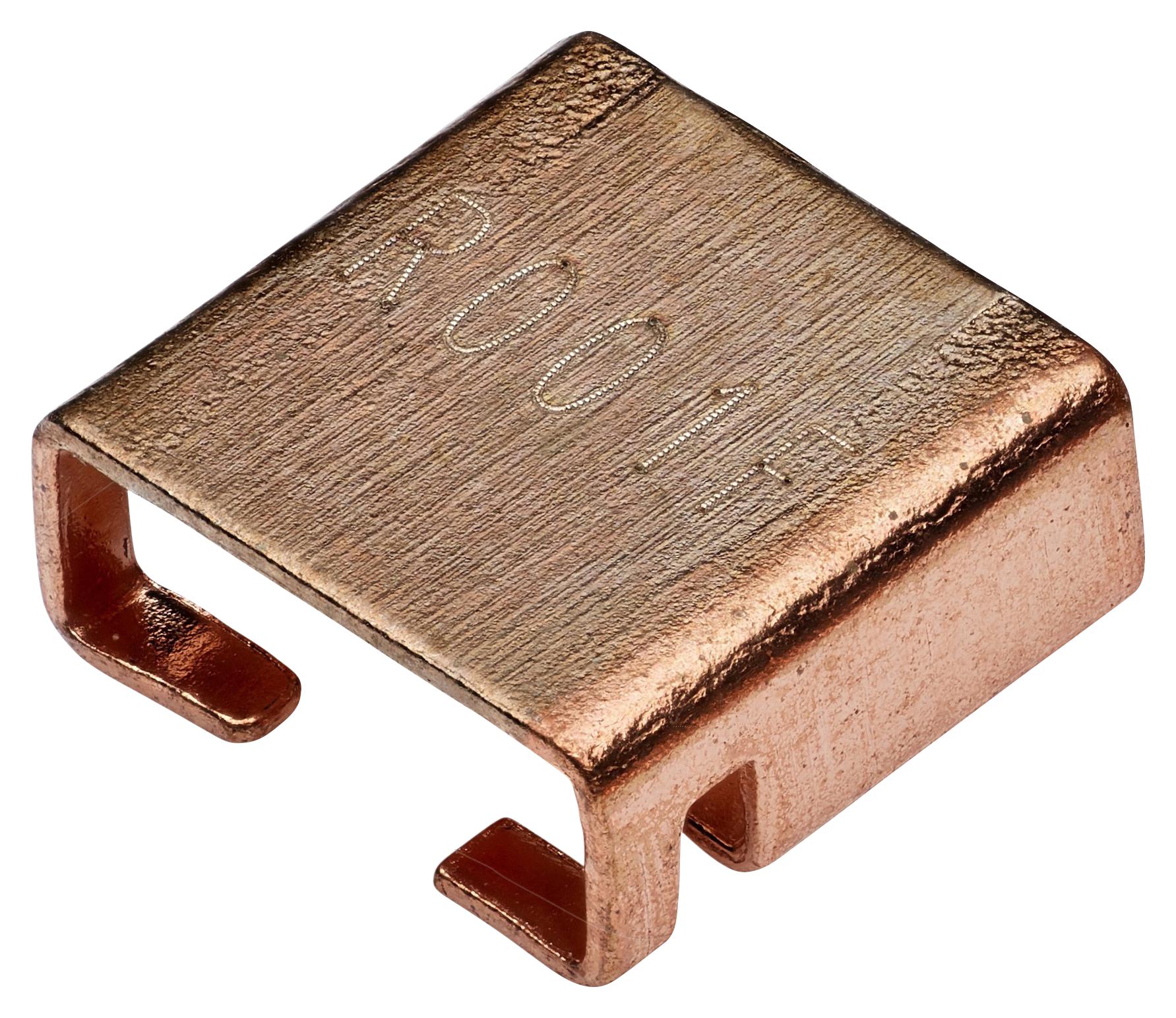

Ohmite FKM5R0005FETR Low-Resistance Chip Resistor
The FK/GK Series metal film low-resistance chip resistors offer power ratings up to 5 watts and resistance values from 0.3 milliohm to 3 milliohm. Designed for high current applications, they feature excellent long-term stability, a tolerance of 1%, and are RoHS compliant. These resistors are suitable for current sensing, power hybrid circuits, and automatic control power supplies. With high-temperature operation up to +155°C, they include various termination options such as folded land, gullwing, and folded term. Ideal for mounting on DCB/IMS substrates and power modules in automotive and industrial sectors, ensuring reliable performance in demanding environments.
Ohmite FKM5R0005FETR Low-Resistance Chip Resistor Specifications:
- Power Rating: Up to 5W at 70°C
- Resistance Range: 0.3mΩ to 3mΩ
- Tolerance: 1%
- Temperature Coefficient: Manganin ±70ppm/K, Karma <40ppm/K
- Operating Temperature Range: -55°C to +155°C
- Termination Types: Folded land, gullwing, folded term
- Material: Manganin, Karma
- Resistance Values: 0.00080Ω to 0.0030Ω
- RoHS compliant
- Wattage Rating: 5W, 4-terminal connection
Buy the Buy Ohmite FK/GK Series Low-Resistance Chip Resistors Part Number FKM5R0005FETR Online
Enhance your electronic designs with high-power low-resistance chip resistors from the FK/GK Series. These resistors deliver up to 5W power, resistances from 0.3mΩ to 3mΩ, and excellent stability at high temperatures. Suitable for current sensing and power modules, they feature various termination options for easy mounting on DCB/IMS substrates. RoHS compliant and designed for demanding automotive and industrial applications, ensuring long-term reliability and precision performance in compact spaces.
Buy Ohmite FK/GK Series low-resistance resistors now and experience reliable performance in high-current and power module applications.
Frequently Asked Questions
Where can I buy Ohmite FKM5R0005FETR?
You can click on the BUY or RFQ button to purchase FKM5R0005FETR from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FKM5R0005FETR?
You can download the FKM5R0005FETR datasheet or visit the Ohmite website for support.
Who is the manufacturer of FKM5R0005FETR?
Ohmite
