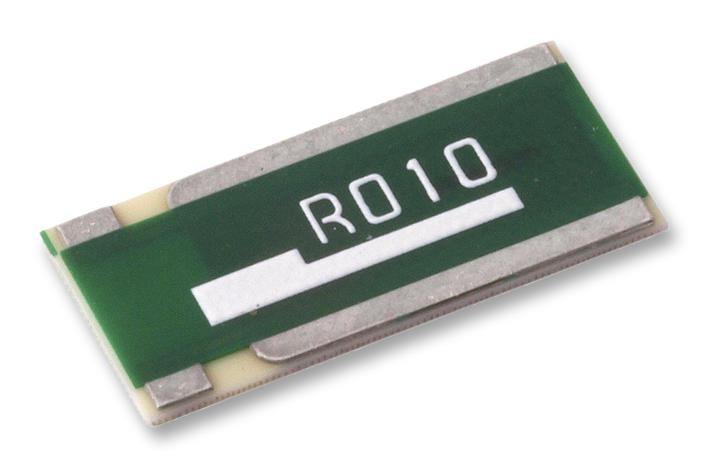

Ohmite FC4L32R010FER Current Sense Resistor
The FC4L series features four-terminal current sense resistors with metal foil construction, offering high stability and precision for industrial electronic applications. Designed for automatic insertion, these resistors provide industry-standard sizes with high heat resistance and low electromotive force. Available in 1W, 2W, and 5W packages, they have resistance values from 0.001 Ohms to 0.50 Ohms and operate within a temperature range of -55°C to +155°C. Ideal for current measurement and management in power and control circuits, they meet RoHS compliance standards.
Ohmite FC4L32R010FER Current Sense Resistor Specifications:
- Power Resistance Rating Range: 1W (1mQ to 4mQ), 2W (1mQ to 100mQ), 5W (1mQ to 50mQ)
- Resistance Tolerance: ±1%, ±2%, ±5%
- Temperature Coefficient of Resistance: +50 to +100 ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Max. Temperature for Rated Power: 70°C
- Rated Voltage: Up to 60V depending on resistance and power rating
- In-rush Current: Max. 27A for 2W series
- Solderability: 245°C ±5°C for 3 ±0.5 sec
- Endurance: 1000 hours at 70°C, rated voltage
- Resistance to Soldering Heat: 260°C ±5°C for 10 ±1 sec
- Moisture Resistance: 90-95% RH, for 1000 hours at rated voltage
- Size Dimensions: Lengths vary by series, with typical widths around 0.15-0.45 in (3.8-11.5mm)
Buy the Rolie FC4L32R010FER – Reliable Current Sense Resistors for Industrial Applications
Purchase the Rolie Series FC4L32R010FER four-terminal current sense resistor online today for high stability and accuracy in industrial electronics. With metal foil construction, these resistors ensure dependable performance under high heat conditions and voltages up to 60V. They are designed for automatic insertion, featuring industry-standard sizes and resistance values from 0.001 to 0.50 Ohms, tolerances as low as 1%, and operation from -55°C to +155°C. Enhance your power circuits with these RoHS-compliant precision components, available now for quick delivery.
Order your Rolie Series FC4L32R010FER today and give your power management projects the dependable quality they deserve with precision current sensing.
Frequently Asked Questions
Where can I buy Ohmite FC4L32R010FER?
You can click on the BUY or RFQ button to purchase FC4L32R010FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4L32R010FER?
You can download the FC4L32R010FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4L32R010FER?
Ohmite
