Ohmite HS10560RJ Aluminium Power Resistor
The HS Aluminium Housed Resistor is designed for high power applications with direct heatsink mounting, offering excellent thermal performance and pulse capability. Manufactured to meet MIL 18546 and IEC 115 standards, it features ROHS compliance, customizable designs, and a broad range of ohmic values from R005 to 100K. Its high pulse capability and low inductance options make it suitable for demanding electrical environments, ensuring reliable operation with temperature coefficients below 1K. The resistor's compact design allows effective heat dissipation through proper mounting and thermal interface materials.
Ohmite HS10560RJ Aluminium Power Resistor Specifications:
- Power Dissipation: Up to 300 Watts depending on size and cooling method
- Resistance Range: R005 to 100K ohms
- Tolerance: Standard +5% (J), +10% (K); also available +1% (F), +2% (G), +3% (H)
- Maximum Surface Temperature: 200°C
- Temperature Coefficients: Typically < 1K 100ppm, models > 1K at 25ppm
- Insulation Resistance: ≥ 10,000 MΩ (dry)
- Mounting: Direct heatsink with thermal compound, optional non-inductive (NHS) versions
- Voltage Proof: AC Peak 160-2500V depending on size, RMS voltage ratings from 58V to 700V
- Size Range: HS10 to HS300 with dimensions specified in mm for each model
- Materials: Aluminium housing, wound resistive element, high pulse capability

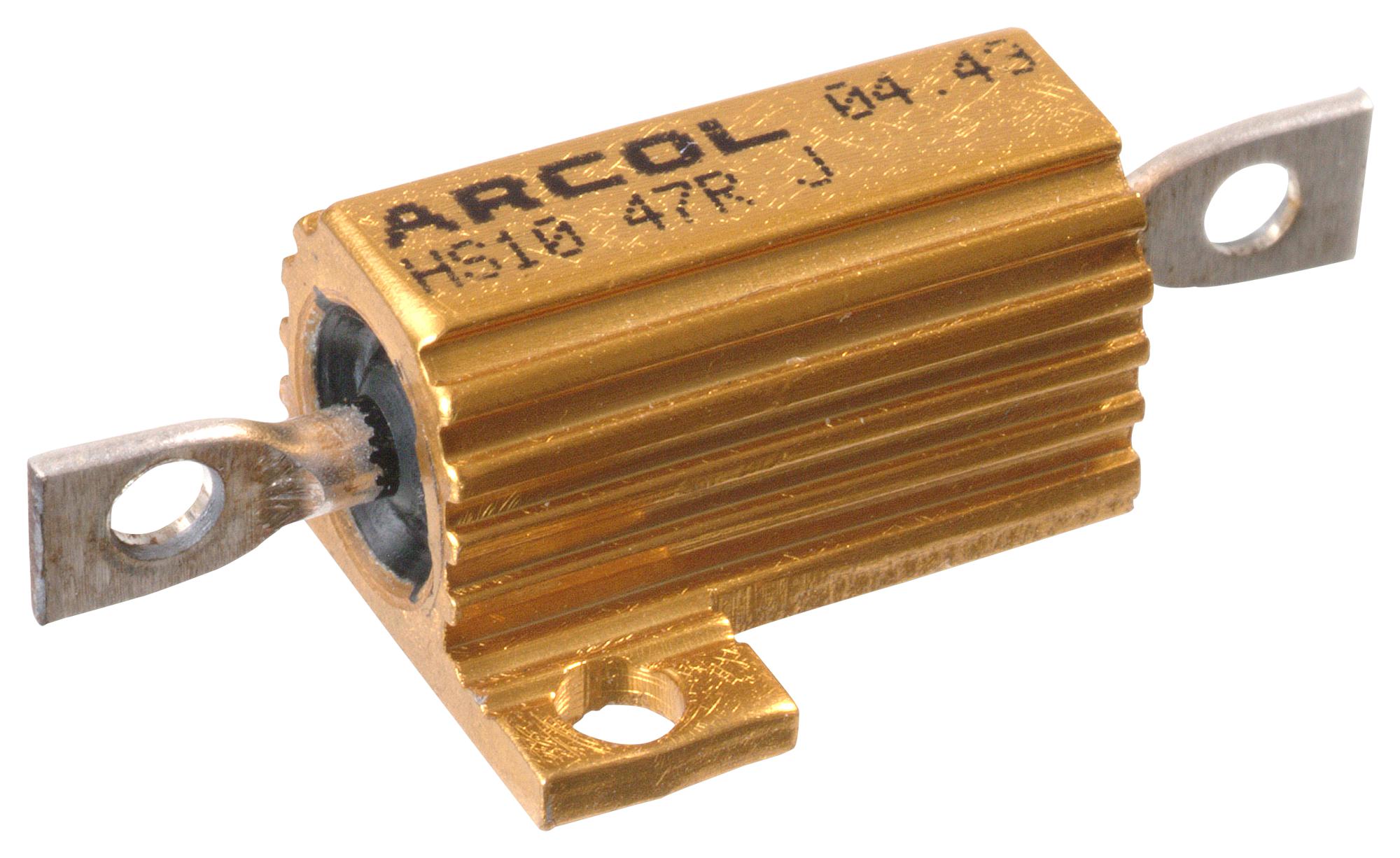

Buy the Arcol Series HS Aluminium Resistor: HS10560RJ
Shop the Arcol HS10560RJ aluminium power resistor online for high power handling, efficient heat dissipation, and excellent pulse capability. Designed for industrial and electronics applications, it features a robust aluminium housing, broad resistance values, and high pulse performance. Perfect for demanding environments where reliable thermal management and durability are essential. Easy to install with direct heatsink mounting, this resistor ensures optimal heat transfer with thermal compound. Invest today to enhance your project's reliability and performance through fast online ordering.
Get Arcol HS10560RJ aluminium housed resistor today—built for high power, precision, and long-lasting performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy Ohmite HS10560RJ?
You can click on the BUY or RFQ button to purchase HS10560RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS10560RJ?
You can download the HS10560RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS10560RJ?
Ohmite
