Ohmite HS1082RJ High Power Resistor
The HS Aluminium Housed Resistor is designed for high power applications with efficient heat sinking and thermal management. Compliant with MIL 18546 and IEC 115 standards, it features wound construction for high pulse capability, with ohmic values ranging from R005 to 100K. Suitable for direct heatsink mounting using thermal compound, it offers options with low inductance (NHS series) and various tolerances, including ±5%, ±10%, and tighter tolerances upon request. Its rugged design ensures reliable performance in demanding electrical and thermal environments, with a maximum surface temperature of 200°C. Suitable for diverse industrial, power, and control applications requiring high wattage and thermal stability.
Ohmite HS1082RJ High Power Resistor Specifications:
- Power Dissipation: from 4W to 300W depending on model, derating at high temperatures to prevent exceeding 200°C surface temp
- Resistance Range: R005 to 100K ohms
- Tolerance: +5% (J), +10% (K), with options for +1% (F), +2% (G), +3% (H)
- Temperature Coefficient: Typically < 1K 100ppm, > 1K 25ppm, lower TCRs available on request
- Insulation Resistance: Minimum 10,000 MΩ (dry)
- Heat Dissipation: Achieved through proprietary heatsinks; maximum surface temp 200°C
- Voltage Ratings: Peak voltages from 58V (HS10) up to 600V (HS300), RMS voltages up to 6363V depending on size
- Physical Dimensions: Sizes range from HS10 to HS300, dimensions vary; for example, HS10 Max length 16.5mm, width 30mm
- Mounting: Designed for direct heatsink mounting with thermal compound; optional low inductance NHS variants available
- Features: RoHS compliant, wound for high pulse capability, custom designs welcome

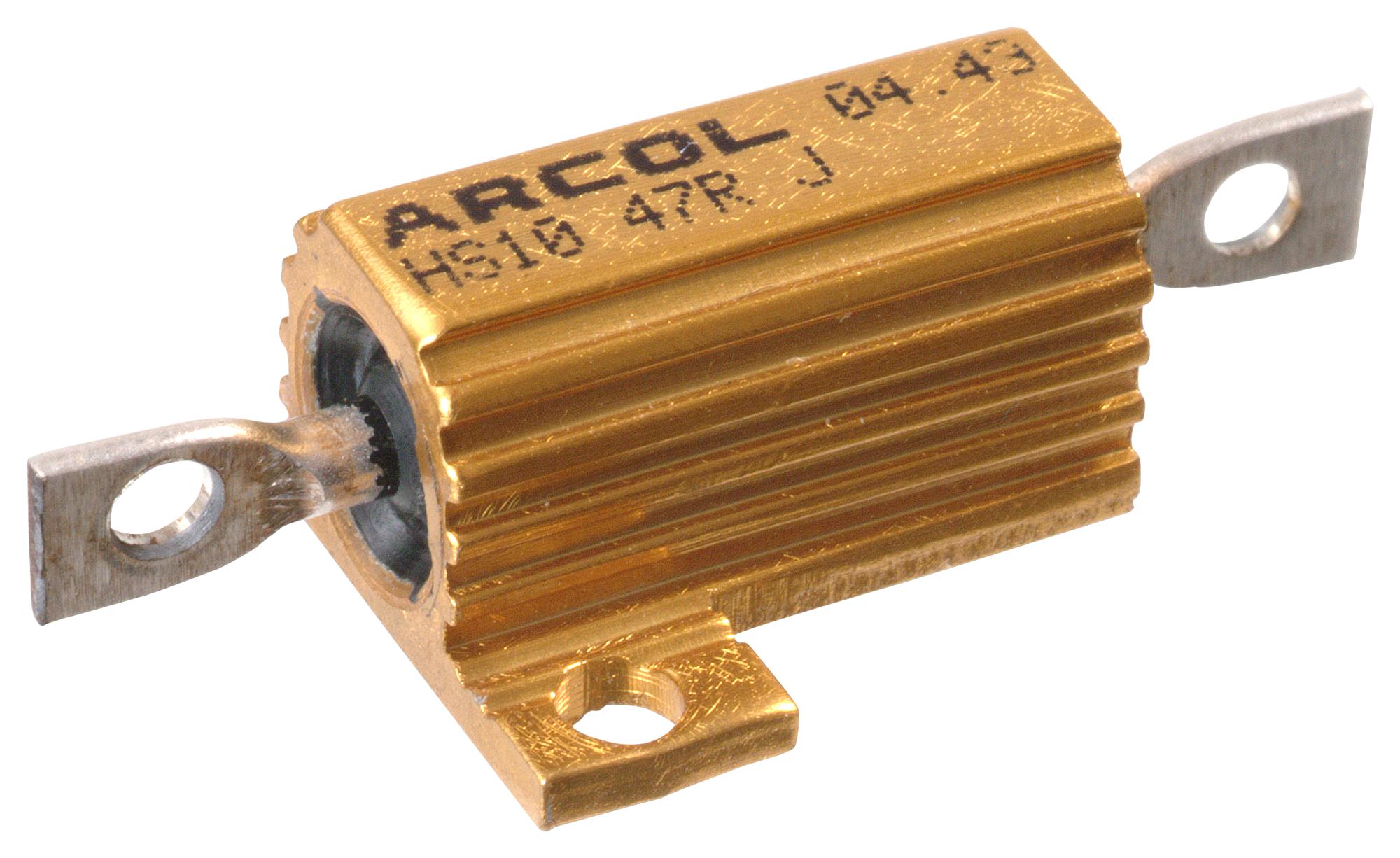

Buy the Buy Arcol Aluminium Housed Resistors Part Number HS1082RJ Online
Purchase the Arcol HS series high power aluminium housed resistor online today for superior thermal performance and reliable operation. Perfect for industrial power circuits, it features wound construction for high pulse capability and ohmic values from R005 to 100K. Designed for direct heatsink mounting with thermal compound, these resistors ensure maximum heat dissipation within a maximum surface temperature of 200°C. Available in various tolerances and sizes, order now for fast delivery and trusted quality to keep your electrical systems running efficiently and safely.
Order your Arcol Series HS1082RJ high power heatsink resistor today and ensure reliable thermal management for your demanding electrical projects.
Frequently Asked Questions
Where can I buy Ohmite HS1082RJ?
You can click on the BUY or RFQ button to purchase HS1082RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS1082RJ?
You can download the HS1082RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS1082RJ?
Ohmite
