Ohmite HS7522RJ Aluminium Housed Resistor
The HS Aluminium Housed Resistors are designed for high power applications and direct heatsink mounting, compliant with MIL 18546 and IEC 115 standards. Ideal for high pulse capability, these resistors are wound for maximum performance and customization. Features include RoHS compliance, varied tolerances, low inductance options, and extensive ohmic value ranges from R005 to 100K. Suitable for demanding environments, they ensure optimal heat dissipation with proper heat sink compounds, maintaining a maximum surface temperature of 200°C, making them perfect for precise industrial and electronic applications.
Ohmite HS7522RJ Aluminium Housed Resistor Specifications:
- Power Dissipation: 10W to 300W depending on model
- Ohmic Values: R005 to 100K
- Tolerance: +5% (J), +10% (K); optional +1% (F), +2% (G), +3% (H)
- Temperature Coefficients: <1K at 100ppm, >1K at 25ppm
- Insulation Resistance: Minimum 10,000 MΩ (dry)
- Maximum Surface Temperature: 200°C
- Voltage Ratings: Varying from 58V to 700V AC proof
- Heat Dissipation: Linearly derated at high ambient temperatures, proper heatsinking required
- Dimensions: Length and diameter depend on model, with specific measurements available
- RoHS Compliant and designed for direct heatsink mounting using thermal compound
- Low inductance options available by designating N before series code, e.g., NHS50

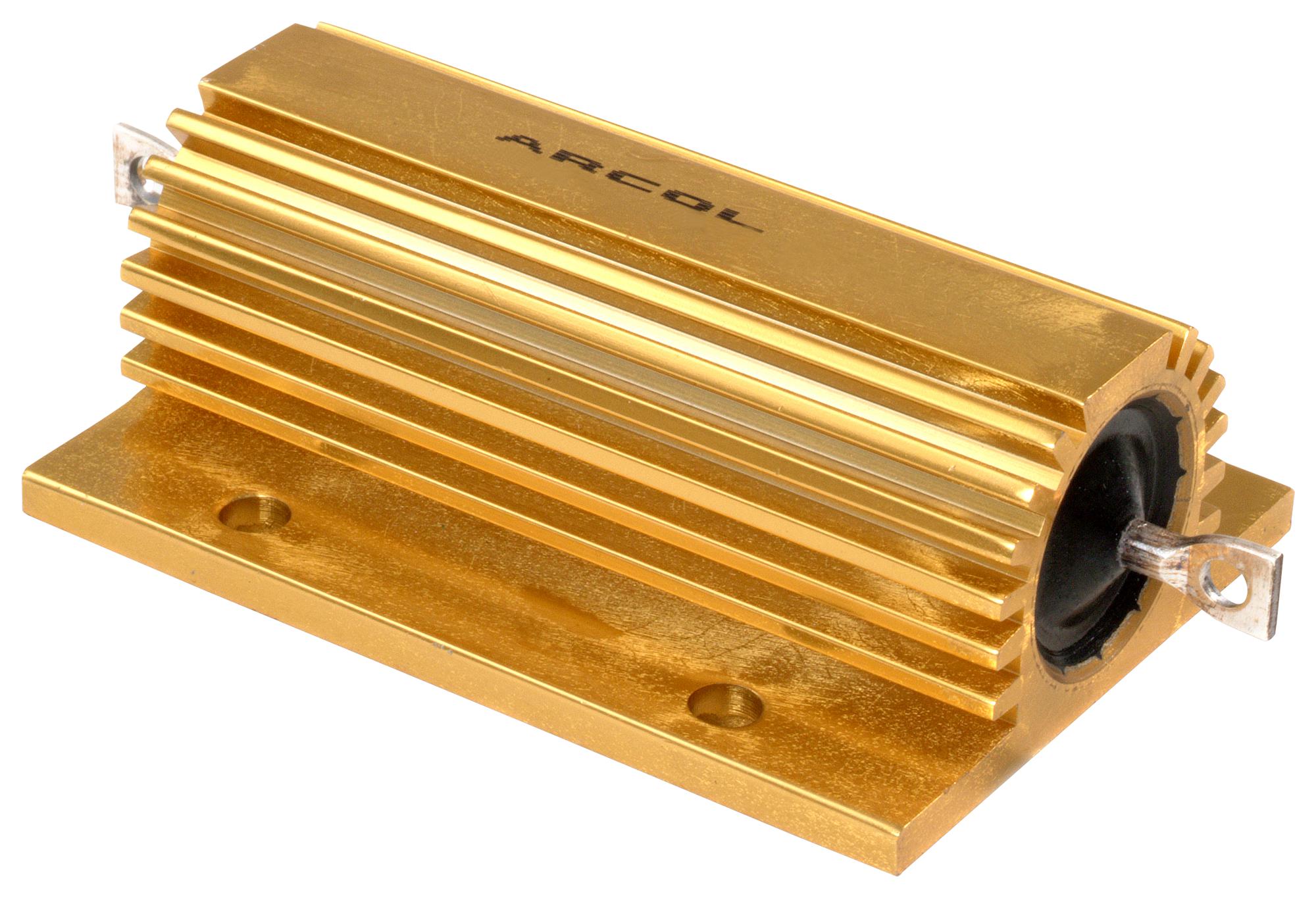

Buy the Buy Arcol Aluminium Housed Resistors Part Number HS7522RJ Online
Enhance your electronic and industrial projects with the Arcol aluminium housed resistor, model HS7522RJ. Designed for high power, direct heatsink mounting, and customized ratings, this resistor ensures excellent thermal management and high pulse capability. Its robust construction and compliance with RoHS standards make it ideal for demanding environments requiring precise heat dissipation and durable performance. Order online today to benefit from fast delivery, reliable performance, and tailored solutions for your specific application needs.
Buy Arcol HS7522RJ aluminium housed resistor now and experience reliable high pulse capability with optimal heat dissipation and customizable ratings.
Frequently Asked Questions
Where can I buy Ohmite HS7522RJ?
You can click on the BUY or RFQ button to purchase HS7522RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS7522RJ?
You can download the HS7522RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS7522RJ?
Ohmite
