Ohmite HS754R7J High Power Resistor
The HS Aluminium Housed Resistors are high-power, durable resistors designed for direct heatsink mounting with thermal compound, meeting MIL 18546 and IEC 115 standards. They feature wound construction for high pulse capability, low inductance (NHS variants), and RoHS compliance. Suitable for applications requiring high power dissipation, these resistors offer a wide resistance range from R005 to 100K, with tolerance options from ±1% to ±10% and temperature coefficients typically below 1K. They are ideal for use in environments demanding reliable high-temperature performance and efficient heat transfer with proper thermal management.
Ohmite HS754R7J High Power Resistor Specifications:
- Power Dissipation: Ranges from 10W to 300W depending on model
- Resistance Range: R005 to 100K
- Tolerance: +5% (J), +10% (K), also available +1% (F), +2% (G), +3% (H)
- Temperature Coefficient: Typically < 1K, 100ppm for standard, < 1K, 25ppm for low TCR options
- Insulation Resistance (Dry): Minimum 10,000 MΩ
- Heat Dissipation: Max surface temp 200°C, requires proper heatsink with thermal compound
- Mounting: Direct heatsink mounting, RoHS compliant, custom designs welcomed
- Voltage Rating: Divide standard maximum working voltage by 1.414 for NHS variants
- Physical Dimensions: Various based on size, e.g., HS10 to HS300 with dimensions in mm specified in datasheet
- Construction: Wound, aluminium-housed, low inductance options available, suitable for high pulse operations

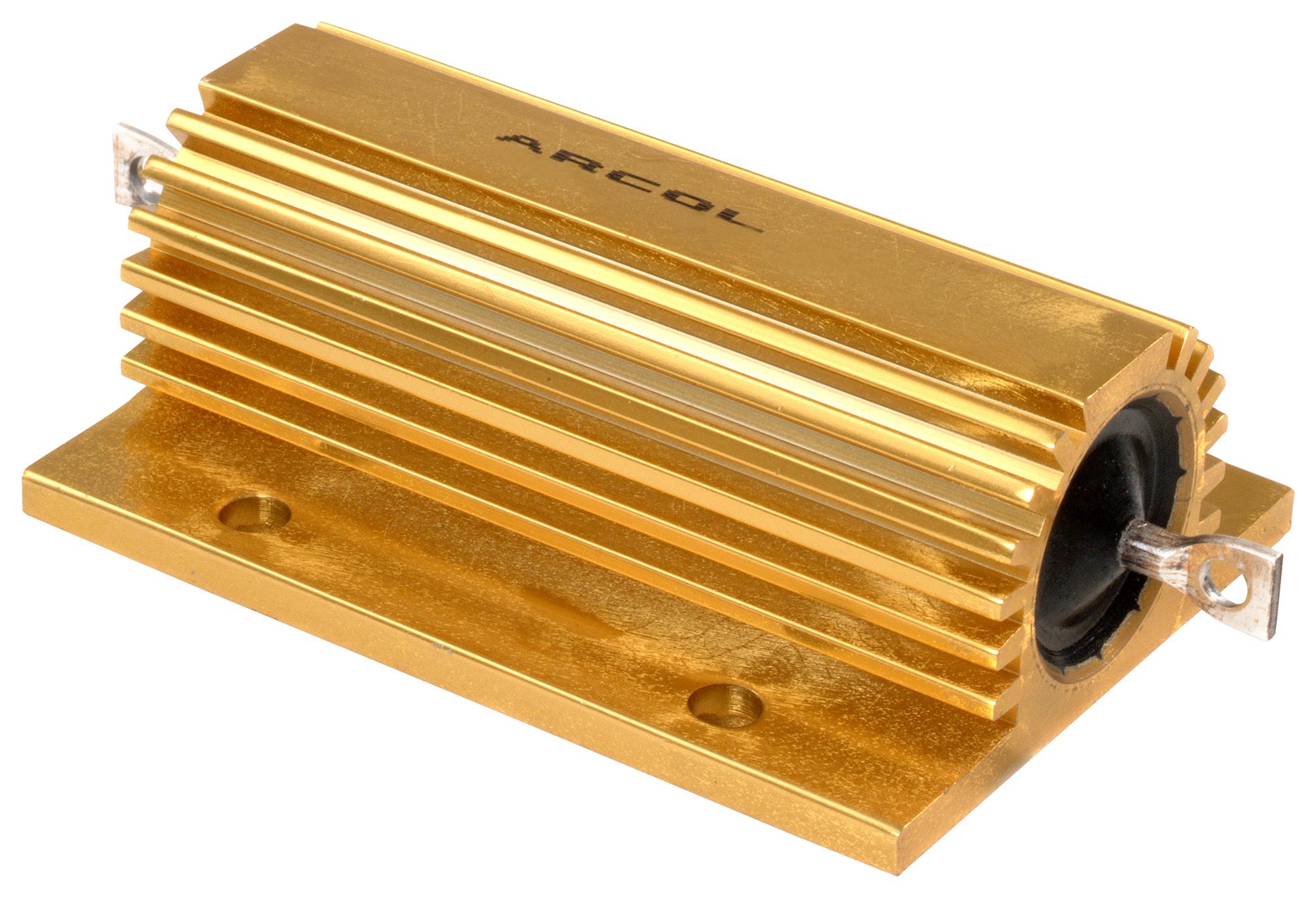

Buy the Buy Arcol High Power Resistors Part Number HS754R7J Online
Purchase the Arcol HS754R7J aluminium-housed resistor online today for high power applications. Designed for direct heatsink mounting with thermal compound, this resilient resistor offers high pulse capability, low inductance, and robust performance across a resistance range from R005 to 100K. Suitable for demanding environments, it features tolerance options up to ±1%, temperature coefficients below 1K, and complies with RoHS standards. Ensure optimal heat transfer with proper thermal management, making it an ideal choice for industrial and high-power electronic systems requiring long-lasting durability and reliable operation.
Get Arcol HS754R7J high power aluminium-housed resistor today—engineered for reliable high pulse performance and efficient heat dissipation.
Frequently Asked Questions
Where can I buy Ohmite HS754R7J?
You can click on the BUY or RFQ button to purchase HS754R7J from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS754R7J?
You can download the HS754R7J datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS754R7J?
Ohmite
