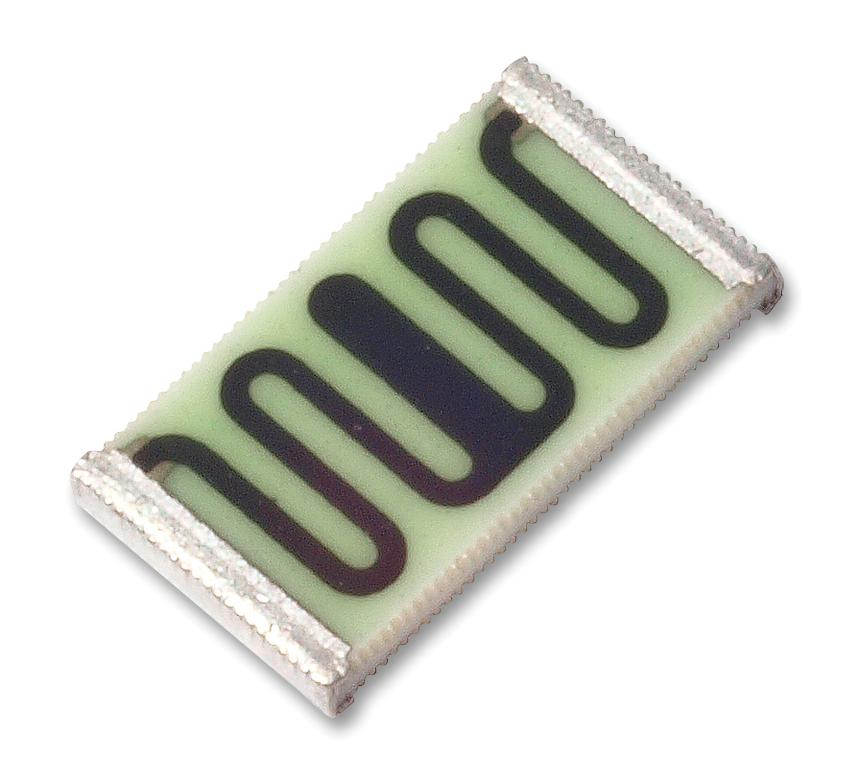

Ohmite HVC0603T2505FET High-Voltage Wraparound Chip Resistor
The HVC series consists of high-value, high-voltage wraparound chip resistors utilizing thick film technology, capable of operating up to 3000V. Designed for applications requiring high vacuum environments, these resistors feature low temperature and voltage dependency, with contact areas made from nickel-barrier/matte tin. Available in various sizes including 0402, 0603, 0805, 1206, 2512, and 4020, they offer power ratings from 50mW to 1500mW, and resistance ranges from 100k Ohm to 10G Ohm. Their robust construction ensures long-term stability and high reliability in demanding electronic circuits.
Ohmite HVC0603T2505FET High-Voltage Wraparound Chip Resistor Specifications:
- Series: HVC0402, HVC0603, HVC0805, HVC1206, HVC2512, HVC4020
- Wattage: 50mW to 1500mW
- Operating Voltage: 30V to 4000V
- Resistance Range: 100k Ohm to 10G Ohm
- Resistance Tolerance: 0.5% to 30%
- Temperature Range: -55°C to +155°C
- Climatic Category: 55/155/56
- Solderability: Max 260°C for 10s
- Peak Process Temperature: 260°C for 10s
- Material: Base Metal PdAg, Nickel barrier, Matte Sn finish
- Dimensions vary: 0402 (1.04mm L), 0603 (1.50mm L), 0805 (2.00mm L), 1206 (3.20mm L), 2512 (6.30mm L), 4020 (10.20mm L)
- Max working voltage up to 4000V, high vacuum compatibility, low TCR and VCR
- Long-Term Stability: <1G <10G 210G for smaller sizes; <2% resistance change after load and storage tests
Buy the Buy High-Voltage Wraparound Chip Resistors Part Number HVC0603T2505FET Online
Order the high-voltage wraparound chip resistor HVC0603T2505FET online today and benefit from its excellent high-voltage performance, low TCR, and high vacuum compatibility. This resistor offers a robust design suitable for demanding applications, including high vacuum and high-voltage circuits. With precise resistance ranges and stable long-term operation, it is ideal for technical and industrial use. Purchase now to ensure you have reliable, high-quality resistors supporting your project's success and durability.
Buy High-Voltage Wraparound Chip Resistors HVC0603T2505FET now and experience unmatched reliability and high voltage stability in your electronic designs.
Frequently Asked Questions
Where can I buy Ohmite HVC0603T2505FET?
You can click on the BUY or RFQ button to purchase HVC0603T2505FET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0603T2505FET?
You can download the HVC0603T2505FET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0603T2505FET?
Ohmite
