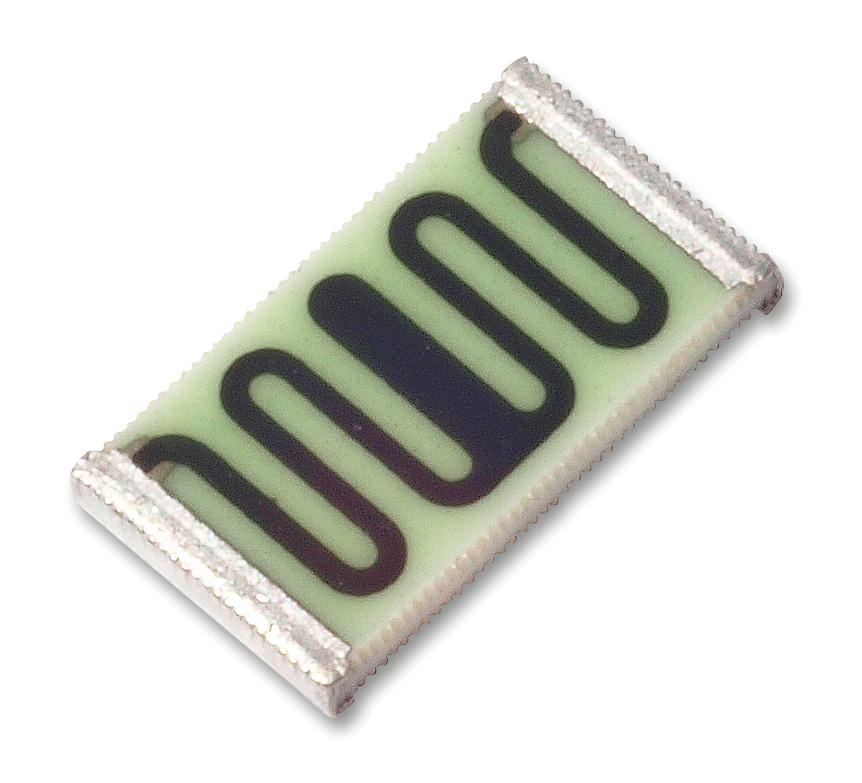

Ohmite HVC0603T5005FET High-Voltage Wraparound Resistor
The high-value high-voltage wraparound chip resistors feature thick film technology, supporting low temperature and voltage dependency (low TCR and VCR), with high working voltage up to 3000V. Suitable for high vacuum environments with no organic materials, they have nickel-barrier/matte tin contact areas and wraparound terminals. Available in multiple series and sizes including 0603, 0805, 1206, 2512, and 4020, these resistors ensure long-term stability, high power dissipation, and compliance with RoHS standards, ideal for demanding industrial applications.
Ohmite HVC0603T5005FET High-Voltage Wraparound Resistor Specifications:
- Series: HVC0603, HVC0805, HVC1206, HVC2512, HVC4020
- Wattage: 100mW (0603), 125mW (0805), 250mW (1206), 1W (2512), 1.5W (4020)
- Operating Voltage: Up to 6000V depending on series
- Resistance Range: 100k-100M ohms, >100M-1G, >1G-10G, >10G-100G, >100G-1T
- Resistance Tolerance: 0.5-10%
- Temperature Range: -55°C to +155°C
- Soldering Temperature: Max 260°C for 10s
- Max. Solder Temperature: 250°C, 3s
- Load Life Stability: <1% variation over 1000 hours at 70°C
- Storage Stability: <2% over 1000 hours at 125°C
- Construction: Metal base, Ni barrier, matte Sn finish, 5 microns thickness
- Dimensions (mm): 0603: 1.50 x 0.80 x 0.40; 0805: 2.00 x 1.25 x 0.40; 1206: 3.20 x 1.50 x 0.40; 2512: 6.30 x 3.50 x 0.60; 4020: 10.20 x 5.10 x 0.60
Buy the Ohmite HVC0603 – Reliable High-Voltage Wraparound Chip Resistors for Industrial Applications
Purchase Ohmite high-voltage wraparound chip resistors online to enhance your industrial applications. These resistors offer exceptional stability, high power dissipation up to 6000V, and low temperature dependency. Ideal for high vacuum environments, they feature thick film technology with nickel barrier and matte tin finish for reliable performance. Available in multiple sizes including 0603 and 1206, their high resistance range and stability make them perfect for demanding industrial projects. Order today for fast shipping and expert support.
Get Ohmite HVC0603T5005FET today—built for precision and long-lasting durability in high-voltage environments.
Frequently Asked Questions
Where can I buy Ohmite HVC0603T5005FET?
You can click on the BUY or RFQ button to purchase HVC0603T5005FET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0603T5005FET?
You can download the HVC0603T5005FET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0603T5005FET?
Ohmite
