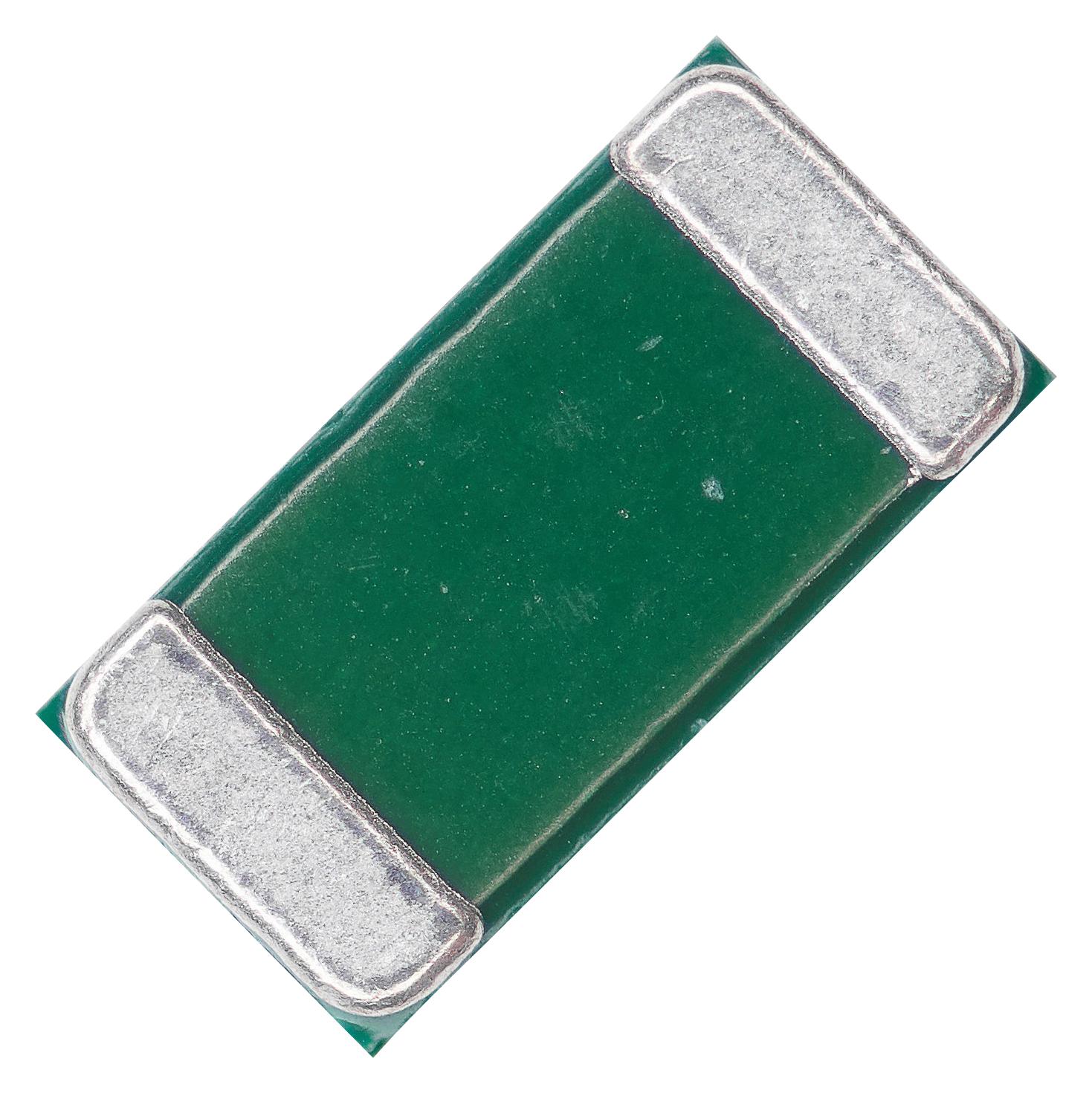

Ohmite JR0201X08E High Power Jumper Chip
The Ohmite JR series high power jumper chip offers exceptional current handling up to 100 amps and a resistance range as low as 0.2 milliohms. Available in six standard sizes from 0201 to 2512, these jumpers feature high insulation resistance over 100M ohms, making them suitable for high-current applications where minimal resistance and maximum insulation are critical. They are constructed with copper resistive elements, coated with epoxy resin, and are compatible with wave and reflow soldering methods, ensuring durability and reliable performance in demanding electronic circuits.
Ohmite JR0201X08E High Power Jumper Chip Specifications:
- Maximum current handling: 100 amps
- Resistance range: 0.2m to 0.5m ohms
- Resistance: <0.2mΩ in size 2512 and below
- Insulation resistance: over 100M ohms
- Temperature rating: operating up to 150°C, derating at 170°C (2512)
- Construction: Copper resistive element with epoxy resin coating
- Soldering: Suitable for wave and reflow methods, preheating and temperature limits specified
- Physical sizes: 0201, 0402, 0603, 0805, 1206, 2512 with respective dimensions
- Maximum power: varies by size, up to 2W for 2512
- Standards: IEC60115-1 compliant for testing procedures
- Operating temperature range: -55°C to +150°C
- Moisture and thermal shock resistance: tested per standards
- Packaging: Tape and reel options available for automated assembly
Buy the Buy Ohmite High Power Jumper Chip Part Number JR0201X08E Online
Purchase the Ohmite High Power Jumper Chip JR0201X08E online today and experience exceptional current handling up to 100 amps combined with very low resistance of 0.2 milliohms. This jumper is designed for high-current applications requiring minimal resistance and maximum insulation resistance, exceeding 100M ohms for reliable performance. Crafted with copper resistive elements and epoxy resin coating, it’s compatible with wave and reflow soldering techniques. Ideal for demanding electronic circuits, this product ensures durable, consistent performance for your project needs.
Order your Ohmite Series JR High Power Jumper Chip JR0201X08E today and enhance your high-current circuit reliability with these durable, low-resistance jumpers.
Frequently Asked Questions
Where can I buy Ohmite JR0201X08E?
You can click on the BUY or RFQ button to purchase JR0201X08E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part JR0201X08E?
You can download the JR0201X08E datasheet or visit the Ohmite website for support.
Who is the manufacturer of JR0201X08E?
Ohmite
