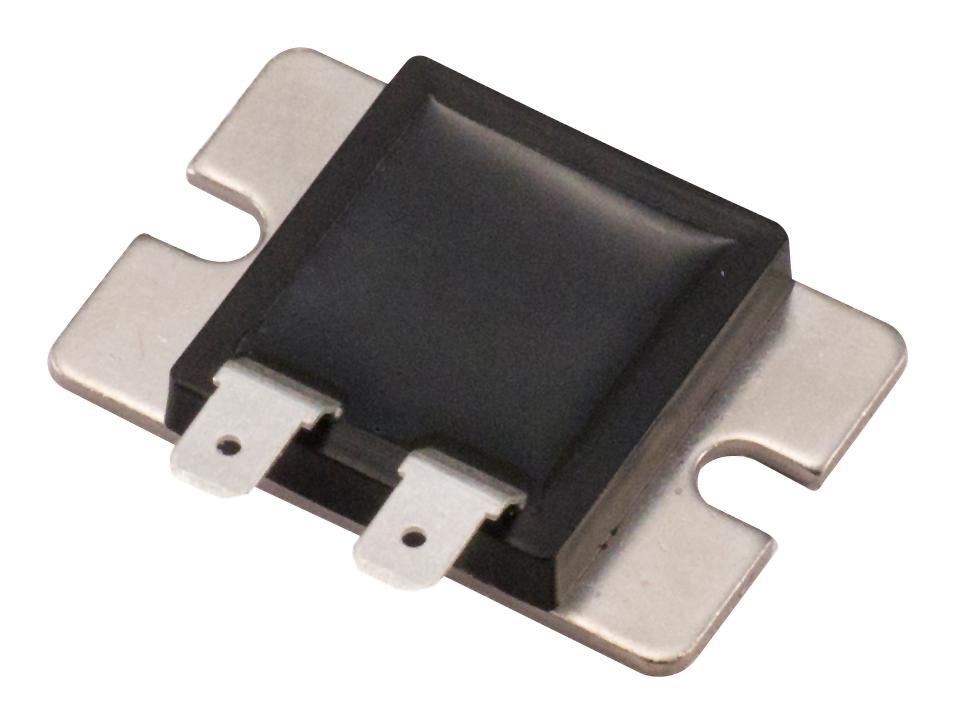

Ohmite TGHMVR100JE High Power Resistor
The TGHM Series high-power resistors are designed for applications requiring up to 300 watts of power dissipation with efficient heatsinking at 25°C. Featuring #187 quick connect terminals for easy installation, these vibration-proof, high-density resistors handle up to 2000 volts withstanding voltage, making them suitable for harmonic filters, snubber circuits, surge protection, and automotive electronics. Constructed with a nickel-plated copper flange and epoxy resin case, they provide reliable performance with low thermal resistance, excellent insulation resistance, and tested durability under vibration, humidity, and temperature cycling conditions. Ideal for power electronics and high-frequency amplifier systems.
Ohmite TGHMVR100JE High Power Resistor Specifications:
- Power Rating: 300 Watts at flange temperature -55°C to +25°C
- Resistance Range: 0.19 to 1MQ (E24+Modified)
- Maximum Voltage: 1000V, Withstanding Voltage: 2000 VAC for 60 seconds
- Thermal Resistance: 0.23 °C/W from resistor to flange
- Resistance Tolerance: ±5% (J)
- Temperature Range: -55°C to +175°C (operation), -55°C to +155°C (temperature cycle)
- Insulation Resistance: Over 1000MQ between terminals and flange
- Vibration Resistance: IEC 60068-2-6, displacement 0.75mm or acceleration 100m/sec²
- Case Material: Glass fiber filled PA6 resin, Flange Material: Ni-plated copper
- Weight: 24 grams
- Mounting Torque: 1.6 Nm max, 1.0 Nm recommended
- Construction: Alumina ceramic substrate, epoxy resin molding, #187 quick connect terminals
- Flammability: UL94V-0
Buy the Buy Ohmite TGHM Series High-Power Resistor Part Number TGHMVR100JE Online
Purchase the Ohmite TGHM series high-power resistor online today to achieve dependable, high-performance power dissipation up to 300 watts. Designed with quick-connect terminals for easy installation, it offers vibration-proof durability and withstands up to 2000V. Ideal for harmonic filters, snubber resistors, surge protection, and automotive electronics, this resistor features a durable construction with a nickel-plated copper flange and epoxy resin case. Order now to ensure your power electronics projects benefit from reliable, high-quality components.
Order your Ohmite TGHMVR100JE high-power resistor today and ensure reliable, high-capacity performance for power electronics and surge protection projects.
