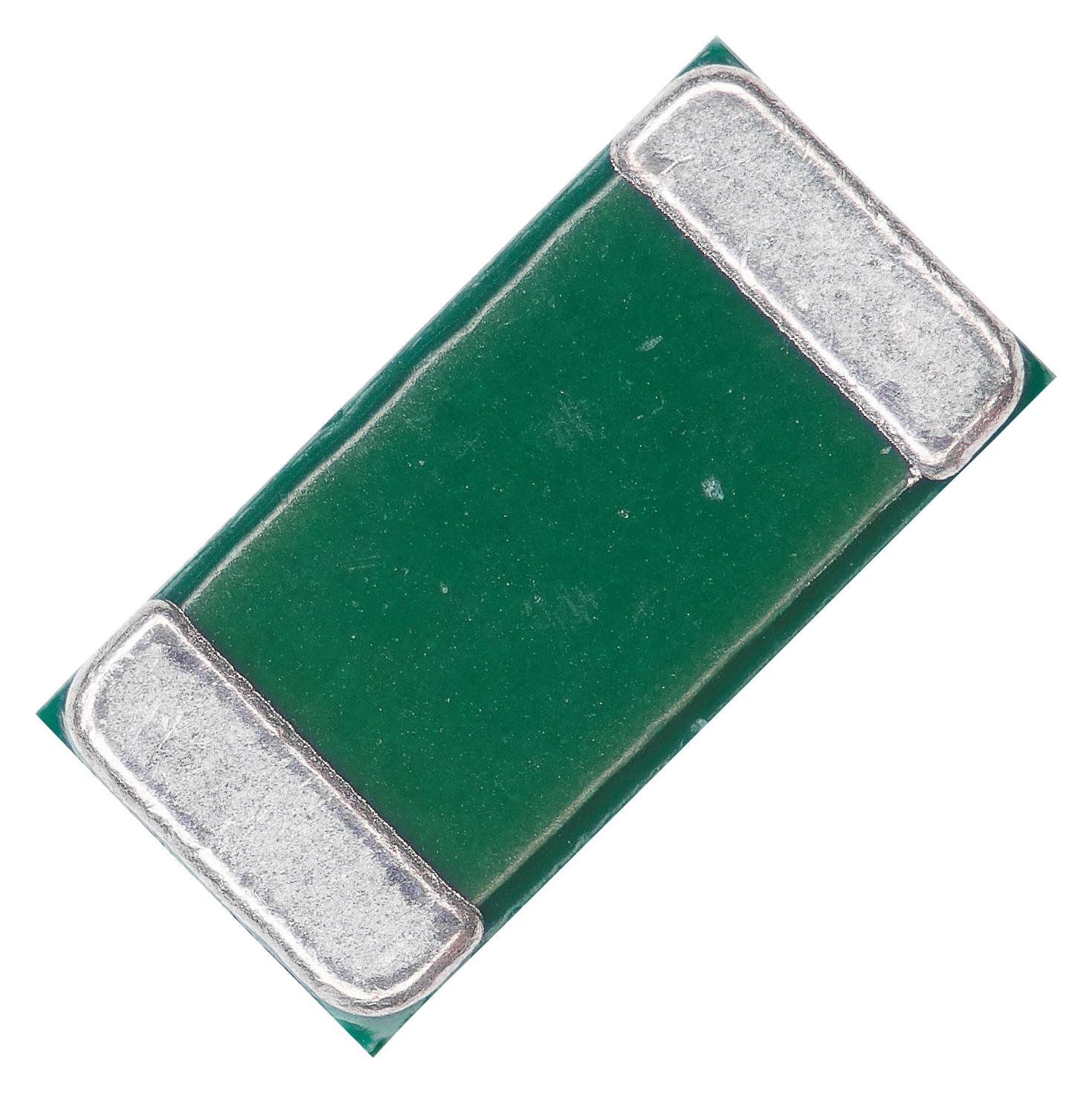

Ohmite JR0402X20E High Power Jumper Chip
The Ohmite JR series high power jumper chip offers reliable high current handling up to 100 amps and low resistance values ranging from 0.5m to 0.2m ohms. Designed for circuit minimization, it features five sizes from 0402 to 2512, ensuring versatile applications. With insulation resistance over 100M ohms and excellent thermal stability up to 170°C for larger sizes, these jumper chips provide durable performance and stable electrical connections. Crafted with copper and epoxy resin for insulation, they undergo rigorous testing for moisture, thermal shock, and solderability, ensuring high reliability in demanding electronic environments.
Ohmite JR0402X20E High Power Jumper Chip Specifications:
- Series: JR0402X20E, JRO603X26E, JRO805X35E, JR1206X40E, JR2512X100E
- Max Resistance: 0.5m to 0.2m ohms
- Max Current: 20A to 100A depending on size
- Insulation Resistance: >100M ohms
- Temperature Rating: -55°C to 170°C (size dependent)
- Construction: Copper resistive element, epoxy resin coating
- Soldering: Wave, reflow, with preheat and controlled temperature profiles
- Size Dimensions: From 0402 to 2512 package sizes
- Storage Conditions: Up to 2 years in temp. 10°C-40°C, humidity 75%
- Humidity Resistance: 60-220% RH, tested at 85°C/85% RH
- Application: High current jumper, circuit protection, high power electronic modules
Buy the Buy Ohmite High Power Jumper Chip Part Number JR0402X20E Online
Experience reliable high current jumper solutions with the Ohmite JR series. Designed to handle up to 100 amps with resistance as low as 0.2 milliohms, these jumper chips are perfect for minimizing circuit effects and ensuring stable performance. Available in five sizes from 0402 to 2512, they feature excellent insulation resistance exceeding 100M ohms and can operate in temperatures up to 170°C. Constructed with durable copper and epoxy coatings, they are tested against thermal shock, moisture, and soldering stresses for optimal reliability in demanding environments. Purchase online today for fast delivery and high-quality performance for your electronic projects.
Get Ohmite JR0402X20E today—built for high current and long-lasting durability in demanding electronic applications.
Frequently Asked Questions
Where can I buy Ohmite JR0402X20E?
You can click on the BUY or RFQ button to purchase JR0402X20E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part JR0402X20E?
You can download the JR0402X20E datasheet or visit the Ohmite website for support.
Who is the manufacturer of JR0402X20E?
Ohmite
