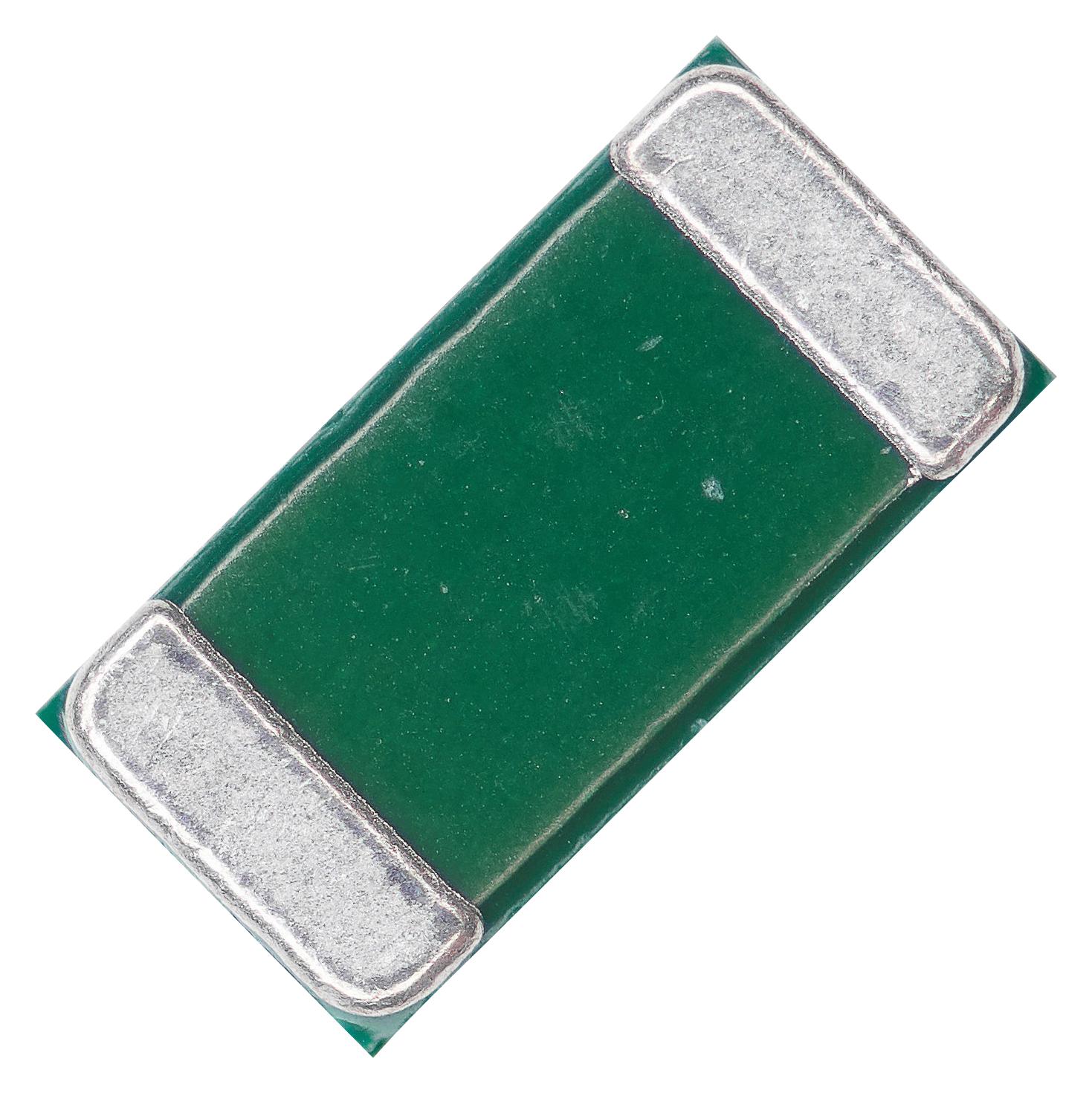

Ohmite JR1206X40E High Power Jumper Chip
The JR series high power jumper chip offers reliable high current handling up to 100 amps and low resistance below 0.2 milli-ohms. Designed for high-performance applications, it features excellent insulation resistance over 100M ohms and several sizes from 0402 to 2512. This jumper is ideal for minimizing circuit effects with a maximum temperature derating of 170°C on larger sizes. Its construction includes a Cu resistive element with epoxy resin coating, and it meets IEC and JIS standards for thermal cycling, solderability, and moisture resistance, ensuring durability and consistent performance in demanding environments.
Ohmite JR1206X40E High Power Jumper Chip Specifications:
- Series: JR1206X40E
- Resistance: <0.2m ohms
- Maximum Current: 100 Amps
- Maximum Resistance: 0.2m ohms
- Insulation Resistance: Over 100M ohms
- Operating Temperature Range: -55°C to +170°C
- Rated Temperature: 70°C ambient, 70°C to 170°C for 2512 size
- Construction: Copper resistive element with epoxy resin coating
- Soldering: Reflow at 220°C to 265°C, wave soldering preheat 100-130°C
- Dimensions vary by size, e.g., 0402 to 2512, detailed in datasheet
- Standards: IEC60115-1, JIS C 5201-1
- Storage Temperature: -25°C to +25°C, humidity 60-220%
- Features: High current handling, low resistance, multiple industry-standard sizes
Buy the Buy Ohmite JR Series High Power Jumper Chip Part Number JR1206X40E Online
Purchase the high power jumper chip online for its robust 100A current handling capacity, low resistance below 0.2m ohms, and multiple sizes including 0402 and 2512. Designed with high insulation resistance exceeding 100M ohms, this jumper ensures durable, low-loss circuit connections in demanding environments. Its construction includes copper resistive elements with epoxy resin coating, meeting IEC and JIS standards for thermal cycling, solderability, and moisture resistance. Ideal for engineers seeking reliable high-current interconnections, available for immediate online purchase.
Buy Ohmite JR1206X40E now and experience unmatched reliability and performance for high current applications.
Frequently Asked Questions
Where can I buy Ohmite JR1206X40E?
You can click on the BUY or RFQ button to purchase JR1206X40E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part JR1206X40E?
You can download the JR1206X40E datasheet or visit the Ohmite website for support.
Who is the manufacturer of JR1206X40E?
Ohmite
