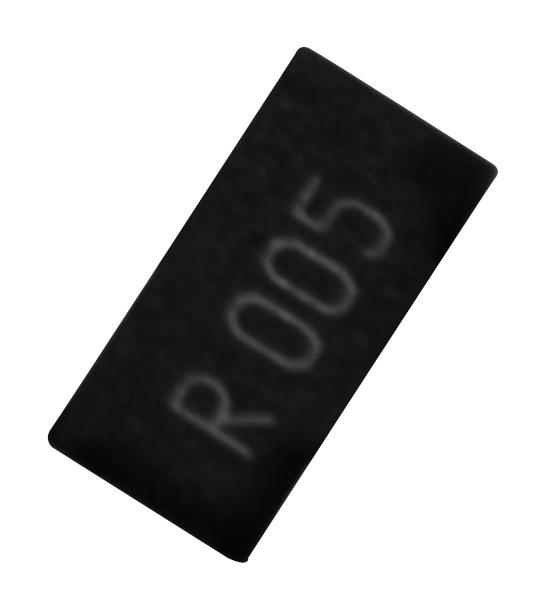

Ohmite LVT12R0030GER Current Sense Resistor
The Ohmite LVT series features metal alloy strip resistors ideal for current sensing. With resistance values from 2mΩ to 20mΩ, they offer excellent TCR stability as low as 50ppm and tolerances down to 1%. Suitable for high-temperature environments from -55°C to 155°C, these resistors have a power rating up to 1.0W and are constructed with epoxy resin coating and tin-plated terminals for durability. They meet UL-94V-0 requirements and are designed for reliable operation in various industrial applications, including power management and electronic circuits.
Ohmite LVT12R0030GER Current Sense Resistor Specifications:
- Resistance Range: 2mΩ to 20mΩ
- Power Rating: 0.33W to 1.0W based on size
- Temperature Range: -55°C to 155°C
- Resistance Tolerance: 1%, 2%, 3%
- Temperature Coefficient: 50, 75, 100, 150 ppm/°C
- Coating Material: Epoxy resin
- Terminals: Tin-plated
- Operating Temp. Range: -55°C to +155°C
- Rated Ambient Temperature: +70°C
- Storage Conditions: Airtight, 2 years at +10°C to +40°C, Humidity <75%
- Solderability and Resistance to Solder Heat: Meets industry standards
- Electrical & Mechanical Shock, Vibration, Bending Tolerance: Meets IEC standards
Buy the Ohmite R1020 – Reliable Current Sense Resistors for Industrial Applications
Enhance your electronic assemblies and power circuits with the durable Ohmite current sense resistor from the LVT series. Designed for high stability, low resistance, and tight tolerances, this resistor ensures accurate current measurement and dependable performance under harsh conditions. Its wide temperature range and RoHS compliance make it suitable for various industrial, automotive, and power management applications. Order online now to get this high-quality resistor shipped quickly, ensuring your project’s success with proven reliability and performance excellence.
Order your Ohmite SeriesLVT12R0030GER current sensing resistor today and ensure precise, stable, and reliable power management in your electronic projects.
Frequently Asked Questions
Where can I buy Ohmite LVT12R0030GER?
You can click on the BUY or RFQ button to purchase LVT12R0030GER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT12R0030GER?
You can download the LVT12R0030GER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT12R0030GER?
Ohmite
