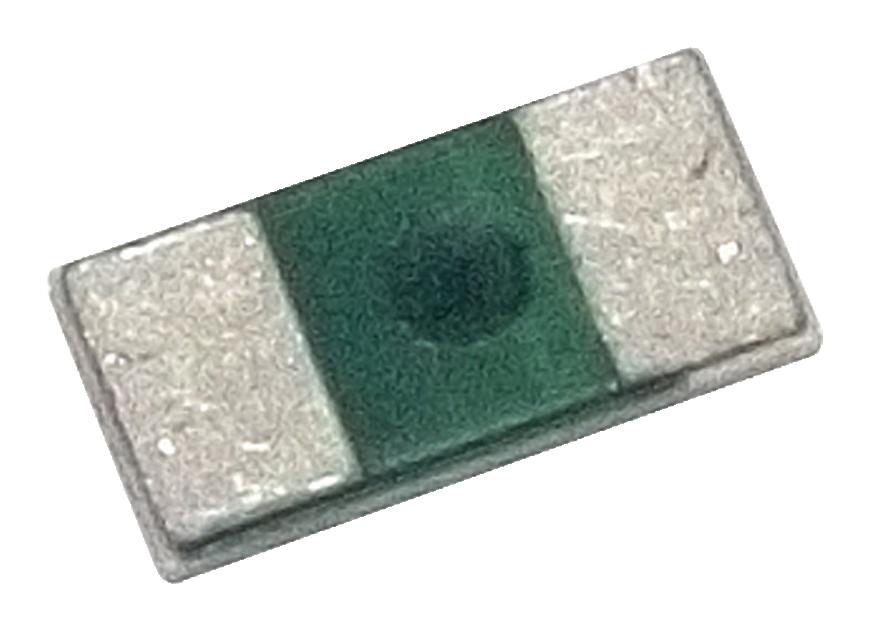

Ohmite MCS1320R015FER Current Sense Resistor
The MCS Series resistive metal alloy current sense components are designed for precision current measurement in industrial and electronic applications. Made with resistive alloys like NiCu or MnCu, these SMD devices feature ultra-low resistance values ranging from 0.00592 to 0.05022 ohms, with low TCR (<50ppm/°C) and low thermo EMF (<50μV/°C). They are suitable for power supply, motor control, automotive electronics, and white goods. With ceramic substrates, UL-94-V0 flame retardant coatings, and Pb-free terminals, these components ensure durability, safety, and high performance under demanding conditions.
Ohmite MCS1320R015FER Current Sense Resistor Specifications:
- Resistance Range: 0.00592 ~ 0.05022 ohms
- Power Rating (@70°C): 0.75W, 1W, 2W depending on series
- Resistance Tolerance: ±1%, ±3%, ±5%
- Temperature Coefficient of Resistance: <50ppm/°C
- Material: NiCu or MnCu resistive alloy, copper terminal electrodes with Pb-free termination (60% Sn, 40% Ni)
- Physical Dimensions: Varies by series with typical sizes around 8.00×4.00 mm to 12.00×4.00 mm, typical thickness 0.1 mm
- Ambient & Operating Temperature Range: -55°C to +155°C
- UL Flame-Retardant Coating: Meets UL-94 V-0 standard
- Solder Profile: Preheating at 145°C, soldering at 220°C for up to 60 sec., Max temp 260°C for 45 sec.
- Endurance: 1000 hours at rated current, high temperature and humidity tested
- Mechanical Shock Resistance: Tested at 10N for 10 sec.
Buy the Ohmite Series MCS Current Sense Resistors: MCS1320R015FER
Order the Ohmite MCS1320R015FER today for high-precision current sensing in industrial, automotive, and power electronics. With ultra-low resistance, low TCR, and UL-flame retardant coating, these resistors deliver reliable and durable performance. Designed with resistive alloys like NiCu for stability and Pb-free terminals for safety, they suit demanding applications requiring precise measurement and thermal stability. Easy to install, compliant with RoHS, and capable of withstanding harsh conditions, these resistors are ideal for power supplies, motor controllers, telecom, and white goods. Buy online now for fast delivery and consistent quality.
Get Ohmite MCS1320R015FER today—built for precision low-resistance sensing and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy Ohmite MCS1320R015FER?
You can click on the BUY or RFQ button to purchase MCS1320R015FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MCS1320R015FER?
You can download the MCS1320R015FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of MCS1320R015FER?
Ohmite
