Ohmite HVC4020V1008KET High-Voltage Chip Resistor

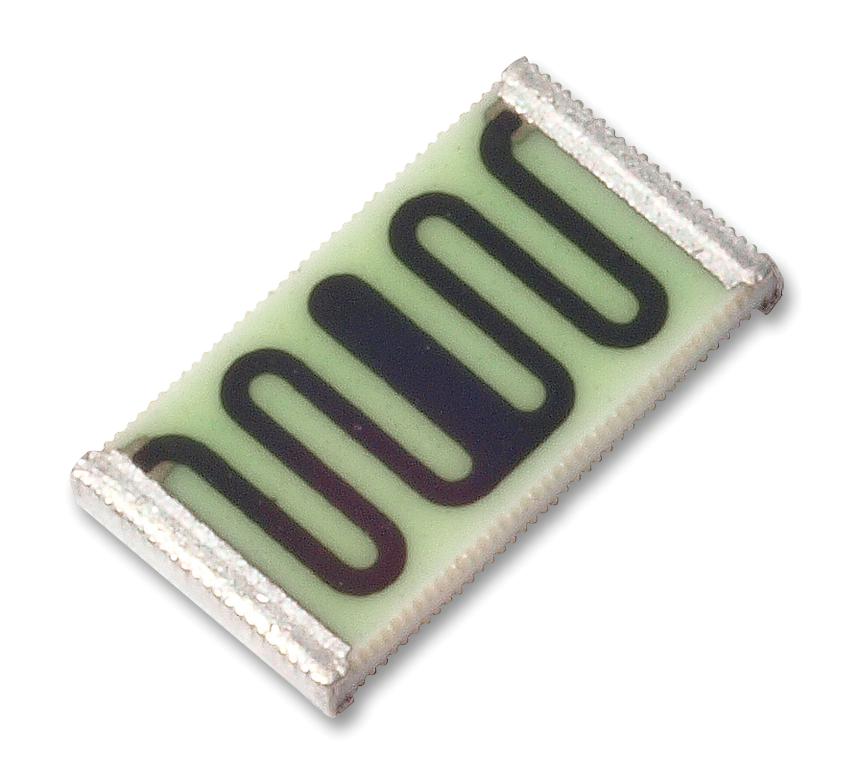

The HVC4020 High-Voltage Wraparound Chip Resistor is designed for high vacuum applications and offers high working voltage up to 3000V. With thick film technology, it features low temperature and voltage dependency, ensuring stable performance across extreme conditions. Its robust construction includes Nickel-barrier/matte tin contact areas and a sintered metal base with electroplated matte Sn finish. Suitable for precise high-voltage needs, it boasts excellent long-term stability, high reliability, and RoHS compliance, making it ideal for industrial, high voltage, and high vacuum environments requiring durable, high-performance resistors.
Ohmite HVC4020V1008KET High-Voltage Chip Resistor Specifications:
- Size: 4020 (mm): Length 10.20, Width 5.10, Thickness 0.60
- Power Rating: 1500 mW at 70°C
- Resistance Range: 100kΩ to 10GΩ
- Maximum Oper. Voltage: 4000V
- Material: Sintered metal base with Ni barrier and matte Sn finish
- Termination Finish: 100% electroplated matte Sn, 5 microns thick
- Temperature Range: -55°C to +155°C
- Soldering Temperature: 260°C for 10 seconds
- Long Term Stability: <1% resistance change after 1000 hours at 125°C
- Operating Temperature: -55°C to +155°C
- Climatic Category: 55/155/56
- TCR/VCR: 50, 100 ppm TCR; 500 ppm VCR
- RoHS compliant
Buy the Omnitech High-Voltage Resistors – Reliable Wraparound Chip for Industrial Applications
Order the Omnitech High-Voltage Wraparound Chip Resistor online today and enhance your high-voltage application projects with durable, high-performance components. Designed for stability, high reliability, and extreme conditions, this resistor provides excellent resistance to temperature variation and long-term stability. With a maximum working voltage of 4000V and resistance range from 100kΩ to 10GΩ, it suits precise high-voltage circuits in high vacuum and industrial applications. Purchase now to ensure your equipment's reliability and performance.
Buy Omnitech HVC4020 high-voltage wraparound chip resistor now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Ohmite HVC4020V1008KET?
You can click on the BUY or RFQ button to purchase HVC4020V1008KET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC4020V1008KET?
You can download the HVC4020V1008KET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC4020V1008KET?
Ohmite
