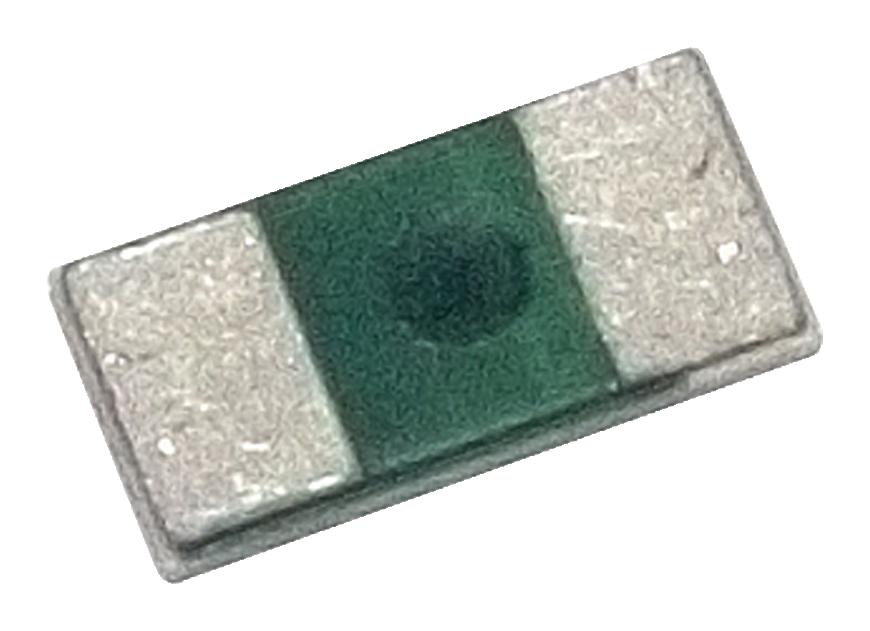

Ohmite MCS1320R020FER Current Sense Resistor
The MCS Series resistive metal alloy current sense element offers ultra-low resistance values ranging from 0.00592 to 0.05022 mOhm, constructed with resistive alloys like NiCu or MnCu for low TCR of +10ppm/°K and Cun terminal electrodes with Pb-Free terminations. These SMD components feature UL-94-V0 flame-retardant epoxy coatings, 96% alumina substrates for thermal dissipation, and are designed for applications in industrial electronics, power supplies, motor controllers, automotive electronics, and communication equipment. Series options include 0.75W, 1W, and 2W power ratings, with resistance tolerances of 1% and a broad resistance range suitable for precise current sensing.
Ohmite MCS1320R020FER Current Sense Resistor Specifications:
- Resistance Range: 0.00592 to 0.052 mOhm
- Power Ratings: 0.75W, 1W, 2W at 70°C
- Resistance Tolerance: ±1%, ±3%, ±5%
- Temperature Coefficient of Resistance (TCR): <50ppm/°C
- Ambient Temperature Range: -55°C to +155°C
- Material: Resistive alloys NiCu, MnCu, NiCr20AISi, CuMnNi
- Substrate: Alumina, 96% alumina for thermal dissipation
- Terminal Material: Cu with Pb-Free Sn/Ni plating
- Flame Retardant Coating: UL-94-V0 epoxy
- Maximum Soldering Profile: Min. 220°C for 60 sec
- Dimensions: Vary by series, typical 0.089/2.10 mm x 0.058/1.35 mm x 0.26/0.65 mm
- Compliance: RoHS
Buy the Buy Ohmite MCS Series Current Sense Part Number MCS1320R020FER Online
Order the Ohmite MCS1320R020FER resistive metal alloy current sense resistor online today to ensure precise current measurement in power supplies, motor controllers, and industrial electronic systems. This high-quality SMD component provides ultra-low resistance values with tight tolerances, low TCR, and UL-94-V0 flame-retardant epoxy coating for safety. Its robust construction is suitable for demanding applications, offering excellent thermal dissipation, solderability, and durability under harsh conditions. Purchase online now for fast delivery and competitive pricing.
Buy Ohmite MCS1320R020FER now and experience unmatched reliability and precision in low resistance current sensing for industrial and automotive electronics.
Frequently Asked Questions
Where can I buy Ohmite MCS1320R020FER?
You can click on the BUY or RFQ button to purchase MCS1320R020FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MCS1320R020FER?
You can download the MCS1320R020FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of MCS1320R020FER?
Ohmite
