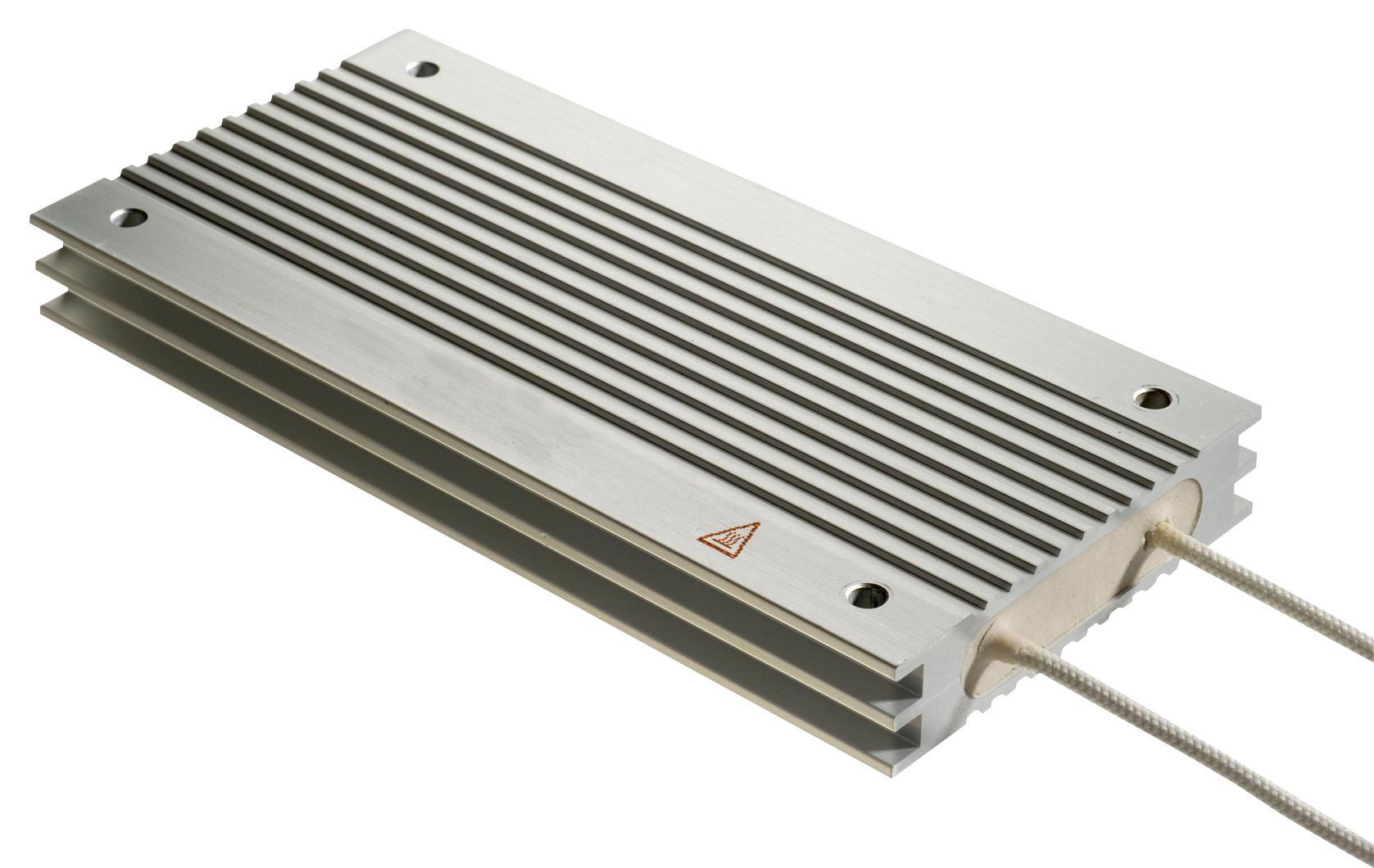

Ohmite ARF50016RJ High Power Wirewound Resistor
The ARF Low Profile Wirewound Metal Clad Resistor offers high pulse capability, low profile, and enhanced power dissipation when heatsink mounted. Designed for braking, inverter, and converter applications, it features a high power density, RoHS compliance, and standard 600V cables. Operating up to +250°C surface temperature with a temperature coefficient below +150ppm/°C, it can handle pulse overloads up to 10x P for 5 seconds and has outstanding insulation resistance of 10GΩ at 500V. Suitable for high-power electronics, this resistor provides reliability, durability, and flexibility in demanding environments.
Ohmite ARF50016RJ High Power Wirewound Resistor Specifications:
- Power Rating: 150W to 600W depending on model
- Resistance Range: 2.2Ω to 2200Ω
- Maximum Surface Temperature: +250°C
- Operating Voltage: 600V (standard)
- Tolerance: +5% (J)
- Temperature Coefficient: < +150ppm/°C
- Insulation Resistance: 10GΩ at 500V
- Test Voltage: 4000V
- Dimensions (mm): ARF150: 80L x 56mm, ARF200: 110L x 86mm, ARF300: 163L x 139mm, ARF400: 216L x 192mm, ARF500: 270L x 246mm, ARF600: 300L x 276mm
- Pulse Overload: 10x P for 5 seconds
- RoHS compliant
- Metal clad, wirewound construction
- High pulse capability for inverter, braking, and power electronics
- Enhanced power dissipation when heatsink mounted
Buy the ARCOL Series ARF High Power Wirewound Resistor: ARF50016RJ
Order the ARCOL ARF50016RJ resistor online today and benefit from high pulse capability, low profile design, and excellent power dissipation. Perfect for inverter, braking, and converter systems, this resistor’s robust construction ensures long-lasting performance in high-temperature environments. With standard 600V ratings and RoHS compliance, it offers flexibility and environmental friendliness. Fast, secure online purchasing allows quick integration into your projects, ensuring reliable operation and versatile application in modern power electronics infrastructure.
Buy ARCOL ARF50016RJ now and experience unmatched reliability and high pulse performance in demanding power electronics applications.
Frequently Asked Questions
Where can I buy Ohmite ARF50016RJ?
You can click on the BUY or RFQ button to purchase ARF50016RJ from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part ARF50016RJ?
You can download the ARF50016RJ datasheet or visit the Ohmite website for support.
Who is the manufacturer of ARF50016RJ?
Ohmite
