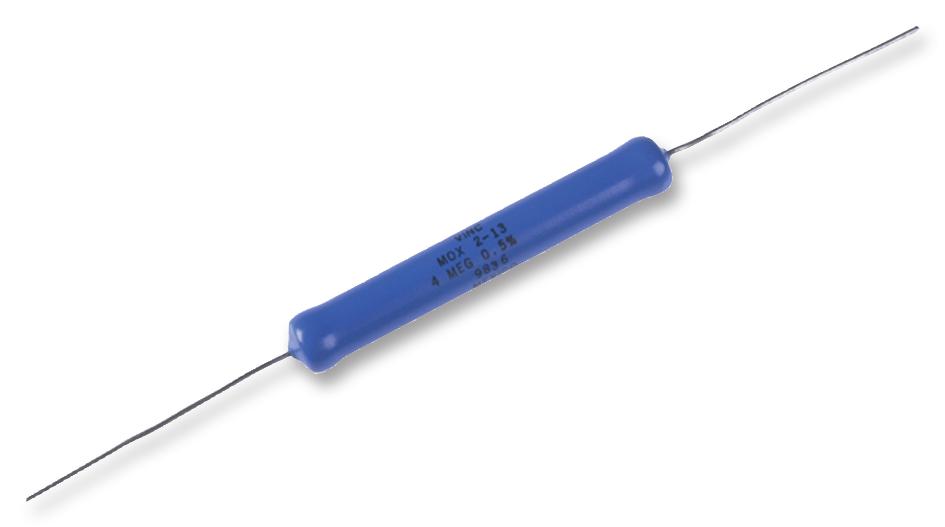

Ohmite MOX1N131005FE High Voltage Precision Resistor
The OHMITE Maxi-Mox resistor is a versatile and robust solution for demanding industrial applications requiring high voltage and power handling capabilities. These precision thick film resistors are ideal for HV power supplies, power distribution, medical instrumentation, and avionics. They offer a wide resistance range, voltage ratings up to 50KV, and power ratings up to 12.5 watts, with options for silicone or epoxy coating. The Maxi-Mox series provides reliable performance in harsh environments and contributes to the safety and efficiency of critical systems.
Ohmite MOX1N131005FE High Voltage Precision Resistor Specifications:
- Resistance Range: 250Ω to 1 Teraohm
- Power Rating: 2.0W to 12.5W
- Voltage Rating: 10KV to 50KV
- Capacitance: 0.30 to 0.75 pf
- Tolerances: 0.1% to 20%
- Core Material: Alumina
- Resistor Type: Thick Film
- Terminal Composition: 96% Sn, 3.5% Ag, 0.5% Cu
- Operating Temperature: -55°C to +210°C
- Temperature Coefficient of Resistance: < 2PPM/Volt
- Humidity: ±0.25%
- Dielectric Withstanding Voltage: ±0.25%
- Insulation Resistance: >10,000 MΩ
- Thermal Shock: ±0.20%
- Load Life: ±1.0%
- Resistance to Solvents: Acceptable
- Terminal Strength: ±0.25%
- Shock: ±0.25%
- Vibration: ±0.20%
- Power Conditioning: ±0.50%
- Solderability: >95% Coverage
- A max: 1.120” / 28.45 (MOX-1-12)
- B max: 0.310” / 7.87 (MOX-1-12)
- lead dia: 1.5” typ. / 0.032” typ.
