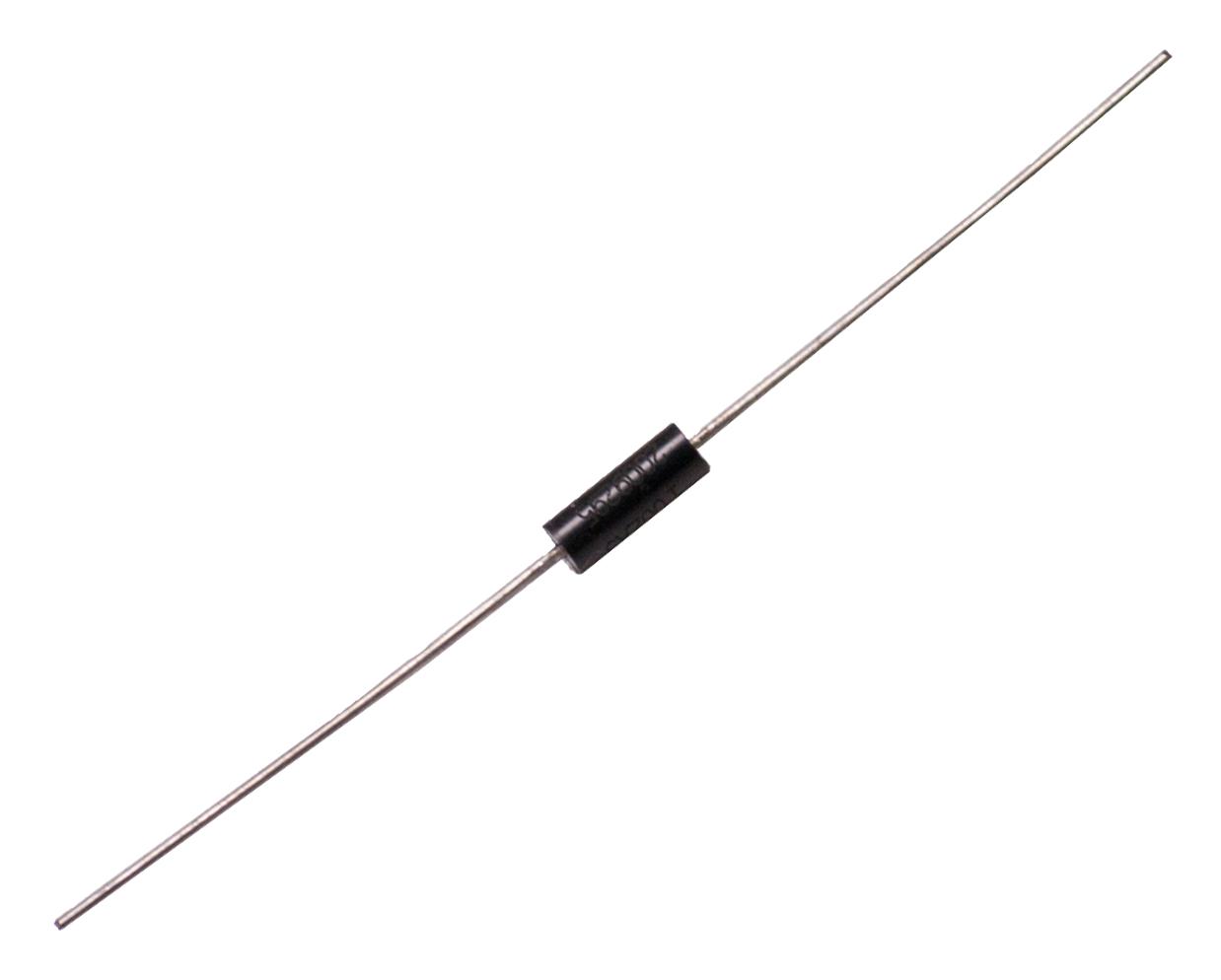

Ohmite MOX70031004BYE Precision Metal Film Resistor
The high precision metal film axial leaded resistor offers very tight tolerance down to +0.02% and extremely low TCR of +5PPM/. Suitable for precision measurement, audio amplifiers, and imaging equipment, it features a ceramic core element, a maximum operating voltage of 250V, and a resistance range from 10Ω to 1MΩ. Its construction includes molded epoxy coating and axial leads. Capable of withstanding temperatures from -55°C to +125°C, it provides excellent stability, low noise, and high reliability for demanding industrial and electronic applications, ensuring accurate and stable performance over time.
Ohmite MOX70031004BYE Precision Metal Film Resistor Specifications:
- Resistance Range: 10Ω to 1MΩ
- Tolerance: +0.02%, +0.05%, +0.1%, +1%
- Power Rating: 0.25 watts @70°C
- Operating Temp. Range: -55°C to +125°C
- Max. Operating Voltage: 250V
- Max. Overload Voltage: 500V
- Construction: Ceramic core element, molded epoxy coating
- Resistance Temperature Coefficient: +5PPM/°C
- TCR: 102 - 500K: +5PPM/°C; 10Ω - 1MΩ: +25PPM/°C
- Solderability: 95% min. coverage at 245°C for 5 seconds
- Insulation Resistance: >1,000 MΩ
- Environmental Conditions: Storage 15-28°C; humidity < 80% RH
- Operating Voltage: 250V, Overload Voltage: 500V
Buy the Buy Precision Metal Film Resistor Part Number MOX70031004BYE Online
Order the MOX70031004BYE high-precision metal film resistor online today. Designed for accuracy and durability, it features 0.02% tolerance, low TCR, and stable performance. Perfect for precision measurement, audio, and imaging equipment, this resistor withstands temperatures from -55°C to +125°C and voltages up to 250V. Its molded epoxy construction ensures long-term stability and reliability, making it ideal for demanding industrial and electronic applications. Purchase now for fast delivery and reliable performance in your projects.
Get MOX70031004BYE high-precision metal film resistor today—built for accuracy, low noise, and long-lasting stability in electronic designs.
Frequently Asked Questions
Where can I buy Ohmite MOX70031004BYE?
You can click on the BUY or RFQ button to purchase MOX70031004BYE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MOX70031004BYE?
You can download the MOX70031004BYE datasheet or visit the Ohmite website for support.
Who is the manufacturer of MOX70031004BYE?
Ohmite
