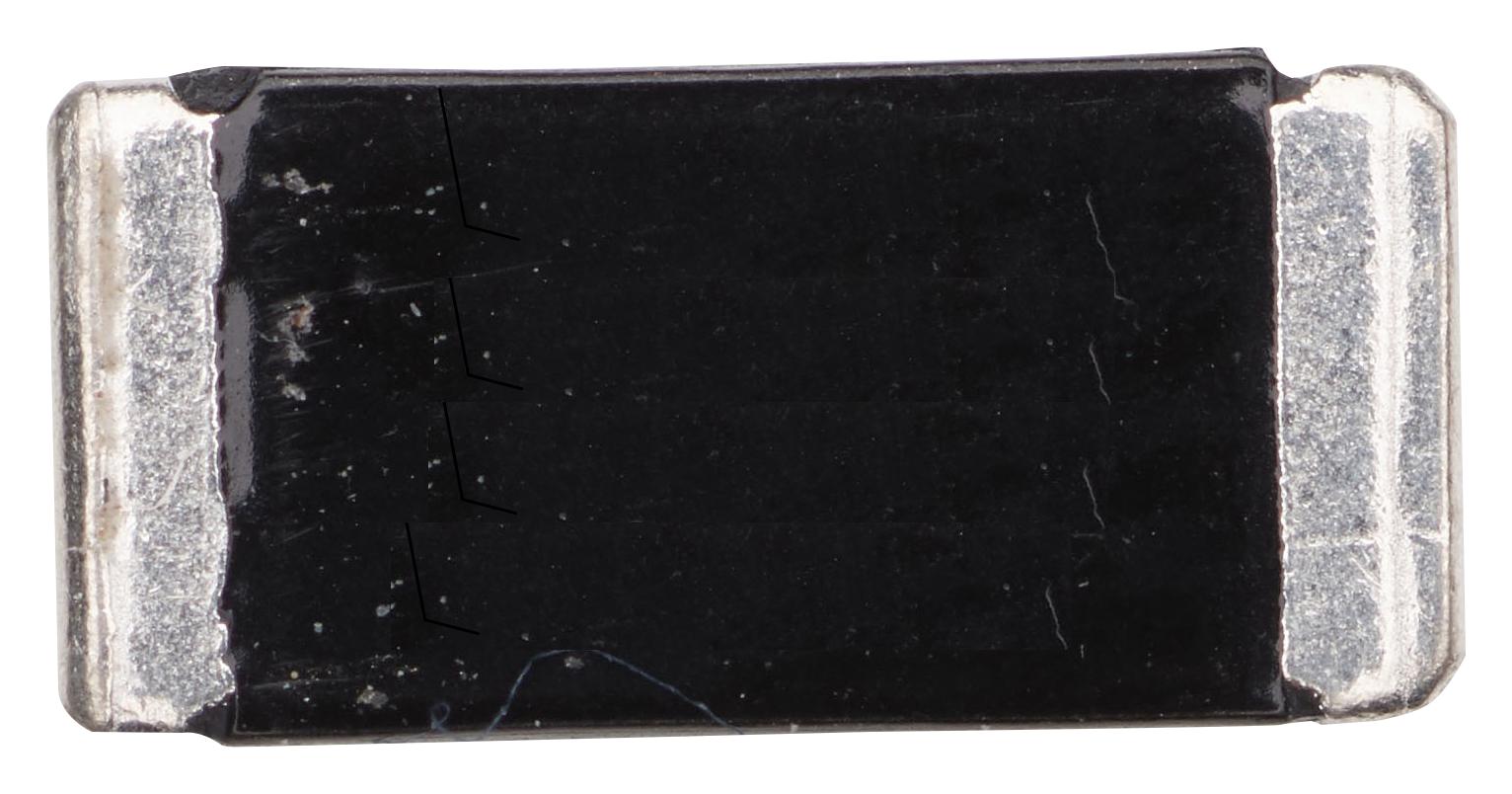

Ohmite PCS1206DR0100ET Low Resistance Chip Resistor
High-precision low resistance chip resistor designed for accurate current sensing and voltage division in electronic circuits. Features include a resistance value range from 0.5mΩ to 50mΩ, low TCR of +50ppm, excellent stability over long-term operation, and compliance with RoHS and halogen-free standards. Suitable for power electronic applications, it offers maximum power ratings up to 4W for various sizes, with a temperature range from -55°C to +170°C. Features such as high overload capacity, solderability, and robust construction ensure reliability in demanding environments.
Ohmite PCS1206DR0100ET Low Resistance Chip Resistor Specifications:
- Resistance Range: 0.5mΩ to 50mΩ
- Power Rating: up to 4W
- TCR: +50ppm
- Temperature Range: -55°C to +170°C
- Resistance Tolerance: ±1%
- Overload Current: 31.62A to 141.42A depending on size
- Material: MnCuSn, FeCrAl
- Soldering Temp: 260°C for 10 seconds
- Operating Temp. Range: -55°C to +170°C
- RoHS compliant, halogen free
- Durability: Excellent long-term stability
- Mechanical: Robust body, terminal strength meet standards
- Peak Soldering Temp: 250°C for reflow soldering
- Storage Conditions: 25°C ±5, 60% humidity
Buy the Buy Ohmite Low Resistance Chip Resistor Part Number PCS1206DR0100ET Online
Order the Ohmite low resistance chip resistor PCS1206DR0100ET online today to ensure precise current sensing and voltage division for your electronic projects. With resistance values from 0.5mΩ to 50mΩ, a power rating up to 4W, and excellent thermal stability, this resistor is ideal for power electronics and sensitive measurement applications. The device features RoHS compliance, halogen-free construction, and a wide operating temperature range from -55°C to +170°C. Purchase now for reliable performance and long-term stability.
Get Ohmite PCS1206DR0100ET today—built for precision, high overload capacity, and long-lasting durability.
Frequently Asked Questions
Where can I buy Ohmite PCS1206DR0100ET?
You can click on the BUY or RFQ button to purchase PCS1206DR0100ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part PCS1206DR0100ET?
You can download the PCS1206DR0100ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of PCS1206DR0100ET?
Ohmite
