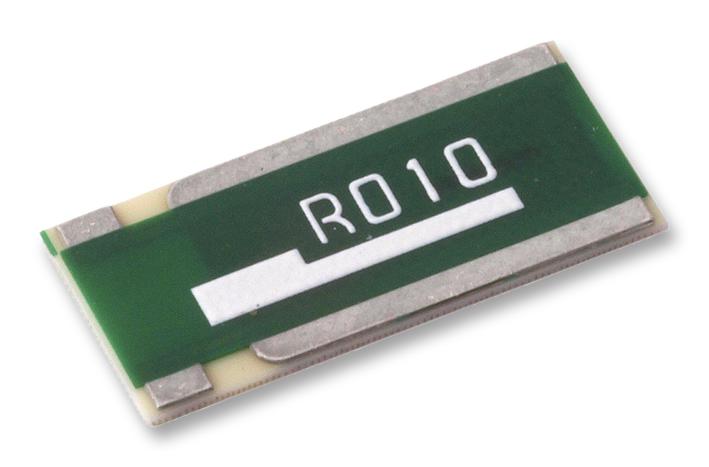

Ohmite FC4L32R050FER Current Sense Resistor
The FC4L Series Four Terminal Current Sense resistors feature metal foil construction for very stable resistance temperature coefficient, ideal for precision current measurement. Designed with industry-standard sizes, they support high heat resistance, low heat electromotive use, and automatic insertion. These resistors employ Ni-Cu-Mn alloy resistive elements with a built-in 4-terminal Kelvin design for accurate current sensing. Suitable for high-current applications, they operate over a temperature range of -55°C to +155°C, with features including solderability, moisture resistance, and endurance at elevated temperatures for reliable performance.
Ohmite FC4L32R050FER Current Sense Resistor Specifications:
- Power Resistance Rating: 1W, 2W, or 5W depending on model
- Resistance Range: 0.001Ω to 0.05Ω
- Tolerance: ±1%, ±2%, or ±5%
- TCR: +50 to +100 ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Max. Temperature for Rated Power: 70°C
- Rated Voltage: Calculated as Power x Resistance value, typically below 60V
- In-rush Current: Up to 100W rated current depending on model
- Solderability: 245°C for 3 ±0.5 sec, minimum 90% coverage
- Endurance at 70°C: 1000 hours at rated voltage with 1.0% maximum resistance change
- Moisture Resistance: 60°C ±2°C, 90-95% RH, 1000 hours
- Physical Dimensions: 0.126/3.20 mm x 0.063/1.60 mm (FC4L32), 0.251/6.40 mm x 0.126/3.20 mm (FC4L64), 0.433/11 mm x 0.197/5 mm (FC4L110)
- Weight: Ranges from approximately 0.0378g to 0.1096g depending on model
Buy the Ohmite Series FC4L Current Sense Resistor: FC4L32R050FER
Enhance your electronic projects with the Ohmite FC4L32R050FER current sense resistor, offering high stability, precise resistance measurement, and excellent heat resistance. Engineered with metal foil construction, this resistor guarantees reliable performance in high-temperature environments, making it ideal for power supplies, motor control, and measurement circuits. Its industry-standard size ensures easy integration into various designs. Purchase online today to benefit from quick delivery and excellent customer support, ensuring your project’s success with highly accurate and durable current sensing components.
Buy Ohmite FC4L32R050FER now and experience unmatched reliability and performance for precise current sensing in your electronic applications.
Frequently Asked Questions
Where can I buy Ohmite FC4L32R050FER?
You can click on the BUY or RFQ button to purchase FC4L32R050FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part FC4L32R050FER?
You can download the FC4L32R050FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of FC4L32R050FER?
Ohmite
