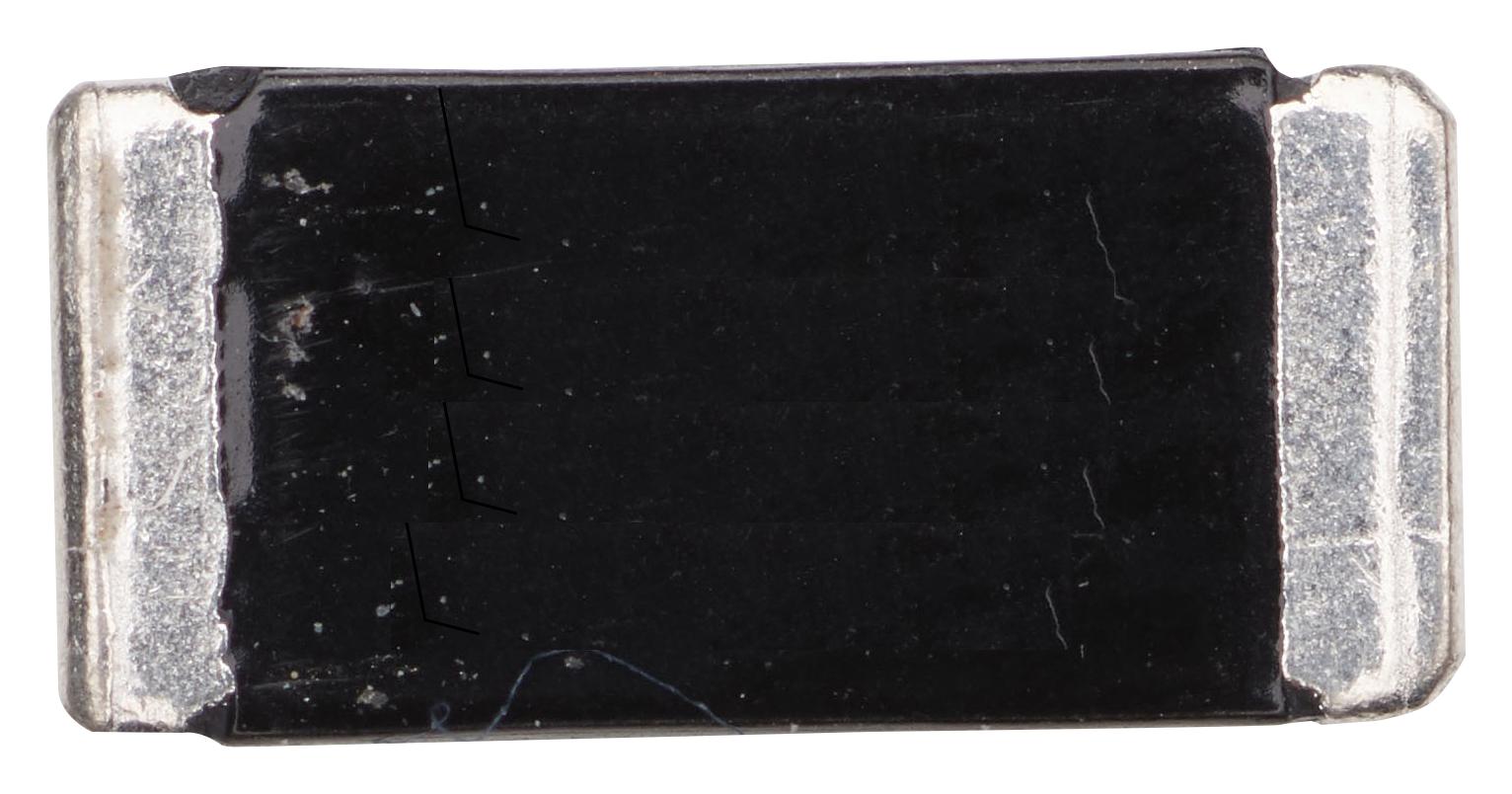

Ohmite PCS1206FR0010ET Low Resistance Chip Resistor
The PCS1206 series low resistance chip resistors offer precise resistance values down to 0.5mΩ, excellent stability, and low TCR of ±50ppm. they are RoHS compliant, halogen-free, and lead-free, suitable for high-precision current sensing and voltage division. These resistors support overload conditions and sustain operating temperatures from -55°C to +170°C. Various power ratings and resistance ranges enable flexible application in electronics requiring stable, long-term performance, with robust construction and high reliability for demanding industrial and automotive environments.
Ohmite PCS1206FR0010ET Low Resistance Chip Resistor Specifications:
- Resistance Range: 1mΩ to 500mΩ
- Power Rating: 1W, 2W, 4W depending on series
- Temperature Range: -55°C to +170°C
- TCR: ±50ppm
- Overload Current: 7-50A for PCS1206 series
- RoHS Compliance: Yes
- Lead-Free: Yes
- Material: MnCuSn, FeCrAl
- Soldering Temperature: 260°C for 10 seconds
- Pulse Power: 4x rated power for PCS1206
- Construction: Metal alloy plate, overcoat, nickel, tin plating
Buy the Buy Ohmite PCS1206FR0010ET Part Number PCS1206FR0010ET Online
Purchase the high-precision low resistance chip resistor PCS1206FR0010ET online today. Designed for circuits demanding ultra-low resistance, these resistors feature a resistance of 1mΩ, RoHS compliance, and lead-free construction. Their stable thermal characteristics and high overload current support robust performance in industrial, automotive, and sensitive electronic applications. With a temperature range from -55°C to +170°C, they ensure reliable long-term operation. Buy now to benefit from fast shipping and trusted quality for your electronic projects and manufacturing needs.
Get Ohmite PCS1206FR0010ET today—built for precision and long-lasting durability in high-temperature environments.
Frequently Asked Questions
Where can I buy Ohmite PCS1206FR0010ET?
You can click on the BUY or RFQ button to purchase PCS1206FR0010ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part PCS1206FR0010ET?
You can download the PCS1206FR0010ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of PCS1206FR0010ET?
Ohmite
