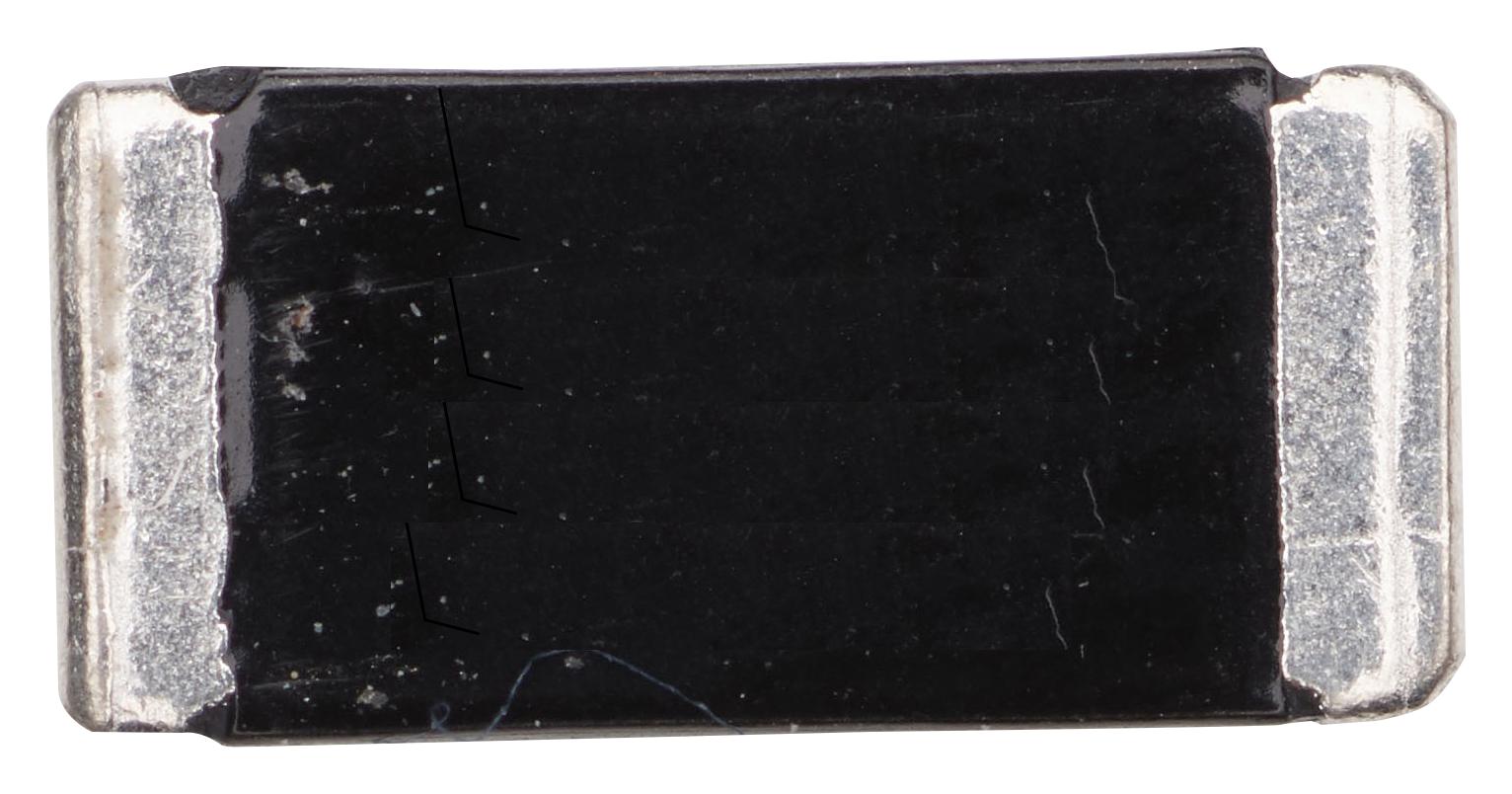

Ohmite PCS2512DR0500ET Low Resistance Chip Resistors
The PCS2512 series low resistance chip resistors offer high precision and stability, ideal for current sensing and voltage division in industrial electronics. These resistors feature a resistance range from 0.5mΩ to 450mΩ, with power ratings of 1W or 2W, and operate within a temperature range of -55°C to +170°C. They are RoHS compliant, halogen free, and available with AEC-Q200 qualification. Advanced construction includes MnCu, FeCrAl, and other alloys, ensuring excellent long-term stability, low TCR, and high overload capability for demanding industrial applications.
Ohmite PCS2512DR0500ET Low Resistance Chip Resistors Specifications:
- Resistance Range: 0.5mΩ to 450mΩ
- Power Ratings: 1W, 2W, 4W
- Maximum Operating Temperature: +170°C
- Operating Temperature Range: -55°C to +170°C
- Resistance Tolerance: ±1%, ±0.5%
- Material: MnCuSn, FeCrAl, other alloys
- RoHS compliant and halogen free
- Soldering Temperature: Peak 250°C for 10 sec, wave soldering peak 280°C
- Dielectric Withstanding Voltage: 500VAC for 1 min
Buy the Ohmite PCS2512 Low Resistance Chip Resistors – Reliable Current Sensing for Industrial Applications
Order Ohmite PCS2512 low resistance chip resistors online today for high-precision current sensing and voltage division in industrial electronics. These resistors feature low resistance values down to 0.5mΩ, power ratings up to 2W and 4W, and operate over a temperature range of -55°C to +170°C. RoHS compliant and halogen free, their construction ensures excellent stability, low TCR, and high overload capacity, making them ideal for demanding industrial and automation applications. Secure fast delivery and reliable performance on your order now.
Buy Ohmite PCS2512 low resistance chip resistors now and experience unmatched reliability, high stability, and excellent long-term performance in industrial settings.
Frequently Asked Questions
Where can I buy Ohmite PCS2512DR0500ET?
You can click on the BUY or RFQ button to purchase PCS2512DR0500ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part PCS2512DR0500ET?
You can download the PCS2512DR0500ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of PCS2512DR0500ET?
Ohmite
