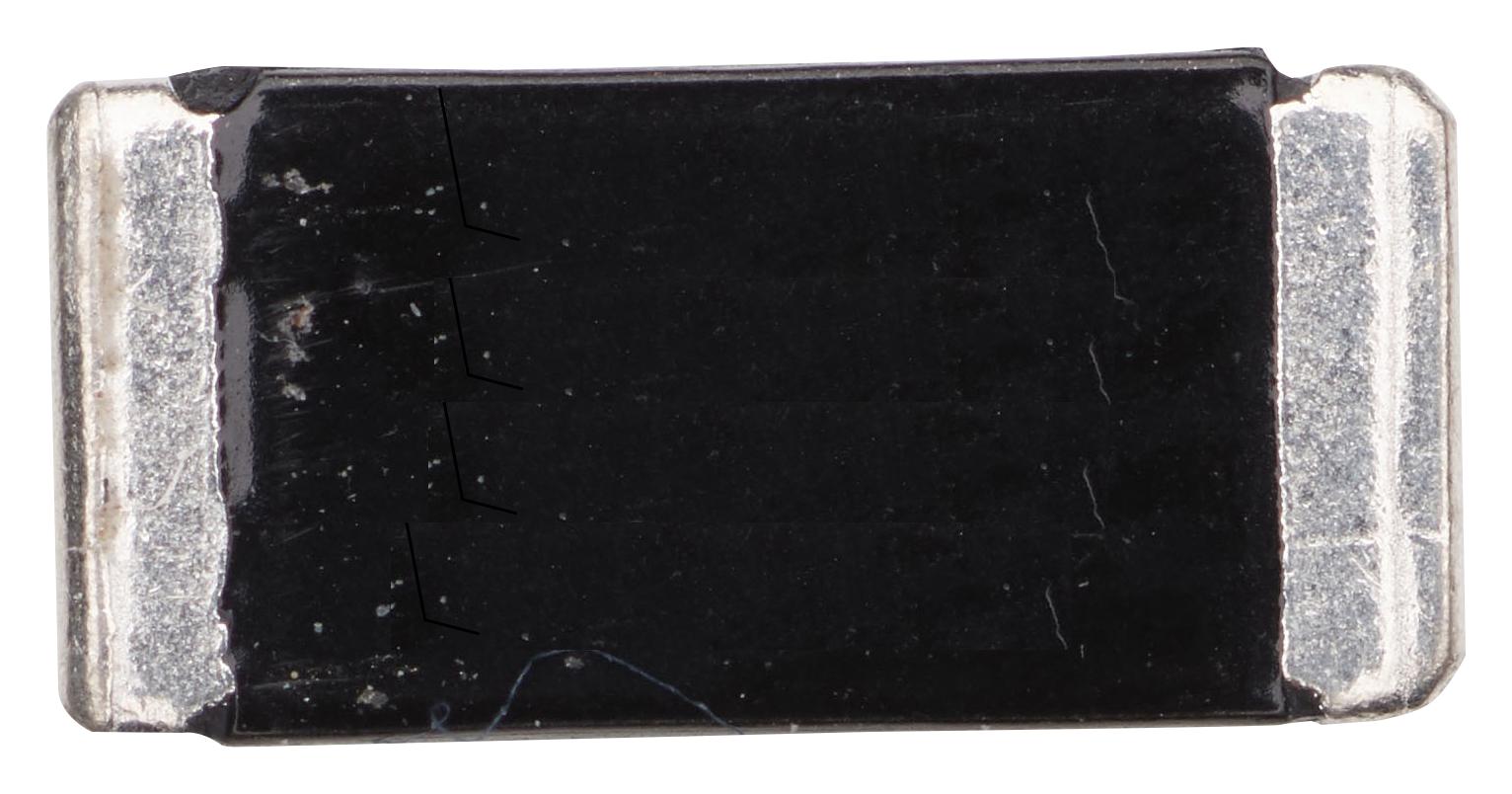

Ohmite PCS2512FR0050ET Low Resistance Chip Resistor
High precision low resistance chip resistor ideal for current sensing and voltage division applications. Features include resistance down to 0.5mΩ, low TCR of +50ppm, excellent stability, and RoHs compliance. Suitable for demanding environments with operating temperatures from -55°C to +170°C, and offers high overload, moisture resistance, and soldering durability. Available in various power ratings from 1W to 4W, with compact sizes ensuring reliable performance in industrial, automotive, and electronic circuits requiring precise resistance measurement.
Ohmite PCS2512FR0050ET Low Resistance Chip Resistor Specifications:
- Resistance Range: 0.5mΩ to 500mΩ
- Power Ratings: 1W, 2W, 4W
- Temperature Range: -55°C to +170°C
- Resistance Tolerance: ±1%, ±0.5%
- Rated Current: up to 141.42A depending on size
- Material: MnCuSn, FeCrAl
- Dimensions: PCS1206: 3.2 x 1.6 mm, PCS2512: 6.3 x 3.2 mm, PCS2728: 12 x 4 mm
- Overload Resistance: 4x rated power for PCS1206, 5x for PCS2512, 3x for PCS2728
- Operating Temp. Range: -55°C to +170°C
- Soldering: Peak temp 250°C for reflow, Wave soldering up to 300°C
- Humidity Resistance: 1,000 hrs at +85°C/85%RH
- Short Time Overload: 20-25% resistance change
- Storage Conditions: 25°C, humidity 60%
Buy the Ohmite Series Low Resistance Chip Resistors: PCS2512FR0050ET
Order the Ohmite PCS2512FR0050ET low resistance chip resistor online today for precise current sensing and voltage division. Designed for high stability, low resistance down to 0.5mΩ, and RoHs compliance, this component supports demanding electronic and industrial applications. Its robust construction withstands harsh environments with wide temperature ranges from -55°C to +170°C and high overload capacities. Easy to integrate, compact in size, and suitable for automated assembly, ensuring your circuit performs accurately and reliably over long periods. Purchase now and enhance your electronic designs with precision resistors from a trusted manufacturer.
Buy Ohmite PCS2512FR0050ET now and experience unmatched reliability and performance for precision current sensing and voltage division applications.
Frequently Asked Questions
Where can I buy Ohmite PCS2512FR0050ET?
You can click on the BUY or RFQ button to purchase PCS2512FR0050ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part PCS2512FR0050ET?
You can download the PCS2512FR0050ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of PCS2512FR0050ET?
Ohmite
